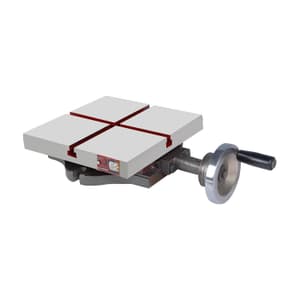

Apex 200 x 200 mm / 8 x 8 Inch Single Sliding Table With Calibrated Wheels, 708S-200x200
Roll over the image to zoom in
Key Features
- Product Type: Compound Table
- Weight: 12 kg
- Sizes (mm): 200 x 200 mm
- Size (Inches): 8 x 8 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹7,632 (Incl. of all taxes)
₹6,468 + ₹1,164 GST (18%)
MRP was MRP ₹9,951
Save 35%
5 Business Days
1
–
Download Product LeafletNot available
Download Apex CatalogueNot available
Download Apex CatalogueNot available
Highlights
- The T-Slots are machined from Solid.
- Equipped with two axis positioning.
- Dovetailed slides have adjustable steel gibs to compensate for wear.
- The surface table can swivel all around and 0° is marked to show the angular movement.
- The base has bolt slots for machine mounting.
Application:
-
These precision built standard slide tables are essential for accurate boring drilling, grinding, and milling operations.
Construction:
- Casting are the close Grey Iron dully stress relieved accurately machined and the ground surface provides tolerance well within 0.01 MM / 100 MM.
- Precision ACME feed screw is running in a hot-stamped phosphor Bronze Nut thrust color for smooth operation and minimum backlash.
- Single is one-way travel only.
Please Note that Products may differ eg. color, size from the product Image displayed on the website. Kindly check the specifications provided to make a better purchase decision.
Specifications
| Sizes (mm) | 200 x 200 mm |
|---|---|
| Size (Inches) | 8 x 8 inch |
| Height Overall (mm) | 62 mm |
| Length Overall (mm) | 350 mm |
| Travel Bothways (mm) | Single |
| T-Slots Size (mm) | 10 mm |
| 708 Jaws Width (in mm) | 85 mm |
| 708 Jaws Depth (in mm) | 45 mm |
| Wheel Graduation (inches) | .001 inch |
| Finish | Amazon Green |
