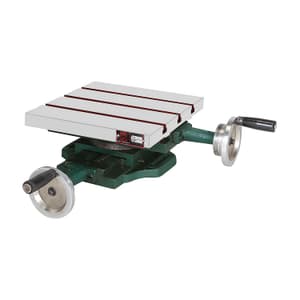

Apex 300 x 300 mm / 12 x 12 Inch Compound Sliding Table With Calibrated Wheels & Swivel Graduated Base, 707T-300x300

• The T-Slots are machined from Solid.
• Equipped with two-axis positioning.
• Dovetailed slides have adjustable steel gibs to compensate for wear.
• The surface table can swivel all around and 0° is marked to show the angular movement.
• The base has bolt slots for machine mounting.

Application:

• These precision built standard slide tables are essential for accurate boring drilling, grinding, and milling operations.

Construction:

• Casting is the close Grey Iron dully stress relieved accurately machined and the ground surface provides tolerance well within 0.01 MM / 100 MM.
• Precision ACME feed screw is running in a hot-stamped phosphor Bronze Nut thrust color for smooth operation and the minimum backlashes.
• The top surface of the table has two equally spaced cross T-Slots.
