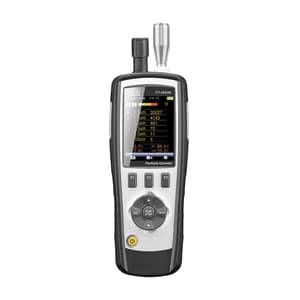

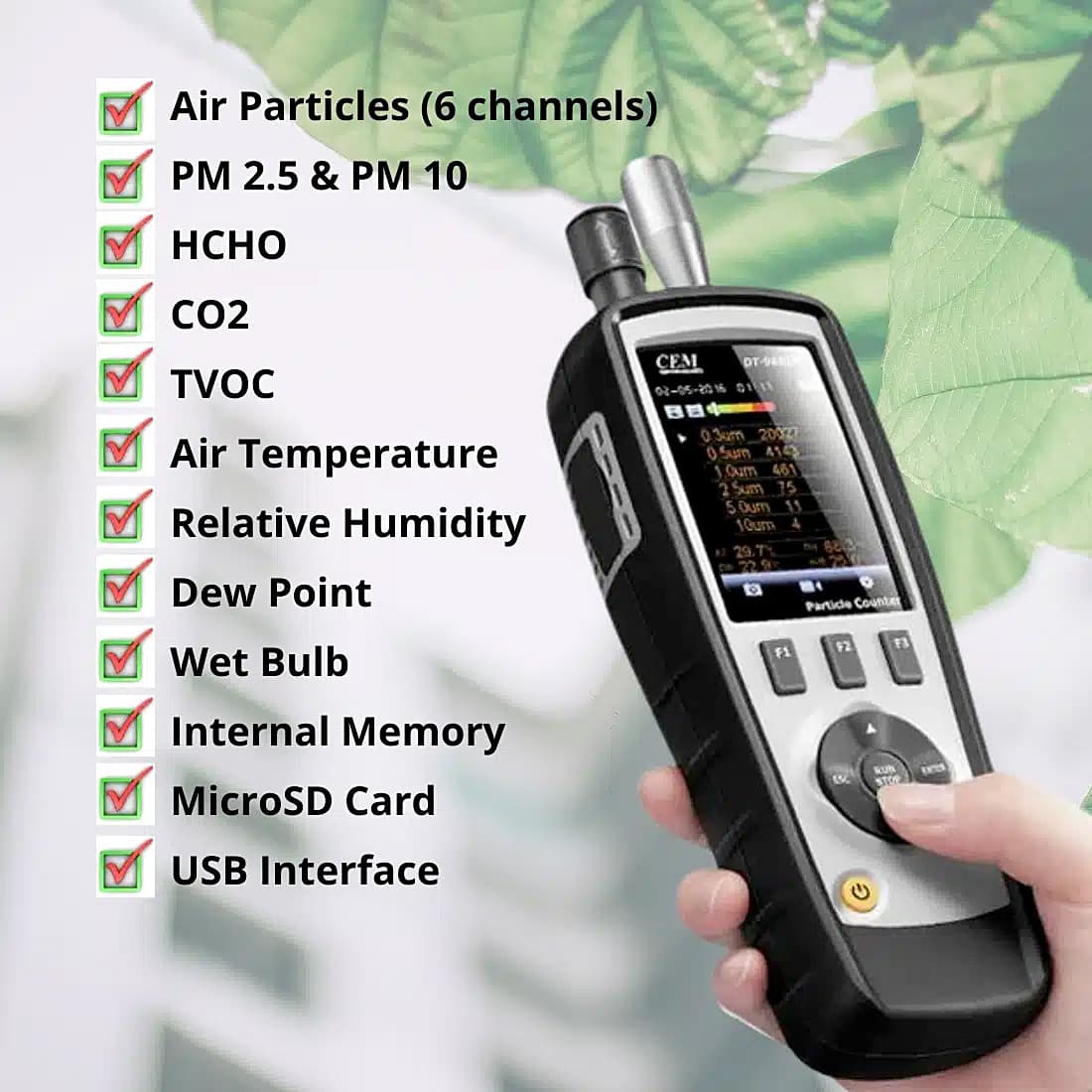

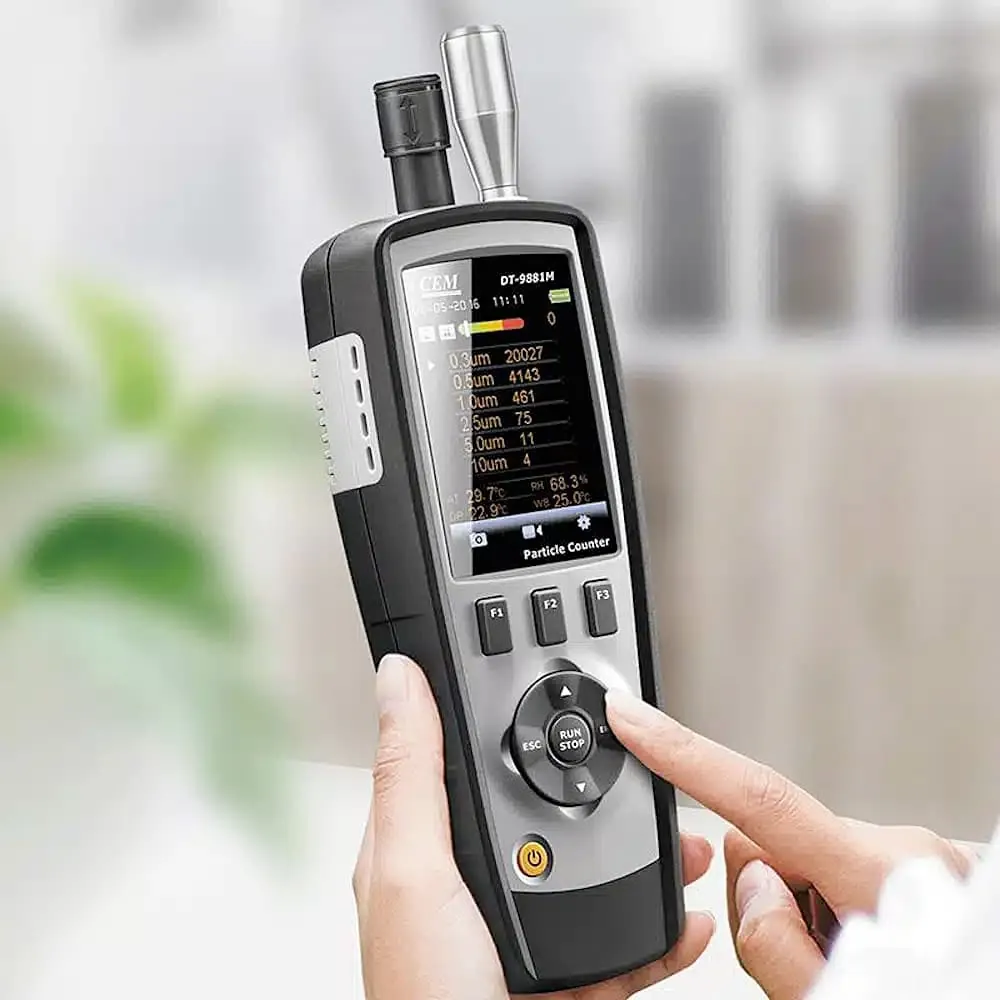

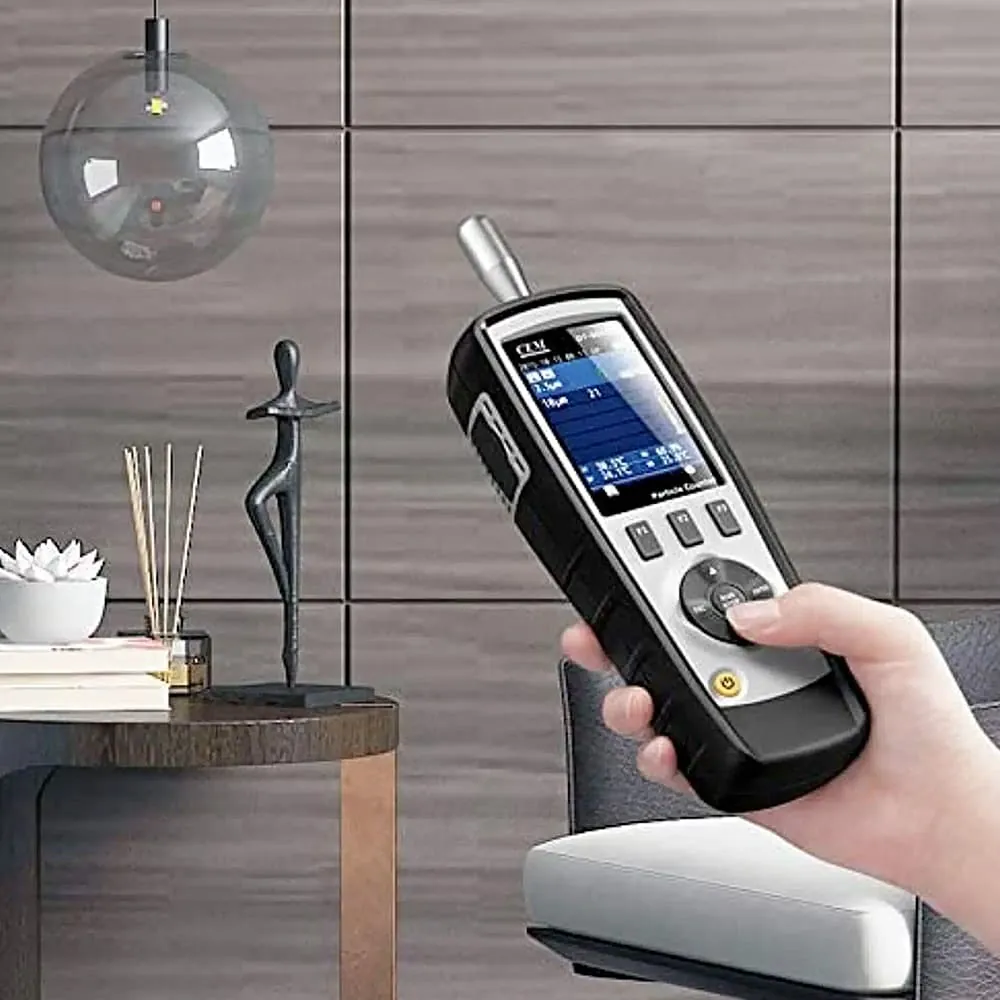

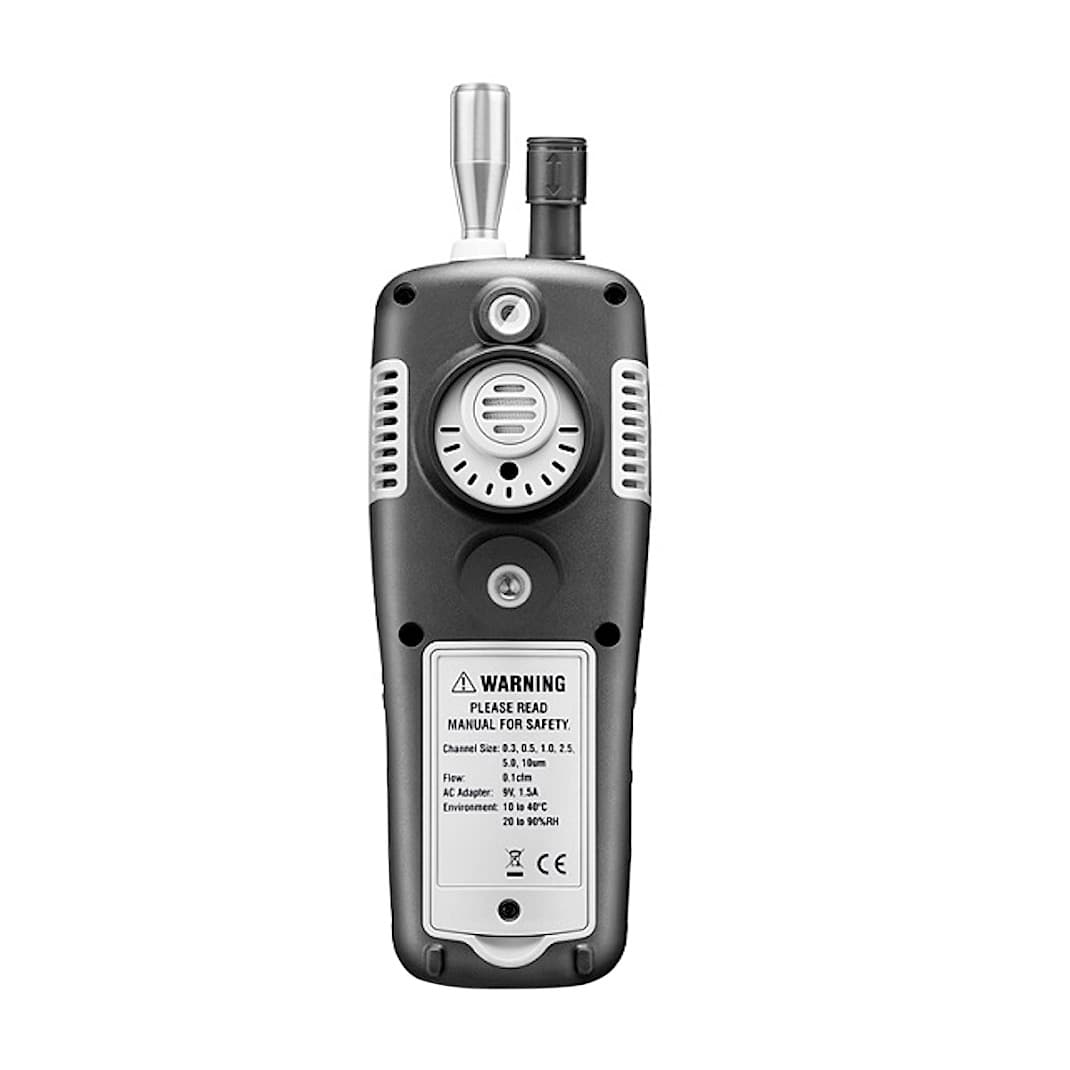

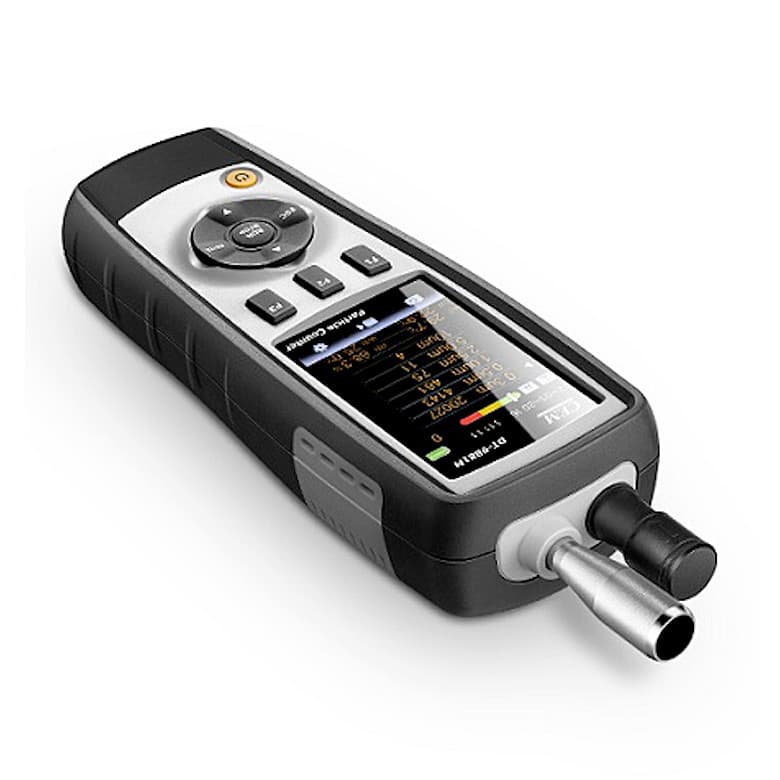

CEM 6-In-1 Air Particle Counter With Multi Gas Analyser, DT-9883M
Roll over the image to zoom in
Key Features
- Product Type: Particle Counters
- Display: TFT LCD Display
- Video Recording: 3GP mode
- PC Interface: USB Interface
- HCHO Range: 0.01 to 5 PPM
- TVOC Range: 0.01 to 9.99PPM
- Power Source: Battery Operated
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,38,276 (Incl. of all taxes)
₹1,17,183 + ₹21,093 GST (18%)
MRP was MRP ₹1,72,328
Save 32%
5 Business Days
1
90271000
Download CEM CatalogueNot available
Highlights
CEM DT-9883M Air Particle Counter + Gas Detector provides fast, easy, and accurate readings for particle count. It can measure Mass Concentration, GAS Formaldehyde (HCHO), Carbon Dioxide (CO2), TVOC detection, Air Temperature & Relative Humidity, and most surface temperature measurements. It has many functions. It is possible to determine the number of particles up to the size of 0.3, 2.5, and 10 µm. In addition to measuring the particles of fine dust, it can also measure PM 2.5 and PM 10 mass concentrations. The mass concentration of fine dust determines the weight of the particles in one cubic meter.
The CEM DT-9883M can also determine the Formaldehyde content in PPM. During this HCHO measurement, the temperature, the ambient humidity and the dew point are also determined and displayed. It also features internal Data Storage and it therefore makes it possible to evaluate all measured values after a series of measurements. It is the ideal instrument for environmental safety and energy-saving surveys.
Features:
- Measures suspended particle concentration in the air of the weight method (PM2.5/PM10)
- 2.8″ TFT 320×240 pixels Color LCD display
- Images(JPEG) & Video(3GP)
- Simultaneously measure and display 6 channel of particle sizes, measure particle size down to 0.3 μm
- GAS Formaldehyde (HCHO) & Carbon Dioxide (CO²) detectors
- Air temperature and humidity, Dew point & Wet bulb temperature
- Max, Min, DIF, AVG record, Date/time setup controls, High and low alarm
- Adjustable emissivity & Trigger lock
- MicroSD (MAX. use 8GB) memory card, USB interface
- Auto Power Off
- Selectable sample time, count data, programmable delay
- Store 5000 records of date, time, counts, relative humidity, temperature, sample volumes, alarms and location label
- Language selection English, Chinese, French, German, Spanish
Standard:
- ASTM F649-01
- ASTM F328-98
- EN 61326
- JIS B9921
- GB 16292

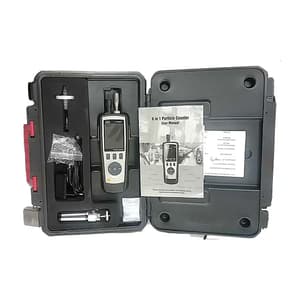

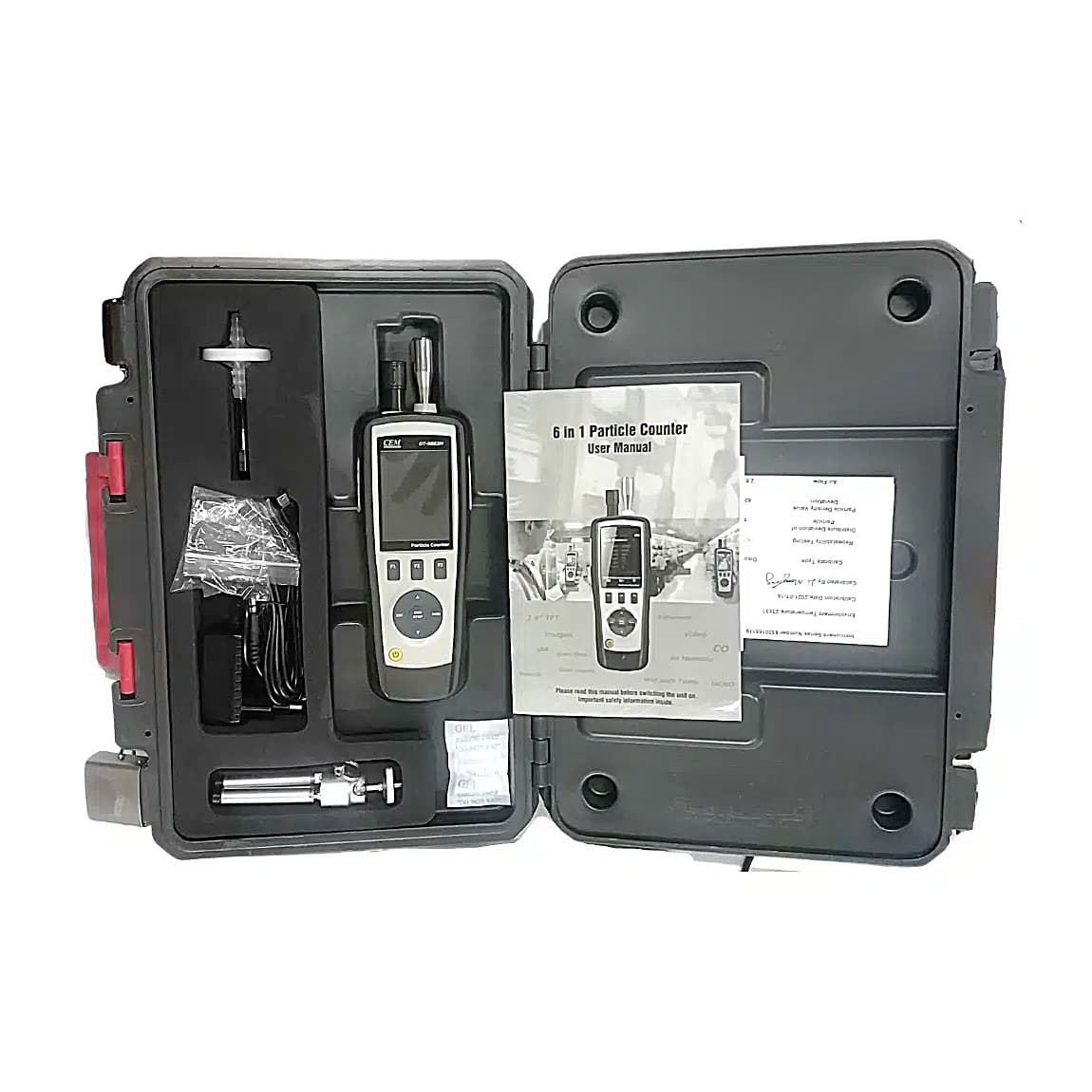

Package Content:
- Particle Counter
- User Manual
- USB Cable
- Zero Count Filter
- 7.4 Li-ion Battery
- AC Adapter
- Tripod
- Carrying case
- Manufacturer's Calibration Test Report
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | TFT LCD Display |
|---|---|
| Image Storage Format | JPEG Format |
| Video Recording | 3GP mode |
| PC Interface | USB Interface |
| HCHO Range | 0.01 to 5 PPM |
| HCHO Accuracy | ±5% F.S. |
| HCHO Resolution | 0.01ppm |
| TVOC Range | 0.01 to 9.99PPM |
| TVOC Resolution | 0.01ppm |
| TVOC Accuracy | ±5% F.S. |
| CO2 Measuring Range | 0 to 9999PPM |
| CO2 Measuring Accuracy | ±5%±75 ppm |
| CO2 Measuring Resolution | 1ppm |
| Mass Particle Counter | PM 10: 0 to 2000μg/m3, PM 2.5: 0 to 2000μg/m3 |
| Air Temperature Range | 0°C to 50°C |
| Air Temperature Accuracy | ±0.5°C (0.9°F) 10°C to 40°C, ±1.0°C (1.8°F) others |
| Dewpoint Temperature Range | 0°C to 50°C |
| Dew-point Temperature Accuracy | ±0.5°C for 10°C to 40°C, ±1.0°C for others |
| Relative Humidity Range | 0 to 100% RH |
| Relative Humidity Accuracy | ±3.5% RH 20 % to 40%, ±3.5% RH 60 % to 80%, ±3%RH 40% to 60%, ±5% RH 0 to 20%, ±5% RH 80% to 100% |
| Power Source | Battery Operated |
| Battery Type | 7.4 Li-ion Battery |
| Colour | Grey |
| Flow Rate | 0.1ft3 (2.83L/min) |
| Air Particle Channels | 0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm |
| Counting Efficiency | 100% for particles >0.45μm, 50% at 0.3μm |
| Coincidence Loss | 5% at 2000000 particles per ft3 |
| Count Modes | Concentration, Cumulative, Differential |
| Memory and Storage | External MicroSD Card 8GB, Store 5000 records |
