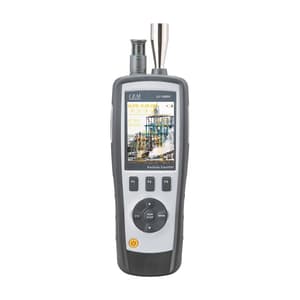

CEM Air Particle Counter (Measure Up To 6 Channels Of Particle Sizes), DT-9880
Roll over the image to zoom in
Key Features
- Product Type: Particle Counters
- Channels: 0.3,0.5,1.0,2.5,5.0,10um
- Flow Rate: 0.1ft3(2.83L/min)
- Count Modes: Cumulative, Differential, Concentration
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹95,325 (Incl. of all taxes)
₹80,784 + ₹14,541 GST (18%)
MRP was MRP ₹1,18,800
Save 32%
5 Business Days
1
90271000
Download CEM CatalogueNot available
Highlights
Particle Counter with unique 2.8”color TFT LCD display and built-in camera for capturing videos and photos that are stored onto internal memory or a micro SD card, for viewing on PC, providing fast, easy and accurate readings for particle counter, Air Temperature, Relative Humidity, Dew Point & Wet Bulb Temperature and , Gas Detection (DT-9881 only).
The DT-9880/DT-9881 can measure up to 6 channels of particle sizes Use the included software to generate reports with videos, photos, and data points. DT-9881 can also detect and measure the concentration of HCHO (Methanal) Gas and CO (Carbon Mono-Oxide) Gas.
Features:
- Simultaneously measure and display 6 channels of particle sizes (down to 0.3 μm), Air Temperature, Humidity, Dew Point and Wet Bulb
- 8" TFT Color LCD display
- Built-in 320x240-pixel camera takes videos (3GP) and photo images (JPEG) and records them in internal 74MB memory
- Stores 5000 records (date, time, counts, humidity, temperature, sample volumes, and location label) and 20 minutes of video
- Selectable sample time, count data, and Programmable delay
- Air Temperature and Humidity, Dew Point & Wet Bulb Temperature
- Max, Min, DIF, AVG record, Date/time setup controls
- Auto Power Off
- Language selection: English, French, German, Spanish

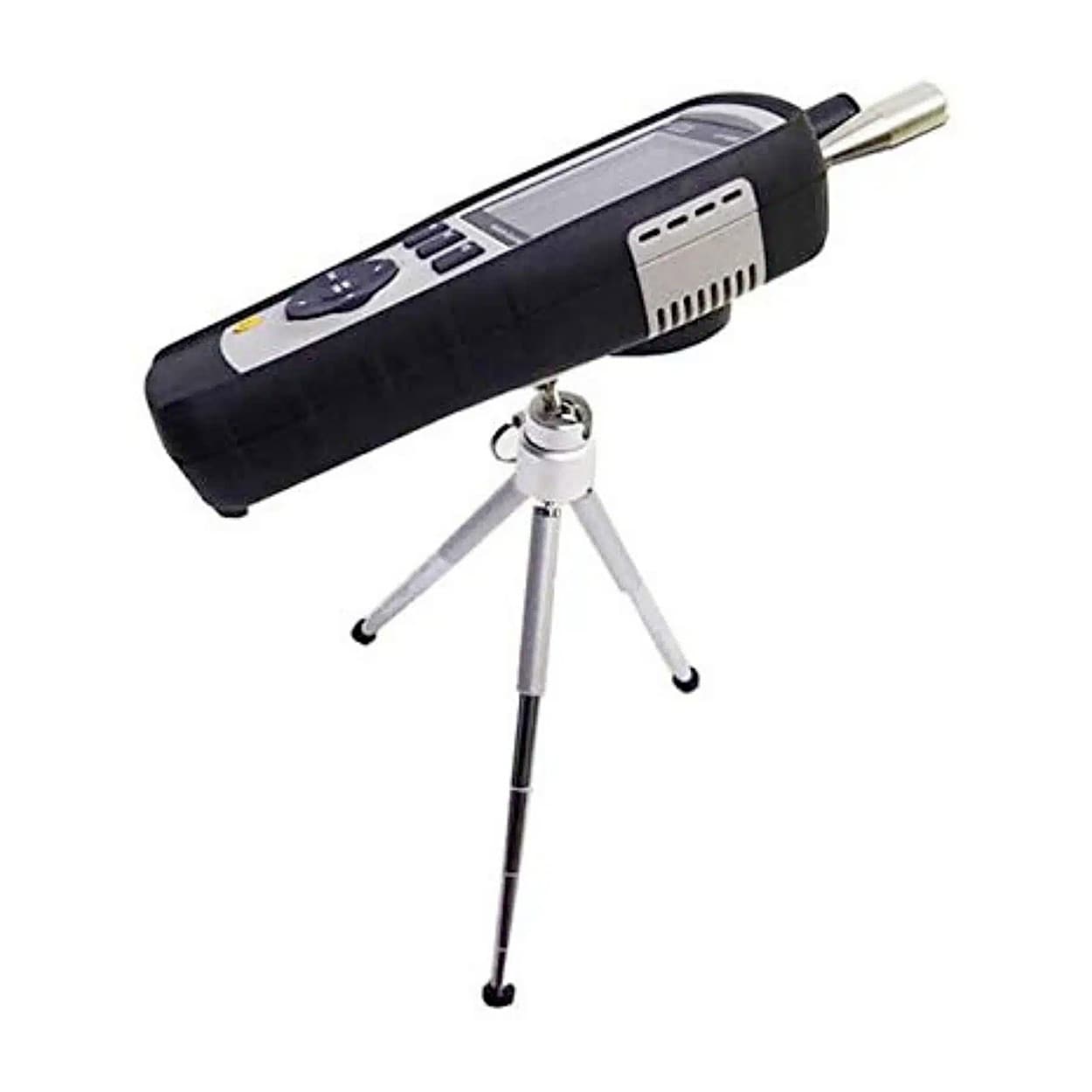

- Tripod mount for continuous recording
- Mini-USB port connection
- Micro SD card slot in battery compartment (memory card not included; max size 8GB)

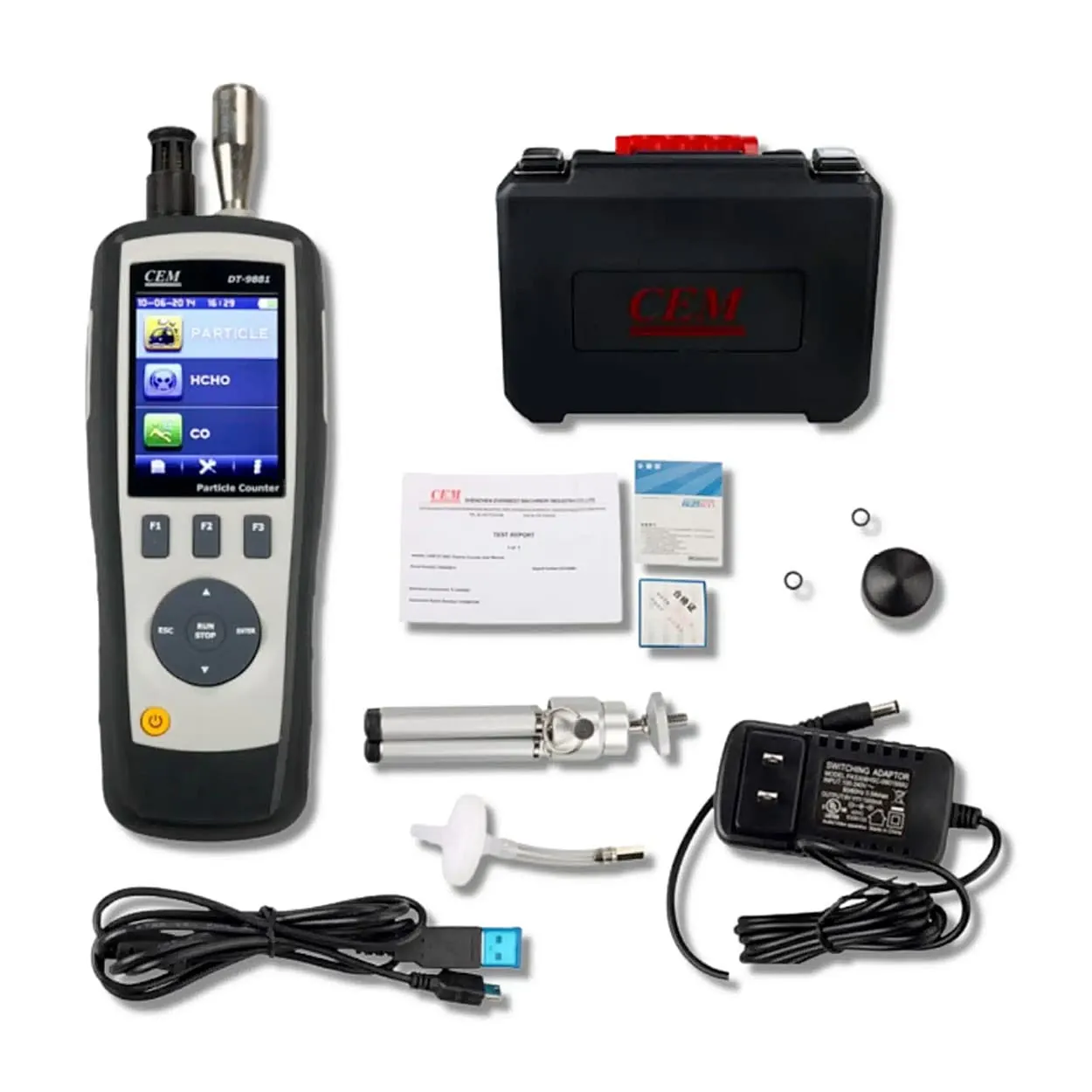

Package Content:
- NiMH Battery
- Universal Adaptor
- Instruction Manual
- Tripod Stand
- Carrying Case
Specification:
| Air temperature Accuracy | ±0.5°C (0.9°F) 10°C to 40°C |
| ±1.0°C (1.8°F) others | |
| Dew-Point temp. Accuracy | ±0.5°C(0.9°F) 10°C to 40°C |
| ±1.0°C(1.8°F) others | |
| Relative Humidity Accuracy | ±3%RH 40% to 60% |
| ±3.5%RH 20% to 40% and 60% to 80% | |
| ±5%RH 0% to 20% and 80% to 100% |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Channels | 0.3,0.5,1.0,2.5,5.0,10um |
|---|---|
| Flow Rate | 0.1ft3(2.83L/min) |
| Counting Efficiency | 50% @ 0.3 μm; 100 % for particles > 0.45 μm |
| Coincidence Loss | 5% at 2,000,000 particles per ft3 |
| Data Storage | 5000 sample records (Micro-SD card) |
| Count Modes | Cumulative, Differential, Concentration |
| Air Temperature Range | 0°C to 50°C (32°F to 122°F) |
| Dew-point Temperature Range | 0°C to 50°C (32°F to 122°F) |
| Relative Humidity Range | 0 to 100%RH |
| Operating Temperature | 0°C to 50°C (32°F to122°F) |
| Storage Temperature | -10°C to 60°C (14°F to 140°F) |
| Relative Humidity | 10 to 90%RH non-condensing |
| Battery | Rechargeable Battery |
| Battery Life | About 4 Hours Continuous Use |
| Battery Charge Time | About 2 Hours With AC Adapter |
