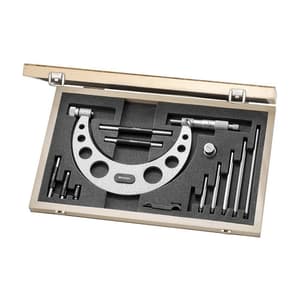

Facom 0 - 150 mm Exterior Micrometer Set With Extension (1/100th mm Accuracy), 807C
Roll over the image to zoom in
Key Features
- Product Type: Micrometer Sets
- Weight: 1.8 kg
- Range (mm): 0 - 150 mm
- Accuracy: 0.01 mm
- Drum: Ø 18 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹45,770 (Incl. of all taxes)
₹38,788 + ₹6,982 GST (18%)
5 Business Days
1
9017
Download Product LeafletNot available
Download Facom CatalogueNot available
Download Facom CatalogueNot available
Highlights
- Ratchet drum with torque limiter.
- Force applied on the part included strictly between 5 and 10 N.m.
- Interchangeable fixed plunger tip.
- Supplied with a set of 5 extensions.
- Supplied with the 5 calibration shims.
- Isothermal pads.
- Plunger tip lock.
- Supplied in wood case.
- Supplied with compliance certificate.
Calibration Shims:
- 807.CALE25: 25 mm ± 1.5 µm.
- 807.CALE50: 50 mm ± 2 µm.
- 807.CALE75: 75 mm ± 2.5 µm.
- 807.CALE100: 100 mm ± 3 µm.
- 807.CALE125: 125 mm ± 3.5 µm.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (mm) | 0 - 150 mm |
|---|---|
| Accuracy (1/100th) | 0.01 mm |
| Accuracy | 0.01 mm |
| Drum | Ø 18 mm |
| Carbide plunger tip | Ø 6.5 mm |
| Standards | NF EN ISO 3611, ISO 3611, DIN 863 |
