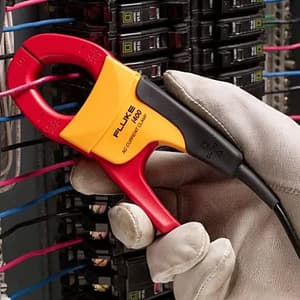

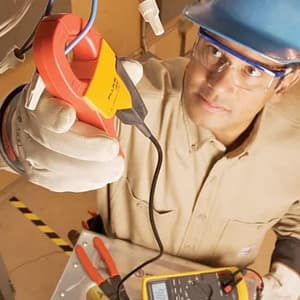

Fluke I 400 AC Current Clamp
Roll over the image to zoom in
Key Features
- Product Type: Probes & Accessories
- Useable frequency: 5 Hz - 20 kHz
- Output level(s): 1 mA/A
- Safety: CAT IV 600 V, CAT III, 1000 V
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹23,332 (Incl. of all taxes)
₹19,773 + ₹3,559 GST (18%)
MRP was MRP ₹29,078
Save 32%
Out of Stock
12 Business Days
1
38220090
Download Product LeafletNot available
Download Fluke CatalogueNot available
Download Fluke CatalogueNot available
Highlights
The Fluke i400 AC Current Clamp is a high-safety current clamp for digital multimeters. The current clamp provides accurate current measurements without breaking electric circuits, helping you take measurements safely with industry-standard safety ratings.
Features
- Companion to your DMM to measure up to 400 A AC
- 1 mA/Amp output guarantees easy reading on your meter
- Only current clamp available with a CAT IV 600 V / CAT III 1000 V safety rating
- Specially designed to offer maximum utility in a very compact shape
- Take accurate current readings without breaking the circuit
- Soft non-slippery overmold handle prevents from accidentally touching live wiring
- Max. conductor Ø 32 mm.
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Nominal current range | 400 A |
|---|---|
| Continuous current range | 1 A - 400 A |
| Maximum non-destructive current | 1000 A |
| Lowest measurable current | 1 A |
| Basic accuracy | 2% + 0.06 A (45-400 Hz) (% reading + floorspec) |
| Useable frequency | 5 Hz - 20 kHz |
| Output level(s) | 1 mA/A |
| Safety | CAT IV 600 V, CAT III, 1000 V |
| Maximum voltage | 1000 V AC rms from earth to ground, in compliance with EN61010 |
| Maximum conductor diameter | 32 mm (1.25 in) |
| Maximum conductor size (busbar) | 750 MCM |
| Output cable length | 1.5 m (59 in) |
| Shrouded banana plugs | Yes |
| Warranty | 1 year |
