Fluke i2500-18 iFlex 2500A Flexible Current Probes
Roll over the image to zoom in
Key Features
- Product Type: Probes & Accessories
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹13,635 (Incl. of all taxes)
₹11,555 + ₹2,080 GST (18%)
MRP was MRP ₹16,992
Save 32%
3 Business Days
1
90303900
Download Fluke CatalogueNot available
Highlights

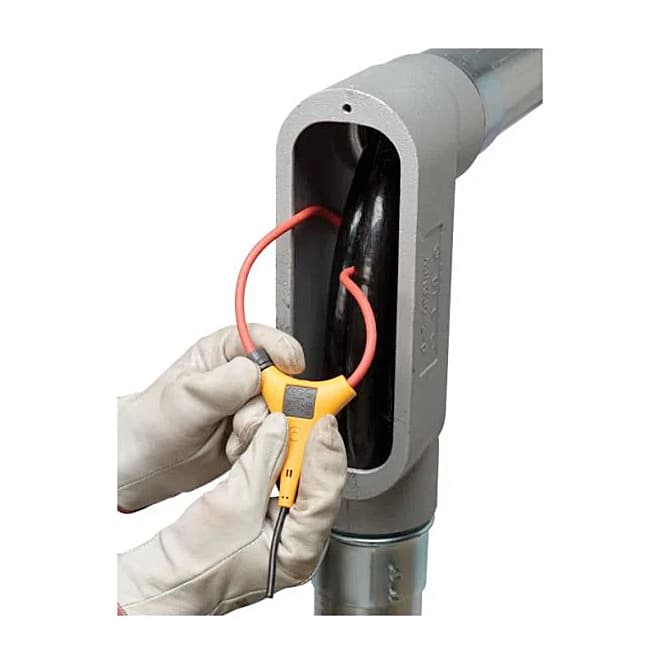

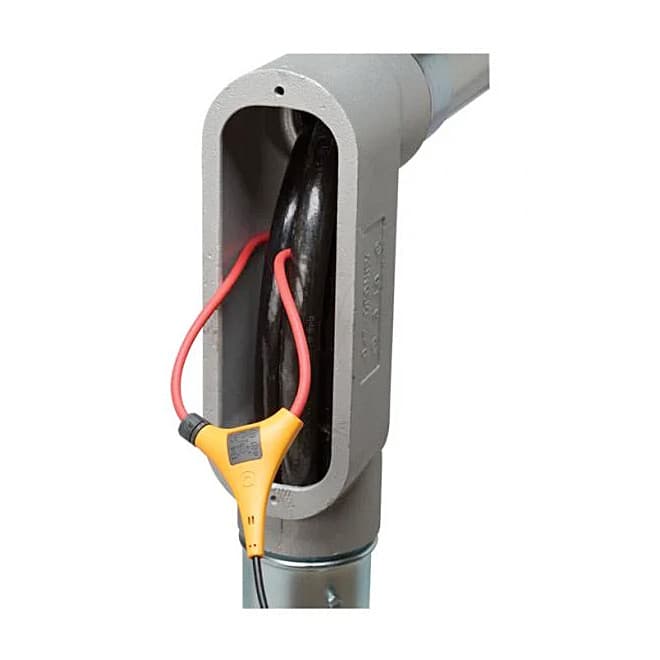

The Fluke iFlex® flexible current probes expand the measurement range of the select Fluke meters to 2500 A AC while providing the ultimate measurement flexibility. The iFlex® probes connect directly to the meter, displaying current measurements without error-prone scaling factors.
The 1.8 m (6 ft) cord allows separation between the measurement location and the clamp meter making it easier to view the display. The large loop size and thin cross-section allow measurement of awkward-sized conductors and improved wire access in crowded spaces. Available in 25 cm (10 in) and 45 cm (18 in) sizes.
Features:
- Expands the Measurement Range to 2500 A AC while Providing Increased Display Flexibility, Ability to Measure Awkward Sized Conductors, and Improved Wire Access
- CAT IV 600 V, CAT III 1000 V
- 7.5 mm Coil Diameter Allows Measurement in Tight Spaces
- Ergonomic Design Allows Easy Operation with One Hand
- 1.8 m (6 ft) Cable
- Safety Conformance: IEC 61010-2-032 CAT III 1000 V / CAT IV 600 V
- Three-Year Warranty.
Specifications:
| Range | Resolution | Accuracy | |
| AC Current1 | 2500 A | 0.1 A | 3% ± 5 digits2 |
| Frequency1 | 500 Hz | 0.1 Hz | 0.5% ± 5 digits |
| External magnetic field rejection (with cable >10 cm from the coupling) |
40 dB | ||
| Inrush1 | |||
| Safety rating | CAT III 1000 V, CAT IV 600 V | ||
| 1. When used with compatible Fluke meter. Accuracy stated includes probe and meter accuracy. 2. For position accuracy at non-optimum positions, see Position sensitivity specifications table “A” |
|||
| Position Sensitivity Specifications | |||
| Distance from Optimum | i2500-18 | Additional iFlex® Error | |
| A | 1.4 in (35.6 mm) | ±0.5% | |
| B | 2.0 in (50.8 mm) | ±1.0% | |
| C | 2.5 in (63.5 mm) | ±2.0% | |
| Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature. |
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
No specifications available for this product.
