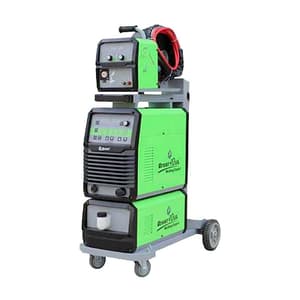

Great-Yuva MIG/MAG/MMA / 3 Phase Double Pulse Synergic Welding Machine With Inbulit Water Cooling Unit, YUVA-DP500PR
Roll over the image to zoom in
Key Features
- Product Type: MIG Welding Machine
- Weight: 118 kg
- Supply Voltage: 370 - 460 V
- Phase: 3 Phase
- Rated Input Voltage: 3P AC 415V + 10%
- Frequency (Hz): 50/60
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,69,678 (Incl. of all taxes)
₹2,28,541 + ₹41,137 GST (18%)
MRP was MRP ₹3,68,615
Save 38%
Out of Stock
5 Business Days
1
–
Download Product LeafletNot available
Download Great-Yuva CatalogueNot available
Download Great-Yuva CatalogueNot available
Highlights
- Simple and friendly man-machine interface.
- Built-in welding expert database within system, automatic intelligent combination of parameter,can store 100 sets of customized defination parameters.
- It has inbuilt water cooling unit.

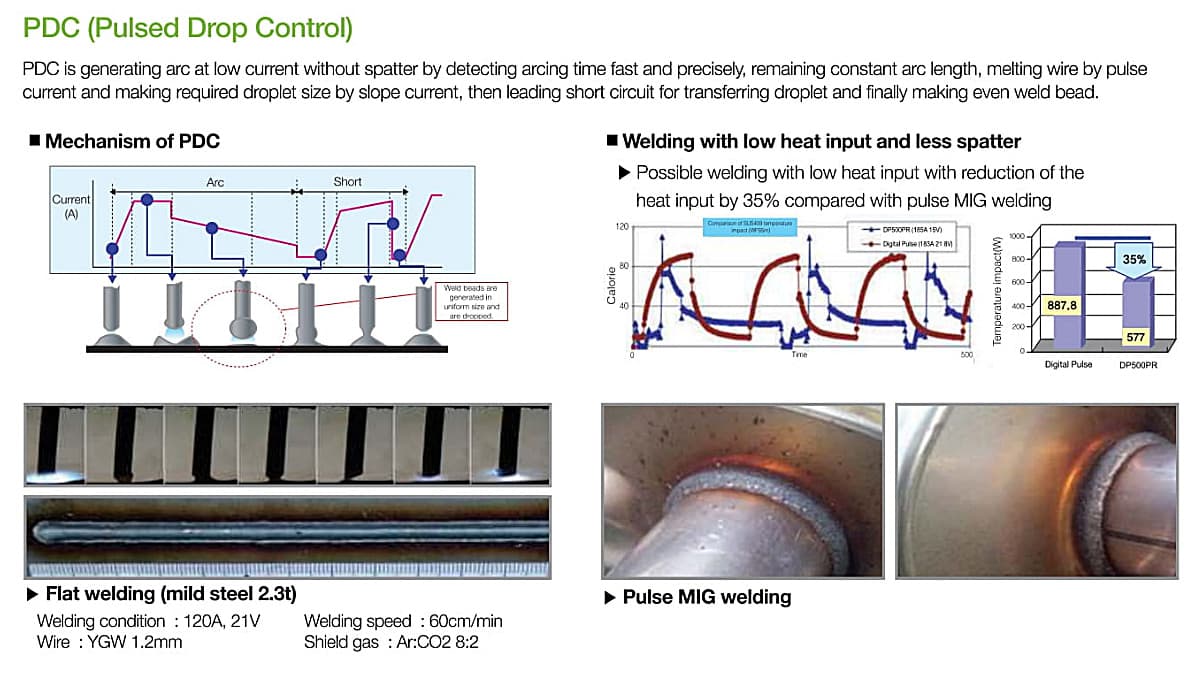

- The all-in-one digital system, which implements the overfinewelding of the droplets.
- The digital communication interface of the domestic general standard, the realization of the seamless integration with the robot.
- It has many kinds of safely features including flow, overpressure, undervoltage, heat protection and selfprotection.
- Enhanced double pulse function, wirefeeding speed and the ouput energy toghter.
- One machine for multi metal welding like Carbon Steel, Stainless Steel, Aluminum Bronze, Silicon Bronze, Aluminum Silicone, Aluminum Magnesium, Aluminum, Flux Cored Carbon Steel, Flux Cored Stainless Steel etc.
- Manual welding, improve arc DC TIG welding.carbon arc air gouging function etc.
- Application industry: high-speed trains, pressure vessel, car modification, yacht,high voltage switch, air separation, military industry, aerospace etc.
 |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Supply Voltage | 370 - 460 V |
|---|---|
| Phase | 3 Phase |
| Rated Input Voltage | 3P AC 415V + 10% |
| Frequency (Hz) | 50/60 |
| Rated Input Capacity (KVA) | MIG 25, MMA 25 |
| Rated Input Current (A) | 35 |
| No Load Voltage (V) | 106 |
| Rated Output Current (A) | 500 |
| Rated Output Voltage (V) | MIG 14-50 |
| Duty Cycle (%) | 70% |
| Rated Output Current Range (A) | 20 - 500 |
| Insulation Class | H |
| Case Protection Class | IP21S |
| Overall Dimensions (mm) | 1004 x 650 x 1470 |
| Suitable Wire | 1.0/1.2/1.6 |
| Wire Speeding Speed (m/min) | 3-24 |
| Gas Flow Rate ()L/min) | 15-25 |
