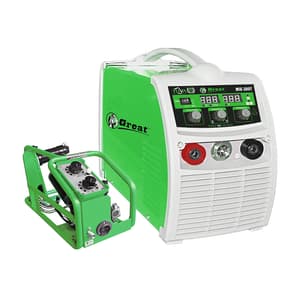

Great-Yuva MIG/MAG/MMA 300 AMPS / 1,2 & 3 Phase IGBT Based Inverter Welding Machine, YMIG-300T
Roll over the image to zoom in
Key Features
- Product Type: MIG Welding Machine
- Weight: 17 kg
- Phase: 1, 2 & 3 Phase
- Rated Input Voltage: 220V 1P/380V 2P, 3P
- Frequency (Hz): 50/60
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹85,268 (Incl. of all taxes)
₹72,261 + ₹13,007 GST (18%)
MRP was MRP ₹1,16,550
Save 38%
5 Business Days
1
–
Download Product LeafletNot available
Download Great-Yuva CatalogueNot available
Download Great-Yuva CatalogueNot available
Highlights
- With good protection of under voltage, over voltage and over current, it makes machine safe and reliable.
- Pre-set precise digital current data, easy operation.
- Double IGBt high Power Module,High working efficiency and energy saving.
- With CC/CV Function one Machine with MIG/MMA/ Lift TIG.
- With 2T/4T working mode, convenient operation.
- High Voltage Slow Wire Feeding Arc Starting, No Explode Wire Removing Tip Ball at Arc Ending.
- Independent adjust arc ending data, easier operation.
- With three proof industry design, using life long, working stable and reliable in kinds of adverse circumstances.
- Inbuilt High frequency arc start. low consumption of Tungsten Electrode.
- 1 Year Repair Warranty (Except for fan, connectors, display, switch & knobs).
- With Replacement Warranty.
Accesories Includes:
- Wire Feeder
- Welding Torch.
- Earthing Cable assembly.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Phase | 1, 2 & 3 Phase |
|---|---|
| Rated Input Voltage | 220V 1P/380V 2P, 3P |
| Frequency (Hz) | 50/60 |
| Rated Input Capacity (KVA) | MMA: 9.8 , MIG: 8.7 |
| Rated input Current (A) | MMA: 21/44 , MIG: 17/40 |
| Output Voltage (V) | MMA: 21-30.8 , MIG: 17-27.5 |
| Duty Cycle (%) | 60% |
| Output Current Range | MMA: 15-300 , MIG: 60-300 |
| Insulation | H |
| Case Protection Degree | IP21S |
| Rated Output Current (A) | 300 |
| Overall Dimensions (mm) | 495 x 225 x 395 |
| No Load Voltage (V) | MMA: 60 , MIG: 60 |
| Welding Thickness (mm) | 0.6 - 6 mm |
| Suitable Wire | 0.8/1.0 |
| Wire Feeding Speed (m/min) | 3-19 |
| Gas Flow Rate (L/min) | 5-15 |
