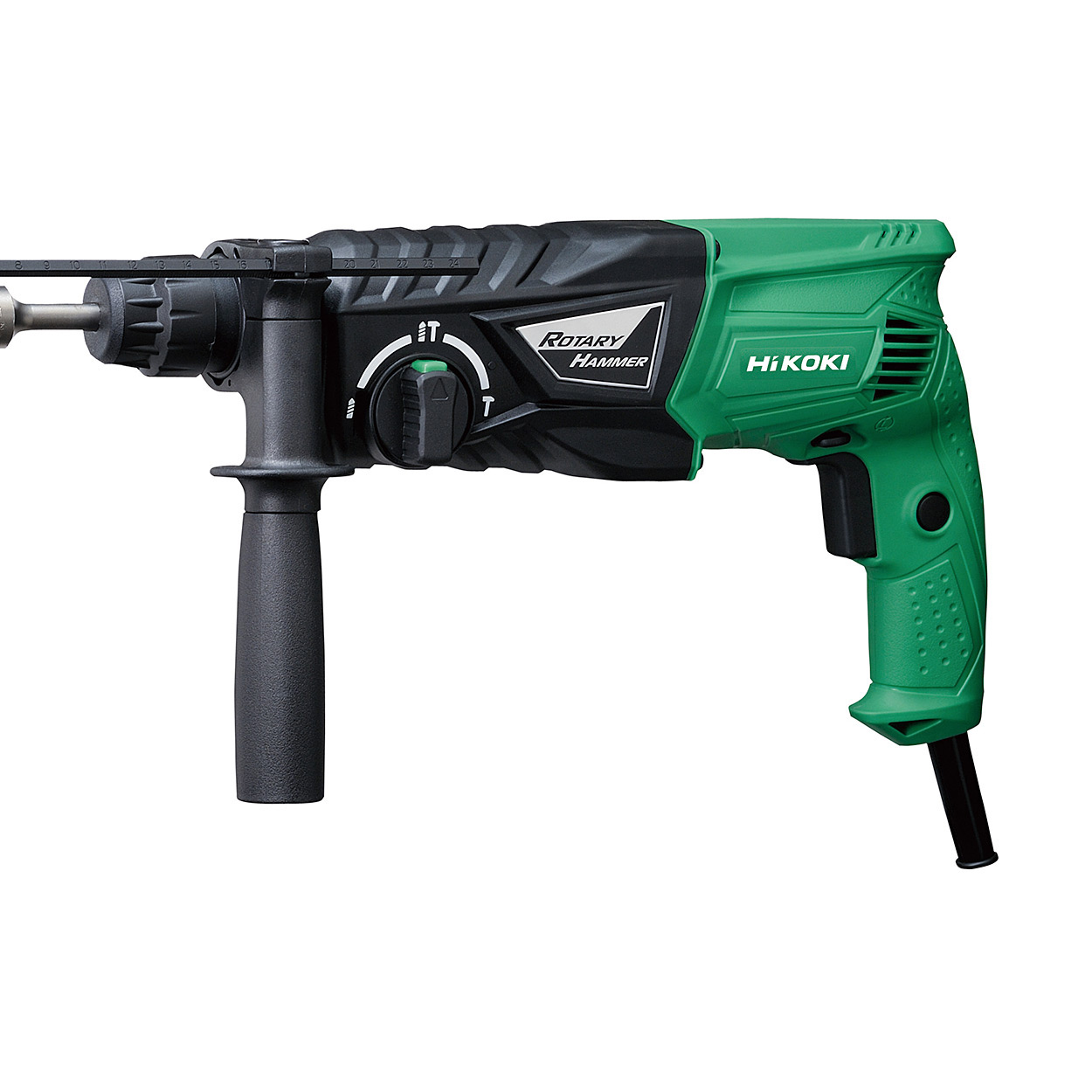

HiKoki 32mm 730W Rotary Hammer with SDS-Plus, DH24PH2S9Z
Roll over the image to zoom in
Key Features
- Product Type: Rotary Hammer
- Weight: 2.8 kg
- Impact Rate: 0 - 3950 bpm
- Impact Energy: 2,7 J
- Speed (RPM): 0 - 1050 rpm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹11,098 (Incl. of all taxes)
₹9,405 + ₹1,693 GST (18%)
MRP was MRP ₹16,500
Save 43%
2 Business Days
1
–
Download HiKoki CatalogueNot available
Highlights
HiKoki DH24PH 3 Mode Action Rotary Hammer is used for drilling both stone and concrete. The double moulded side of the handle makes it super convenient to handle. This 730W rotary hammer drill is extremely easy to install and operate. It comes with 3 mode action and can be used for hammer drilling, hammering only and drilling only purposes.
The improved design of hammer drill makes it the best tool for drilling purpose. This rotary hammer comes with ball bearing to prevent grease leakage. The soft grip handle is elastomer covered and the gear cover makes it a durable hammer. The variable speed and reversible feature allow you to use the tool effectively.
- High durability hammering mechanism
- Angle adjustment function
- Simple bit mounting.
- Large change lever located on the side of the tool body for easy operation!
- Rotation & Hammering: For drilling into concrete etc.
- Rotation only: For drilling in steel and wood etc. (with optional drill chuck and chuck adapter)
- Hammering only :For chiselling of concrete and groove digging etc.
Features & Benefits:
- Hammering mechanism features air channel system: Up to 50% more volume of air cushion *1 reduces wear and damage inside cylinder.
- Ball bearings: Ball bearing seals in grease and holds temperature low to protect melt down of gear cover.
- New internal pressure control mechanism: Provides smooth airflow in or out of the gear cover to stabilize and ensure hammering action.
|

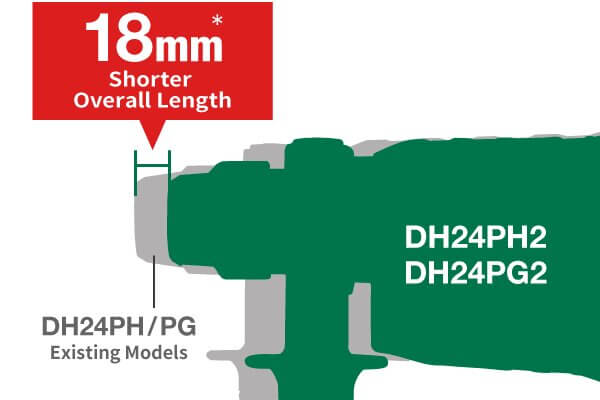

Compact BodyThe shortened overall length results in better handling. |
|
Ventilation windowsDouble ventilation windows (inlets) in labyrinth construction does less harm to the motor by reducing the ingress of dust and debris into the tool. |
|
New Construction for Motor ProtectionLabyrinth Ventilation Windows for reducing the ingress of dust and debris into the tool |
|
Large Change LeverLocated on the side of the tool body for easy operation |
|

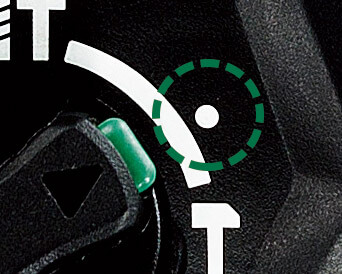

Angle Adjustment FunctionWhen using a cold chisel or cutter, the angle of the tool tip can be adjusted by setting the change lever as shown on the left. |
|
Easy to insert a bitOne-push Bit Mounting |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Impact Rate | 0 - 3950 bpm |
|---|---|
| Impact Energy | 2,7 J |
| Speed (RPM) | 0 - 1050 rpm |
| Power Source | Corded |
| Capacity: Concrete | 3.4 - 24mm (1/8" - 15/16") |
| Capacity: Steel | 13mm (1/2") |
| Capacity: Core bit | 25 - 50mm (1" - 2") |
| Capacity: Wood | 32mm (1-1/4") |
| Power Input | 730W |
| Bit Shank | SDS-plus |
| Overall Length | 349mm |
| Hammer drilling into concrete | Vibration emission value ah, HD = 15.3m/s2 Uncertainty K = 1.5m/s2 |
| Equivalent chiselling value | Vibration emission value ah, CHeq = 11.1m/s2 Uncertainty K = 1.5m/s2 |
| Standard Accessories | Side Handle, Depth Gauge, Carrying Case |
