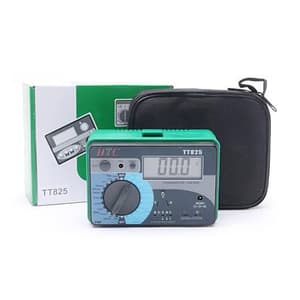

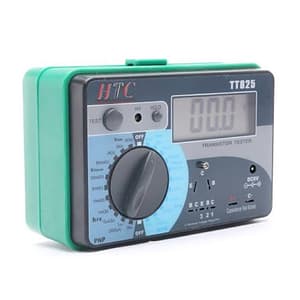

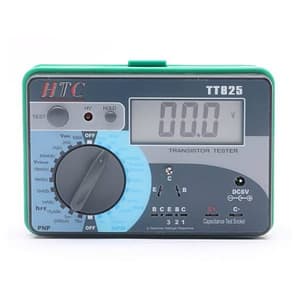

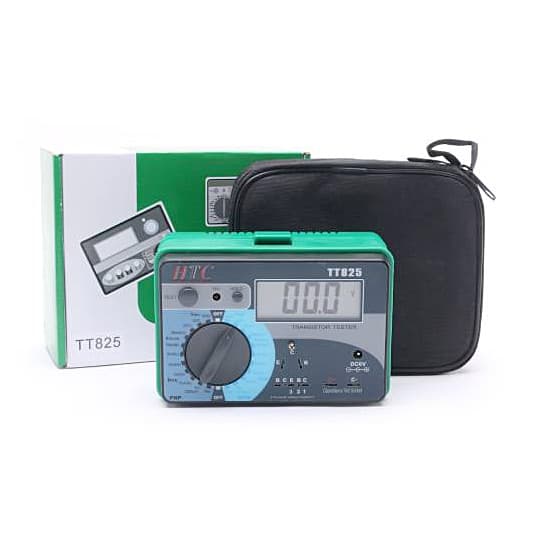

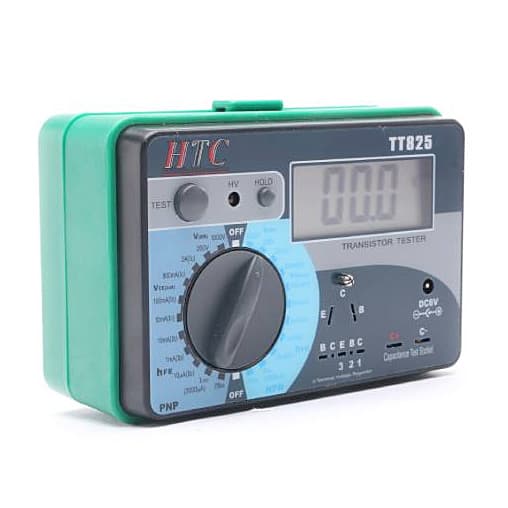

HTC 3-1/2 Digit / 1999 Count Transistor Tester, TT-825
Roll over the image to zoom in
Key Features
- Product Type: Transistor Testers
- Power: 1.5V x 4
- Package Contents: Hard Case (Meter Enclosed), Manual
- Dimension: 150 (H) x 100 (W) x 70 (D) mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,455 (Incl. of all taxes)
₹2,928 + ₹527 GST (18%)
MRP was MRP ₹3,660
Save 20%
5 Business Days
1
90303350
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- 3½ Digit LCD Display.
- 1,999 Count.
- Data Hold Function.
- Auto Range.
- Measuring forward voltage, reverse voltage, forward satuaration voltage drop, amplification factor, reverse leakage current of various crystal diode, audios, silicon controlled rectifier(SCR), field effect transister(FET).
- Measuring rated working voltage of chemical capacitor, ethylene capacitor, a capacitor, leaded multilayer ceramic capacitor, high voltage locker.
- Measuring protection voltage of varistor.
- Measuring starting voltage of neon bulb, neon lamp.
- Measuring constant voltage value of 78,79 series three-pole circuit.
Technical Data:
| Basic Functions | Range | Accuracy |
| V(BR) | 1000V | Breakdown of Current <1mA |
| Vcc(set) | 200V | Breakdown of Current <1mA |
| 2A(Ic) | Ic approx 2000mA, Ib approx 200mA | |
| HFE | 800mA(Ic) | Ic approx 800mA,Ib approx 80mA |
| 100mA(Ic) | Ic approx 100mA, Ib approx 100mA | |
| 10mA(Ic) | Ic approx 10mA, Ib approx 1mA | |
| 10mA(Ib) | Ib approx 10mA | |
| Iceo | 10mA(Ib) | Ib approx 1mA |
| 10mµ(Ib) | Ib approx 0.01 mA | |
| 2000µA | Vcc approx 27V | |
| Voltage of Thread-end | 78xx/79xx | Ui approx 27V |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Power | 1.5V x 4 |
|---|---|
| Package Contents | Hard Case (Meter Enclosed), Manual |
| Dimension | 150 (H) x 100 (W) x 70 (D) mm |
