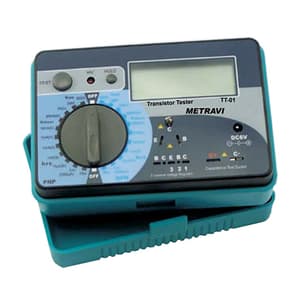

Metravi 1000V Transistor Tester, TT-01
Roll over the image to zoom in
Key Features
- Product Type: Transistor Testers
- Power: AA 1.5V x 6(UM3)
- Product size: 150 x 100 x 70 mm
- Standard Accessories: Leather Case
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,605 (Incl. of all taxes)
₹4,750 + ₹855 GST (18%)
MRP was MRP ₹6,986
Save 32%
5 Business Days
1
90303100
Download Metravi CatalogueNot available
Highlights
TT-01, the Digital Transistor DC Parameter Tester, is mainly used for testing the DC parameters of manifold semiconductors such as diode, transistor, controlled silicon and field effect transistor. It also can be used to test the withstand voltage of capacitor, protection voltage of varistor and isolation of electrical. Meanwhile it can test 78 and 79 series three-terminal voltage regulator.
The tester has adopted the large scale integrated circuit for analogue/digital conversion. With high sensitivity and accuracy, it adopts liquid crystal display which can be read directly. With compact structure and convenient operation, it is portable and especially suitable for inspection and screening of devices and components in electronic factories as well as application of technicians engaged in electronic work, lab staff, maintainers and radio fans.
Features:
- Measuring forward voltage, reverse voltage, forward saturation voltage drop, amplification factor, reverse leakage current of various crystal diode, audion, silicon controlled rectifier(SCR), field effect transistor(FET).
- Measuring rated working voltage of chemical capacitor, terylene capacitor, Ta capacitor, Leaded multilayer ceramic capacitor, high voltage lacker.
- Measuring protection voltage of varistor.
- Measuring starting voltage of neon bulb, neon lamp.
- Measuring constant voltage value of 78,79 series three-pole circuit.
Technical Specification:
| Function | Range | Display Scope | Resolution | Operation Condition |
| V(BR) | 1000V | 0-1999V | 1V | breakdown current < 1mA |
| 200V | 0-199.9V | 0.1V | breakdown current < 1mA | |
| VCC(Set) | 2A(1) | 0-6.00V | 0.01V | lc≈2000mA lb 200mA |
| 800mA(Ic) | 0-6.00V | 0.01V | lc≈800mA lb 80mA | |
| 100mA(Ic) | 0-6.00V | 0.01V | lc≈100mA lb 1mA | |
| 10mA(lc) | 0-6.00V | 0.01V | Ic≈ 10mA lb 1mA | |
| hFE | 10mA(lb) | 0-199.9 | 0.1 | Ib = 10mA |
| 1mA(1) | 0-1999 | 1 | Ib = 1mA | |
| 1μΑ(16) | 0-1999 | 1 | Ib = 0.01mA | |
| ICEO | 2000μΑ | 0-1999μΑ | 1μΑ | Vce 27V |
| 78,79 three- pole constant voltage value | 78xx/79xx | 0-24.0V | 0.1V | U≈27V |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Power | AA 1.5V x 6(UM3) |
|---|---|
| Product size | 150 x 100 x 70 mm |
| Standard Accessories | Leather Case |
