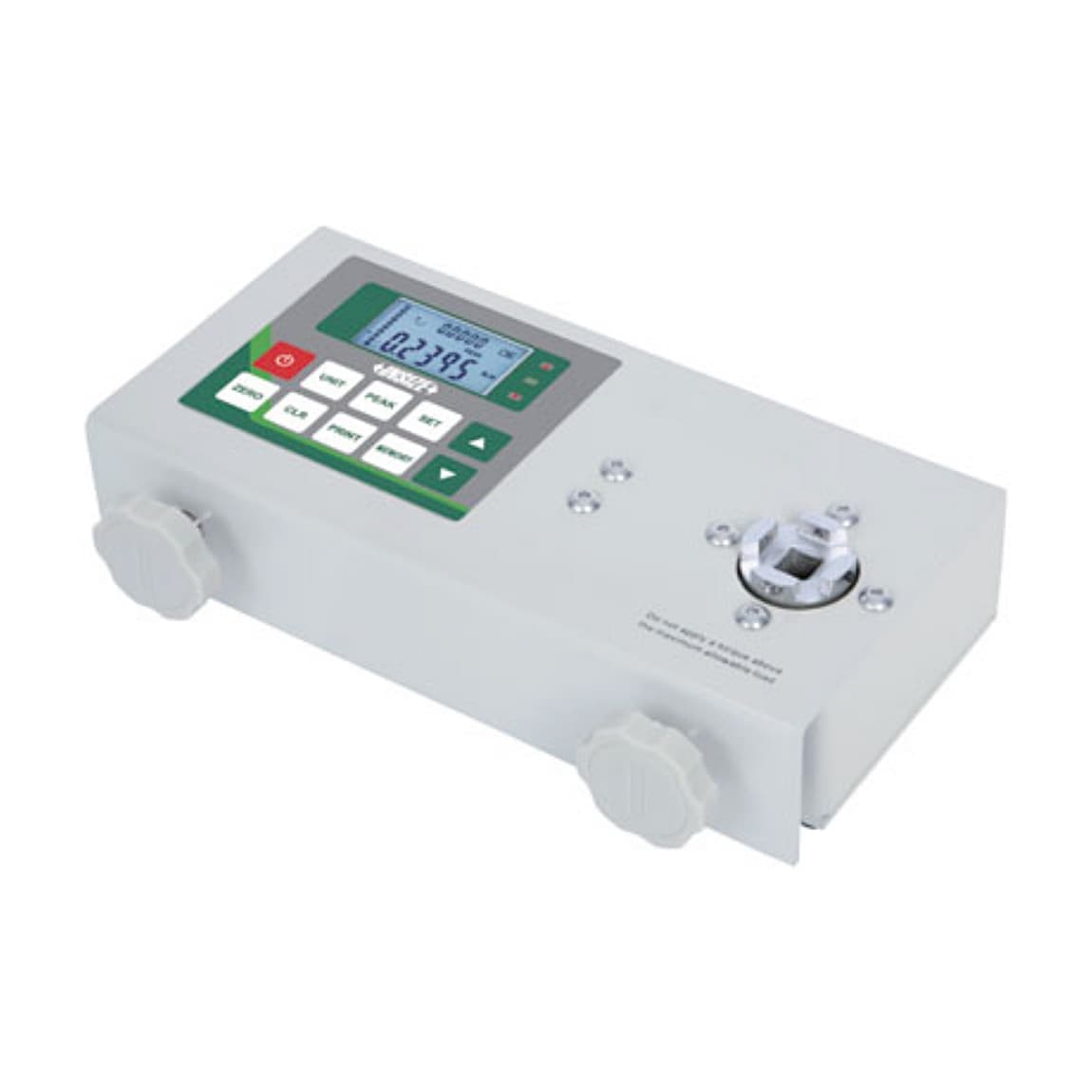

Insize 0 - 1 nm Digital Torque Tester, IST-HP1
Roll over the image to zoom in
Key Features
- Product Type: Torque Testers
- Weight: 2.4 kg
- Torque Value: 0 - 1 nm
- Resolution: 0.0005 Nm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,41,133 (Incl. of all taxes)
₹1,19,604 + ₹21,529 GST (18%)
Out of Stock
15 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available

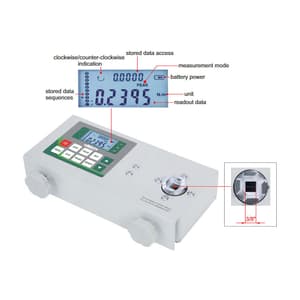

Highlights
- For testing electric, pneumatic and manual torque screwdrivers and torque wrenches and other torque tools
- Clockwise and counter-clockwise operation
- Peak and track working modes
- High-definition display, backlighting available
- High sampling frequency for accurate peak capture
- Unit: N.m, Ib.in, kgf.cm
- Upper and lower limits can be set, automatic audible and visual alarm with red and green indicator lights and buzzer
- Store 10 sets of data and calculate the average value
- Serial RS232 output, connect to PC to view torque curves by test software
- Automatic zero setting, automatic shutdown

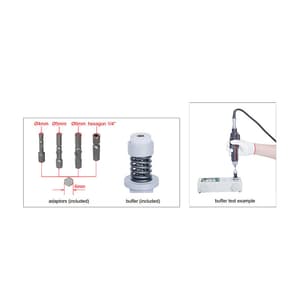

Package Content:
| Main unit | 1 Pc |
| Buffer | 1 Pc |
| Adaptor | 4 Pcs |
| Power Adapter | 1 Pc |
| RS232 Cable & Software | 1 Pc |
"Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required."
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Torque Value | 0 - 1 nm |
|---|---|
| Resolution | 0.0005 Nm |
| Accuracy | ±1% |
| Max. Test Speed | 3000 rpm |
| Number of Memory | 10 Groups |
| Power Supply | Built-in Rechargeable Battery, Can be used for 40 Hours |
| Dimension (mm) | 230 x 110 x 50 mm |
