Insize 0.20 ~ 1.20 N.m Intelligent Electric Screwdriver (Current Control), HES-E403
Roll over the image to zoom in
Key Features
- Product Type: Torque Testers
- Weight: 500 g
- Torque Value: 0.20 - 1.20 nm
- Max. Speed: 1000 rpm
- Applicable screw outside diameter: 2.0 - 3.5 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,02,874 (Incl. of all taxes)
₹2,56,673 + ₹46,201 GST (18%)
MRP was MRP ₹3,61,511
Save 29%
7 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Highly efficient heat dissipation setting, ultra-low noise handling
- Permanent magnet synchronous servo motor and high-precision reducer power transmission mechanism
- High-precision angle sensor (resolution 1°) and two-color LED indication of locking status
- The safety level conforms to the relevant provisions of GB3883/IEC60745 and other standards
- 12 task modes, each task can be configured with 8 different torque parameters
- Locked data is stored in EXCEL on the hard disk for 600 days
- Built-in servo drive for precise control of torque, angle and speed

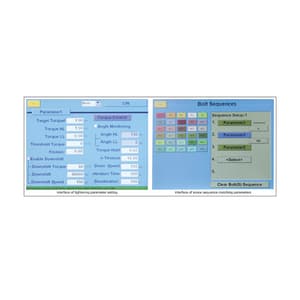

- Provide graphical tool for process optimization and diagnostic

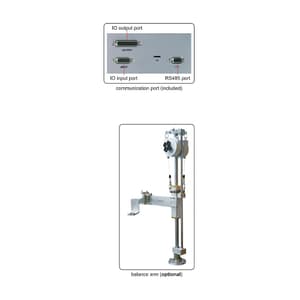

- Provide programmable IO and RS485 communication port for process control and data transmission
- Physical buttons for assisted operation and they are monitored by LED lights
Standard Delivery:

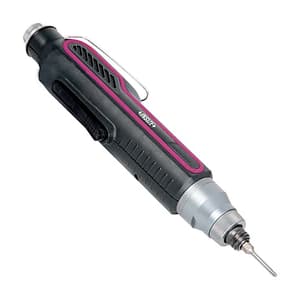

- 1x Electric screwdriver
- 1x Controller
- 1x Cross screwdriver head
- 1x Tool connection cable
- 1x USB transmission cable
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Torque Value | 0.20 - 1.20 nm |
|---|---|
| Motor Power | DC40W |
| Max. Speed | 1000 rpm |
| Applicable screw outside diameter | 2.0 - 3.5 mm |
| Applicable screwdriver head | 6.35 mm Hexagonal |

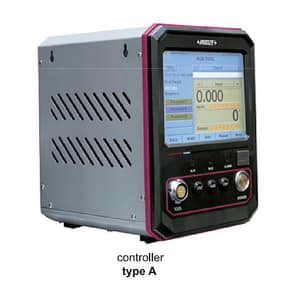

| Controller | Type A |
| Power supply | AC 85-264V, 47-63HZ |

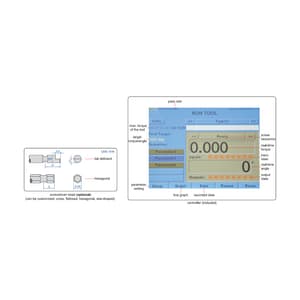

| Display operation interface | Touch screen menu operation mode, 3 function buttons+3 LED indicators |
| Torque Accuracy | ±5% at 30% - 80% of maximum output torque, ±8% in other range |
| Dimension for Electric Screwdriver | 231 x 64.4 x 38 mm |
| Dimension for Controller | 151.5 x 185.8 x 221 mm |
