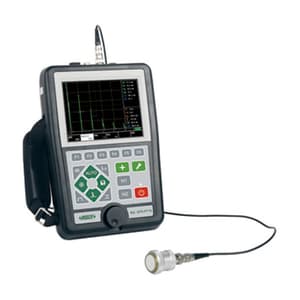

Insize 0 - 10000 mm Digital Ultrasonic Flaw Detector (Advanced Type), UFD-P710
Roll over the image to zoom in
Key Features
- Product Type: Detectors
- Weight: 1.3 kg
- Measuring Range (mm): 0 - 10000 mm
- Working Frequency: 0.5 - 20MHz
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹13,49,558 (Incl. of all taxes)
₹11,43,693 + ₹2,05,865 GST (18%)
Out of Stock
15 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- With fast, accurate display and analysis of defective echo signals, a variety of weak signal changes and details can respond in a timely manner, the real-time echo signal and authenticity can be effectively guaranteed
- For the detection of high attenuation materials or thick workpiece has excellent penetration and letter ratio; sharp wave excitation technology and adjustable pulse width, pulse voltage, emission anisotropic square wave technology in the detection of thin workpiece and composite materials have a high resolution
- FIR digital filtering technology better signal-to-noise ratio; probe frequency harmonic analysis, can better analyze the probe performance information
- Automatic calibration of material speed of sound, probe delay, probe K value; convenient DAC, AVG curve creation and application
- USB HOST interface, can be connected to an external U disk to achieve data transfer; can be connected to an extemal WIFI module to achieve communication with other wireless devices
- HDMI video output for flaw detection and teaching presentations
- Ultra-large capacity storage space for continuous dynamic recording data storage
- Wireless phased array module can be connected, so that the conventional ultrasonic flaw detector has the same detection function as phased array instrument
Functions:
| Flaw detection standard | Built-in common flaw detection standards, direct call, convenient and fast |
| Auto Calibration | Automatic calibration of probe zero offset, probe angle (K value) and material velocity |
| Peak hold | Compare frozen peak waveforms to live A-Scans to easily interpret test results |
| Flaw locating | Live display sound-path, projection (surface distance), depth, amplitude |
| Flaw discrimination | Automatic flaw sizing using AVG or DAC, speeds reporting of defect acceptance or rejection |
| Flaw sizing | The equivalent dB value of defects or equivalent size of defects are displayed in real time |
| Curved surface | The curve is automatically generated, and the sampling points can be compensated and corrected. The curve automatically floats with the gain, automatically expands with the detection distance, and automatically moves with the delay time. It can display the AVG curve of any aperture |
| Correction | |
| DAC/AVG | The curve is automatically generated, and the sampling points can be compensated and corrected. The curve automatically floats with the gain, automatically expands with the detection distance, and automatically moves with the delay time. It can display the AVG curve of any aperture |
| AWS D1.1/1.5 | Choosing this standard can reduce manual calculations and improve detection efficiency |
| Automatic rating | Select different AWS standards, automatically calculate the rating of defects and display |
| Crack height | The crack height is measured and calculated automatically by the diffracted wave at the end |
| Gate magnify | Spreading of the gate range over the entire screen width |
| Continuous record | Video recording and playback |
| Echo Coding | Display 1—9 echo display area in different colors, used to analyze the defect position |
| Scane Freeze | Display freeze holds waveform and test distance data |
| Peak mark | Capture and mark the peak in real time |
| B scan | Intuitively display the defect shape of the workpiece and the detection result is more intuitive |
Technical Data:
| Material Velocity | 1000 - 15000m/s, adjustable in continuity; 30 pre-set nominated velocities for common materials |
| Pulse Type | sharp wave, negative square wave, bipolar square wave; transmit voltage 50-250V adjustable, step 50V |
| Gates & Alarms | two-way gate, optional: into the wave alarm, lost wave alarm, DAV curve alarm, alarm signal for sound and light alarms, Measurement mode: peak, frontal |

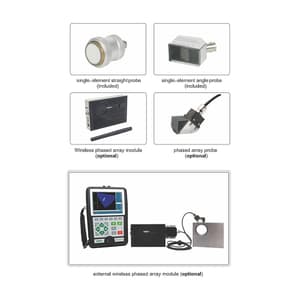

Specification of Probes
| UFD-P70 | Frequency: 2.5MHz |
| Size: Ø20 mm | |
| Probe Type: Single-element Straight Probe | |
| Probe Transducer Angle: 90° | |
| UFD-P71 | Frequency: 2.5MHz |
| Size: 13 x 13 mm | |
| Probe Type: Single-element angle probe | |
| Probe Transducer Angle: 45° |
Package Content:
- 1x Digital Ultrasonic Flaw Detector
- 1x Single-element straight probe UFD-P70
- 1x Single-element angle probe UFD-P71
- 2x Probe Connecting cable
- 1x Mainframe Backpack
- 1x USB Disk
- 1x Power Adapters
Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Measuring Range (mm) | 0 - 10000 mm |
|---|---|
| Working Frequency | 0.5 - 20MHz |
| Repetition Frequency | 25 - 1600Hz |
| Dynamic Range | >32dB |
| Gain Range | 0.0 - 110dB (Step: 0.1dB, 1.0dB, 2.0dB, 6.0dB) |
| Vertical Linearity | <3.0% |
| Horizontal Linearity | 0.4% |
| Resolving Power | >26dB(2.5P20) |
| Sensitivity Leavings | >62dB (200Ø2 Flat Bottom Hole, Narrow Band) |
| Attenuator | 12dB±1dB |
| Suppression | 0 - 99% |
| Noise | <10% |
| Display Screen | 5.7" TFT Color LCD, Resolution 640X480 |
| Pulse Shift | -7.5 ~ 3000us |
| Probe Zeroing | 0 - 200us |
| Rectification | Positive, Negative, Full Play & RF |
| Interface | Q9 (BNC), USB HOST, Mini HDMI |
| Damping | 400 ohm, 80 ohm |
| Power | Rechargeable Li-ion Battery (Working Time: 6 - 8 hrs) |
| Storage Temperature | -30 ~ 50°C |
| Relative Humidity | 20 - 95%RH |
| Dimension (mm) | 246 x 166 x 50 mm |
