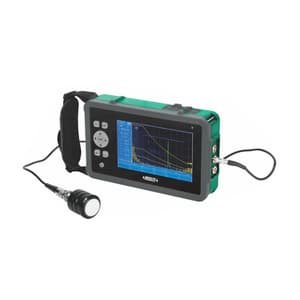

Insize 0 - 20000 mm Digital Ultrasonic Flaw Detector (Excellent Type), UFD-C870
Roll over the image to zoom in
Key Features
- Product Type: Detectors
- Weight: 0.68 kg
- Measuring Range (mm): 0 - 20000 mm
- Working Frequency: 0.4 - 20MHz
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹10,28,876 (Incl. of all taxes)
₹8,71,929 + ₹1,56,947 GST (18%)
Out of Stock
15 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Small size, light weight, long battery standby time
- High sensitivity, accurate defect positioning, super anti-interference ability, stable and reliable performance
- Resistive touch screen, dust and oil resistant, sensitive touch
- The performance of instrument and probe combinations can be tested automatically
- Unique square wave excitation signal processing technology
- Launch voltage, probe damping, pulse width, filter band adjustable, suitable for different materials, different thickness of the workpiece accurate detection
- The background color and brightness can be freely adjusted to adapt to strong or low light environments to ensure a clear display
- Full course, continuous, dynamic high-capacity recording of test echoes and data, support for data playback, through the U disk export
- Built-in wifi, can realize the flaw detector and computer synchronization real-time display
Functions:
| Flaw detection standard | Built-in common flaw detection standards, direct call, convenient and fast |
| Auto Calibration | Automatic calibration of probe zero offset, probe angle (K value) and material velocity |
| Peak hold | Compare frozen peak waveforms to live A-Scans to easily interpret test results |
| Flaw locating | Live display sound-path, projection (surface distance), depth, amplitude |
| Flaw discrimination | Automatic flaw sizing using AVG or DAC, speeds reporting of defect acceptance or rejection |
| Flaw sizing | The equivalent dB value of defects or equivalent size of defects are displayed in real time |
| Curved surface Correction | Used for flaw detection of curved workpiece, it can display the circumferential position of defects in real time |
| DAC/AVG | The curve is automatically generated, and the sampling points can be compensated and corrected. The curve automatically floats with the gain, automatically expands with the detection distance, and automatically moves with the delay time. It can display the AVG curve of any aperture |
| AWS D1.1 | Choosing this standard can reduce manual calculations and improve detection efficiency |
| Weld Diagram | Support V-type, T-type, L-type and other weld types, acoustic path navigation real-time display, weld and defect location real-time display, scaling, easy to locate defects |
| Automatic rating | Select different AWS standards, automatically calculate the rating of defects and display |
| Crack height | The crack height is measured and calculated automatically by the diffracted wave at the end |
| Gate magnify | Spreading of the gate range over the entire screen width |
| Continuous record | Real-time Waveform recording, Storage & Playback |
| Echo Coding | Distinguish between odd/even wave colors only |
| Scane Freeze | Display freeze holds waveform and test distance data |
| Peak mark | Capture and mark the peak in real time |
| B scan | Intuitively display the defect shape of the workpiece and the detection result is more intuitive |
Technical Data:
| Gates & Alarms |
|
| Rectification | Positive, Negative, Full Display & RF |
| Display Screen | 5.0 inch TFT color LCD touch screen, resolution 800x480 |
| Pulse Voltage | 50V/100V/200V/400V for Adjustable Steps |
| Pulse Width | 50ns - 100ns Adjustable |

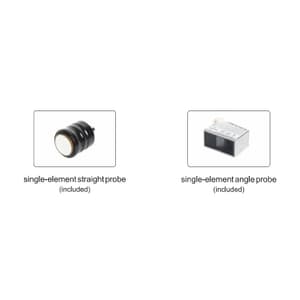

Specification of Probes
| UFD-T80 | Frequency: 2.5MHz |
| Size: Ø20 mm | |
| Probe Type: Single-element Straight Probe | |
| Probe Sensor Angle: 90° | |
| UFD-T81 | Frequency: 2.5MHz |
| Size: 13 x 13 mm | |
| Probe Type: Single-element angle probe | |
| Transducer Sensor Angle: 63.4° |
Package Content:
- 1x Digital Ultrasonic Flaw Detector
- 1x Single-element straight probe UFD-T80
- 1x Single-element angle probe UFD-T81
- 2x Probe Connecting Cable
- 1x USB Cable
- 1x USB Disk
- 1x Power Adapter
Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Measuring Range (mm) | 0 - 20000 mm |
|---|---|
| Working Frequency | 0.4 - 20MHz |
| Material Velocity | 20 - 20000m/s |
| Repitition Frequency | 30 - 1000Hz |
| Dynamic Range | >32dB |
| Gain Range | 0 - 110dB (Steps: 0.1dB, 1.0dB, 2.0dB, 6.0dB & 12dB) |
| Vertical Linearity | <2.0% |
| Horizontal Linearity | <0.1% |
| Resolving Power | >36dB |
| Sensitivity Leavings | >62dB (200Ø2 Flat Bottom Hole, Narrowband) |
| Attenuator | 20dB±1dB |
| Suppression | 0 - 90% |
| Noise | <10% |
| Interface | C5 (BNC) / USB (Type-C) / VGA |
| Damping | 50 Ohm / 500 Ohm Adjustable in Two Steps |
| Operating Temperature | -20 ~ 50°C |
| Relative Humidity | 20 - 95%RH |
| Power | Rechargeable Lithium-on Battery, Working Time > 8h |
| Dimension (mm) | 180 x 110 x 45 mm |
