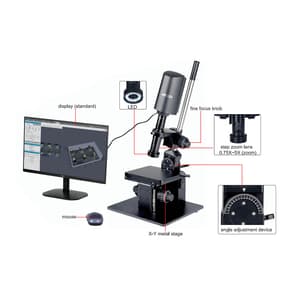

Insize 100X - 750X Large Depth of Field 3D Measuring Microscope, 5324-K220
Roll over the image to zoom in
Key Features
- Product Type: Zoom Stereo Microscope
- Weight: 10 kg
- Sensor: 1/2 inch CMOS
- Pixel: 2M
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹10,21,111 (Incl. of all taxes)
₹8,65,348 + ₹1,55,763 GST (18%)
Out of Stock
15 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Auto focus camera
- Built-in motor, automatic focus stacking
- PDF report can be exported
- Fast generation of large depth of field images
- Plane measurement and profile height measurement
- Built-in Software without Computer, Operated by Mouse & Keyboard

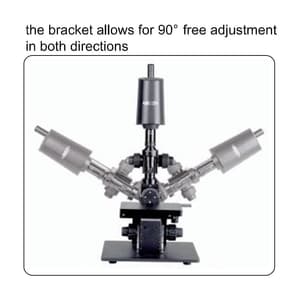

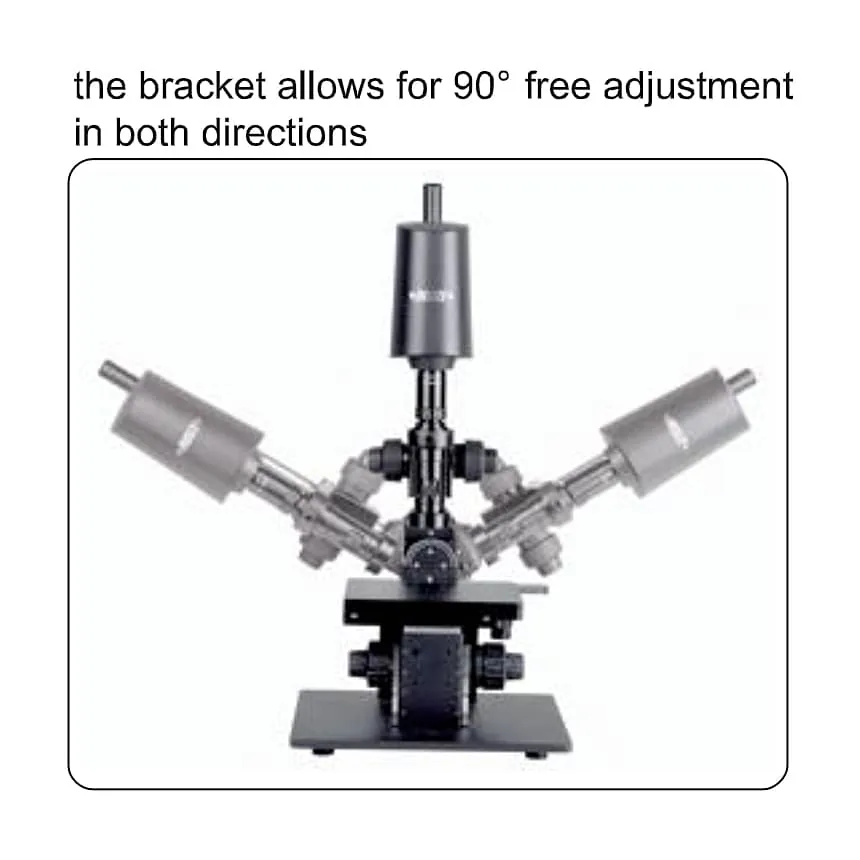

- Rotatable Observation
- Stereoscopic 3D imaging
- Rotatable worktable
Profile Height Measurement Accuracy:
| Objective Magnification | Measuring Range | Measuring Accuracy |
| 1.5X | 2000µm | ±20µm |
| 2X | 1200µm | ±10µm |
| 2.5X | 800µm | ±10µm |
| 3X | 600µm | ±6µm |
| 3.5X | 400µm | ±5µm |
| 4X | 320µm | ±5µm |
| 4.5X | 250µm | ±5µm |
| 5X | 200µm | ±3µm |
What's Included in this Package:
| Measuring Microscope | 1 Pc |
| Galibration Block | 1 Set |
| Mouse | 1 Pc |
| Keyboard | 1 Pc |
| Display | 1 Pc |
| 16GB USB Flash Disk | 1 Pc |
| Glass Calibration Rule | 1 Pc |
| Power Adapter | 2 Pc |
| Stand | 1 Pc |
Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Sensor | 1/2 inch CMOS |
|---|---|
| Pixel | 2M |
| Resolution | 1920 x 1080p |
| Magnification | 100 - 750X |
| Z-axis Measurement Range | 2 mm |
| View Field | 0.6x0.32 - 4.5x2.5 mm |
| Working Distance | 30 - 40 mm |
| Frame Rate | 60fps |
| Plane Measuring Accuracy | ±8μm |
| Output | HDMI/LAN |
| Power Supply | Power Adapter |
| Dimensions (L x W x H) | 570 x 300 x 430 mm |
