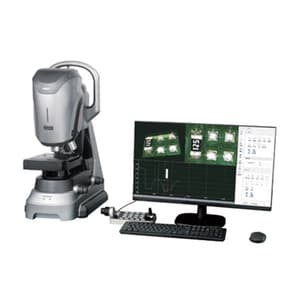

Insize 30X - 6000X Large Depth of Field 3D Measuring Microscope (Advanced Type), ISM-H5000
Roll over the image to zoom in
Key Features
- Product Type: Zoom Stereo Microscope
- Weight: 70 kg
- Magnification: 30X - 6000X
- Objective: 1.5X, 5X, 20X, 50X
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹67,53,324 (Incl. of all taxes)
₹57,23,156 + ₹10,30,168 GST (18%)
Out of Stock
15 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Magnification 30-6000X, Stereoscopic 3D Imaging, Image Stitching, Motorized Zoom Lens, Map Navigation, Motorized XYZ axis, 2D/3D Measurement
- High definition telecentric imaging lens
- Auto focus
- 4 motorized switching objectives
- Split-screen display
- Rotatable stage
- Take picture and video
- Multiple illumination options for different products and scenarios
- Elimination of reflections and dark field halos, HDR, optical shadows
- Automatic stitching for large field view and measurement after stitching
- Measurements can be saved in reports and exported
- Magnification: 30k, 40k, 50k, 80k, 100k, 150k, 200k, 300k, 300k, 400k, 500k, 700k, 1000k, 1500k, 2000k, 2500k, 4000k, 5000k ,6000X (5000X and 6000X are digital magnification)
Technical Data:
| Camera | |
| Sensor | 1/1.7 inch CMOS |
| Pixel | 12.22M (4180 x 3062) |
| Frame Rate | 30fps |
| Resolution | 2048x1536p (Quick), 2880x2160p (Standard), 4000x3000p (High resolution), 8000x6000p/12000x9000p (High definition) |
| Display | |
| Size | 27 inch |
| Screen Size | 596.736 x 335.664 mm |
| Pixel Pitching | 0.1554 x 0.1554 mm |
| Resolution | 3840 x 2160p |
| Motorized Stage | |
| Movement Axis | X, Y & 0 Axis |
| Range | 40 x 40 mm |
| Size | 228 x 204 mm |
| Moving Speed | 10 mm/s |
| Resolution | 1µm |
| 0 Angle of Rotation | -90° ~ +90° |
| Max. Weight of Workpiece | 5Kg |
| Upper Z-axis | |
| Control Mode | Motorized |
| Resolution | 0.1µm |
| Moving Speed | 16.5 mm/s |
| Range | 50mm |
| Lower Z-axis | |
| Control Mode | Motorized |
| Resolution | 1µm |
| Moving Speed | 6 mm/s |
| Range | 50 mm |

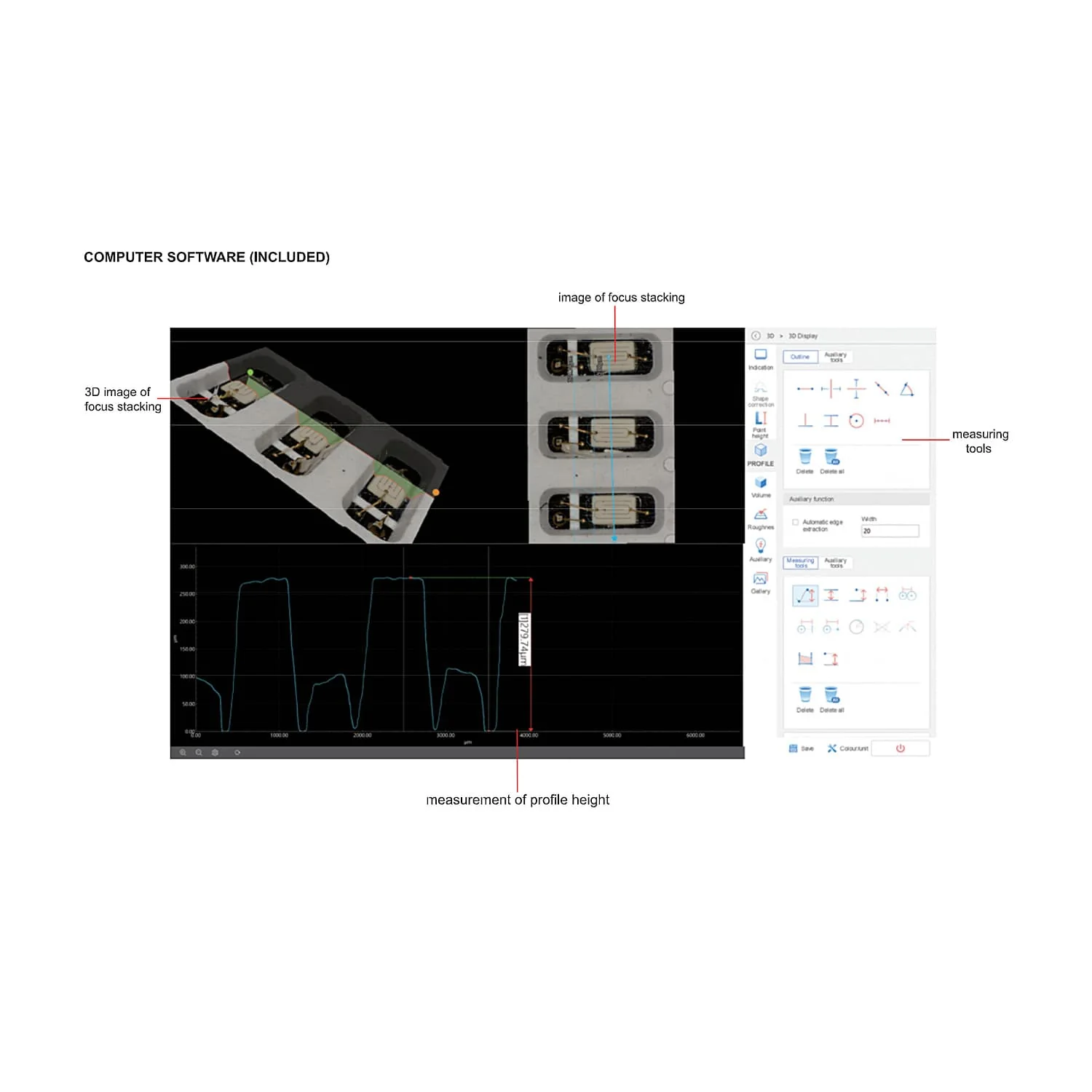

Software Function:
| Imaging |
|
| Measuring |
|
| File |
|
Package Content:

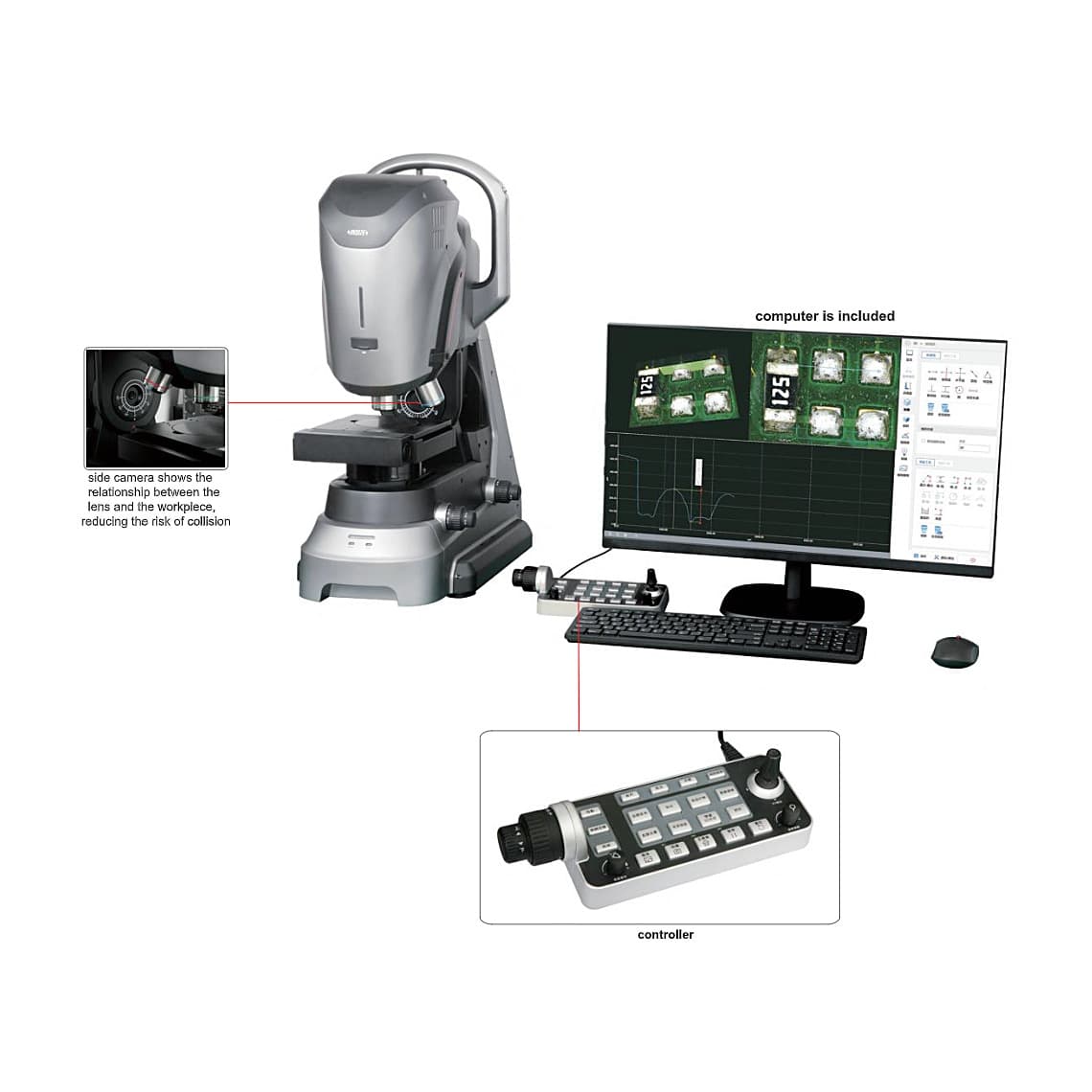

- 1x Microscope
- 1x Computer
- 1x Glass Calibration Plate
- 1x Anti-dust Cover
- 1x 16GB USB Flash Disk
Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Magnification | 30X - 6000X |
|---|---|
| Objective | 1.5X, 5X, 20X, 50X |
| Horizontal Resolution | 0.42μm |
| Max. Depth of Field | 30 mm |
| Working Distance | 2 - 30 mm |
| Max. Height of Workpieces | 90 mm |
| View Field | 50.60x38.00 μm - 9977.30x7483.00μm |
| Accuracy | ±(0.5+0.005L)μm (L is measuring lenath or heiaht in mm) |
| Illumination | Bright Field (Full/zoned), Dark Field (Full/zoned), Hybrid Lighting, Projected Lighting |
| Light Source Life | LED, Lifespan about 40000 Hours |
| Max. Viewable Pixel Size | 2D (5 Billion Pixels) / 3D (2.5 Billion Pixels) |

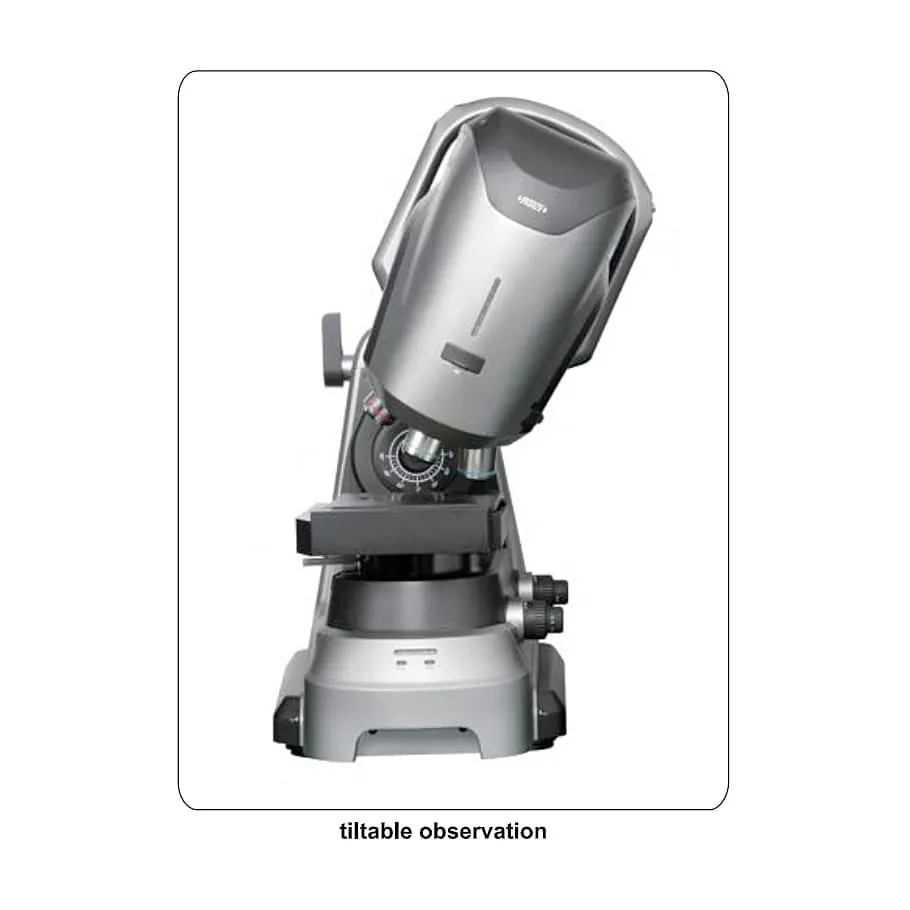

| Tilting Angle Range | -89° ~ +89° |
| Power Supply | 220V |
| Dimensions (L x W x H) | 600 x 320 x 710 mm |
