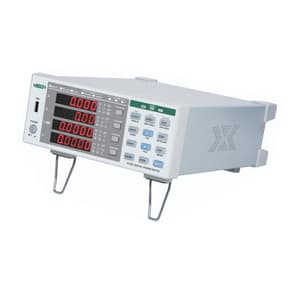

Insize 15 - 600V AC/DC Digital Power Meter, 9670-PM70
Roll over the image to zoom in
Key Features
- Product Type: Power Meter
- Weight: 2.55 kg
- Voltage Range: 15 - 600V (15 / 30 / 60 / 150 / 300 / 600V)
- Power Factor: ±(0.010 - 1.000)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹86,730 (Incl. of all taxes)
₹73,500 + ₹13,230 GST (18%)
MRP was MRP ₹1,02,083
Save 28%
5 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Basic accuracy: 0.2%
- AC/DC universal, input signal bandwidth: DC, 15Hz-5kHz
- High measurement speed, up to 0.1s refresh rate
- Voltage and current ratio function
- Sound and light alarm for voltage, current, power over the limits
- Standard RS232 interface to support test automation and data transmission
- Measurement Parameter: Voltage (U), Current (L), Active Power (P), Reactive Power (Q), Apparent Power (S), Power Factor, Phase Angle (?), Voltage Frequency (F), Voltage Peak (Vpk), Current Peak (Apk), Electric Energy (Wh), Current Integration (Ah), Electric Energy Time (Time)
Technical Data:
| Voltage | Display Range | 0.15V - 600V |
| Accuracy (23±5°C) | DC, 15Hz≤f≤5kHz: ±(0.1% x display+0.1% x Range) | |
| Current | Display Range | 0.5mA - 20A |
| Accuracy (23±5°C) | DC, 15Hz≤f≤5kHz: ±(0.1% x display+0.1% x Range) | |
| Active Power | Display Range | 1.0mW - 12kW |
| Accuracy (23±5°C) | DC, 15Hz≤f≤5kHz: PF>0.5: ±(0.1% x display+0.1% x Range), PF≤0.5: ±(0.25% x display+0.25% x Range) | |
| Frequency | Display Range | 15Hz - 5kHz |
| Accuracy (23±5°C) | ±(0.1%xdisplay) (voltage amplitude should be greater than 10% of range) | |
| Electric Energy | Diplay Range | 0 - 9999 MWh |
| Accuracy (23±5°C) | ±(0.5% x Display) | |
| Current Integration | Display Range | 0 - 9999 MAh |
| Accuracy (23±5°C) | ±(0.5% x Display) |
Package Content:
- 1x Digital power Meter
- 1x RS232 Communication Cable
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Voltage Range | 15 - 600V (15 / 30 / 60 / 150 / 300 / 600V) |
|---|---|
| Current Range | 100mA / 200mA / 500mA / 1A / 2A / 5A / 10A / 20A |
| Power Factor | ±(0.010 - 1.000) |
| Ratio Range (Voltage & Current) | 0.1 - 6000 |
| Interface | RS232 Interface Supports MODBUS & ASCIl Code Protocols |
| Power Supply | 100 - 240V (AC), 50/60Hz |
| Dimension (L x W x H) | 281 x 213 x 99 mm |
