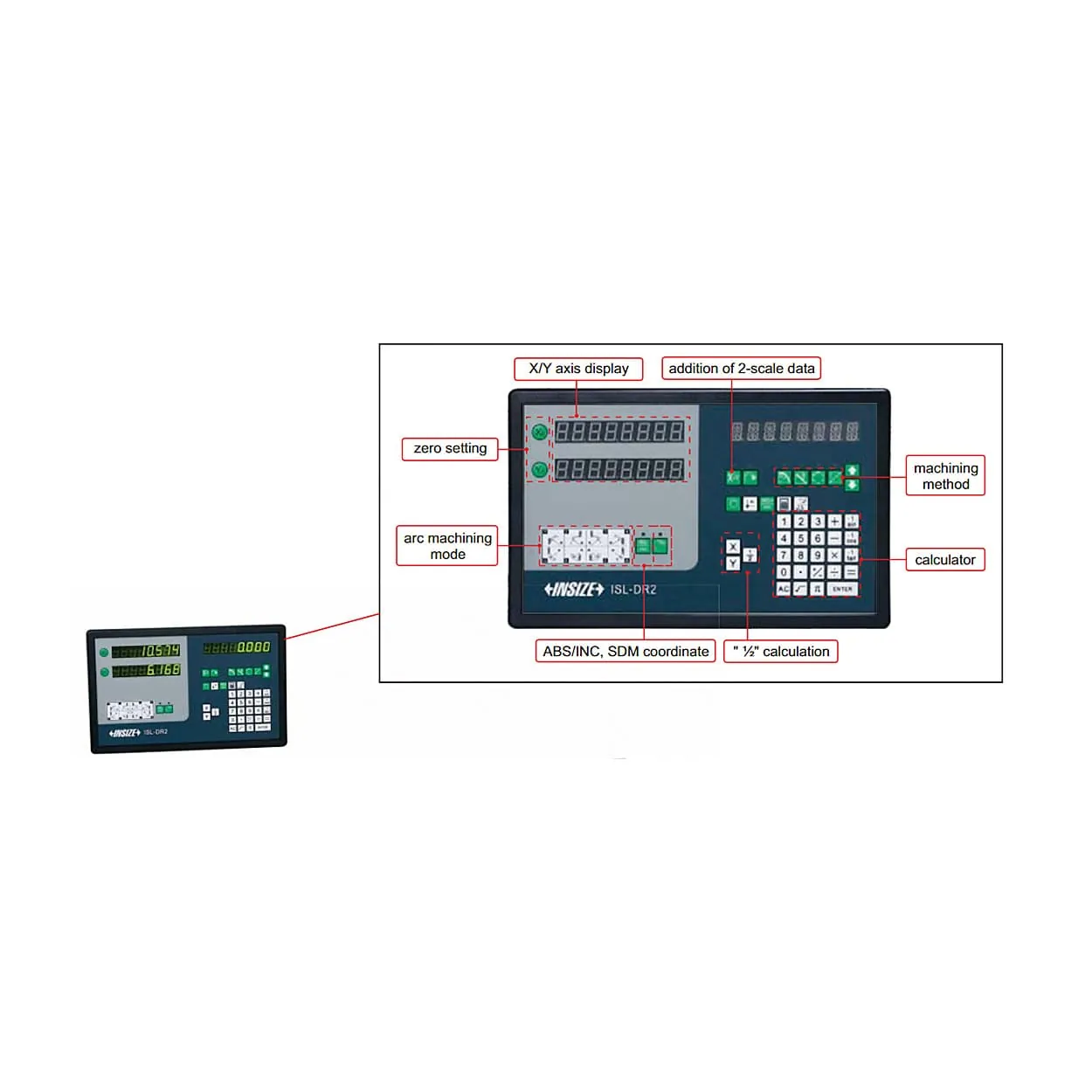

Insize 2-Axis Digital Readout System For Lathe, ISL-SET1
Roll over the image to zoom in
Key Features
- Product Type: Digital Readout System
- Weight: 1.45 kg
- Application: Two-Axis
- Scale input ports: 2
- Resolution: 1 um
- Power supply: 110/220V, 50/60Hz
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹87,823 (Incl. of all taxes)
₹74,426 + ₹13,397 GST (18%)
Out of Stock
3 Business Days
1
90318000
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
Addition of 2 scale date linearity error compensation smoothing RS232C interface unit BCD code out, zero setting preset resolution setting counting direction setting inch/mm conversion ABS/NC conversion expansion/contraction coefficient setting "1/2" calculation detecting RI bolt-hole circle machining ramp circle machine.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Linear Scale Specification:
| X-axis | 200mm |
| Y-axis | 1000mm |
| Max. response speed | 50m/min |
| Scale grating pitch | 20um |
| Scale reference point pitch | 50 mm |
| Accuracy | +/-(5+5L/1000)um L is the effective length in mm |
| Cable length | 200mm scale:3.5m, 1000mm scale: 5m |
Standard Delivery:
| Readout box | 1 Pc |

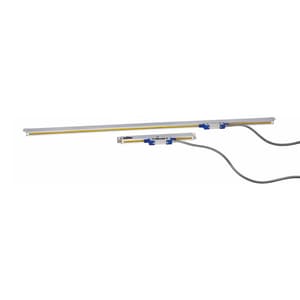

| 200mm linear scale | 1 Pc |
| 1000mm linear scale | 1 Pc |

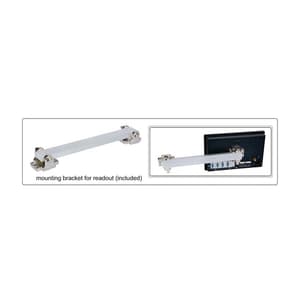

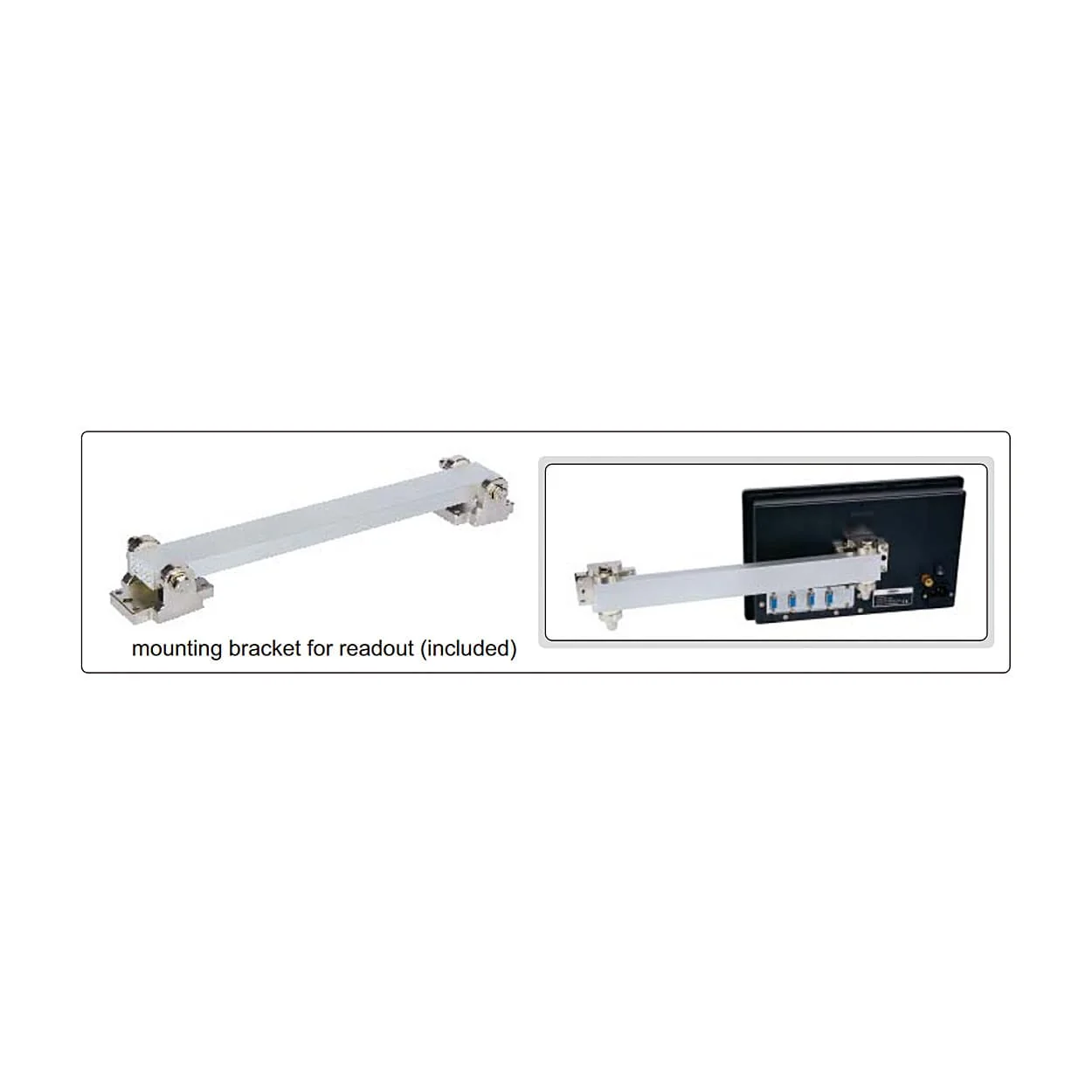

| Mounting bracket for readout | 1Pc |
| Ground cable for readout | 1 Pc |
| RS232C cable for readout | 1 Pc |
| Software CD for RS232C of readout | 1 Pc |

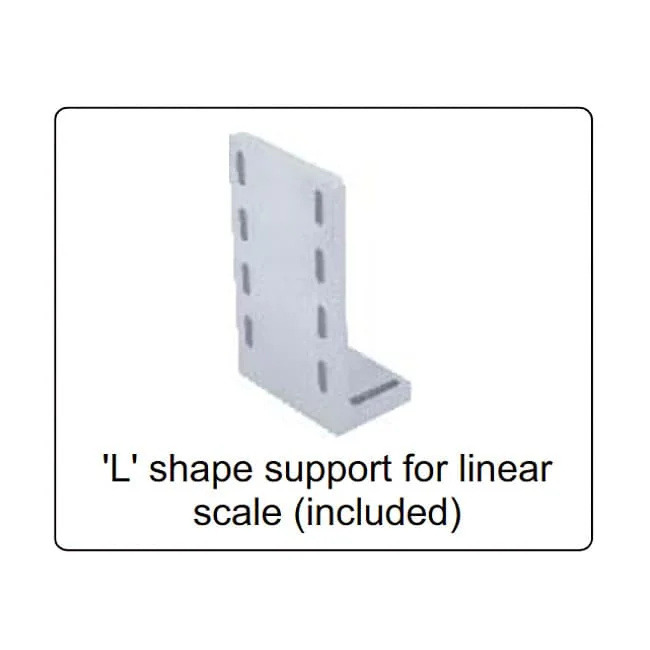

| 'L' shape support linear scale | 1 Pc |

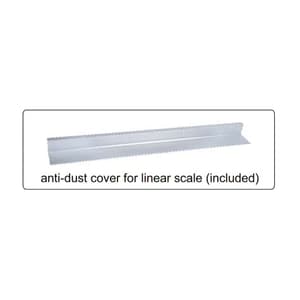

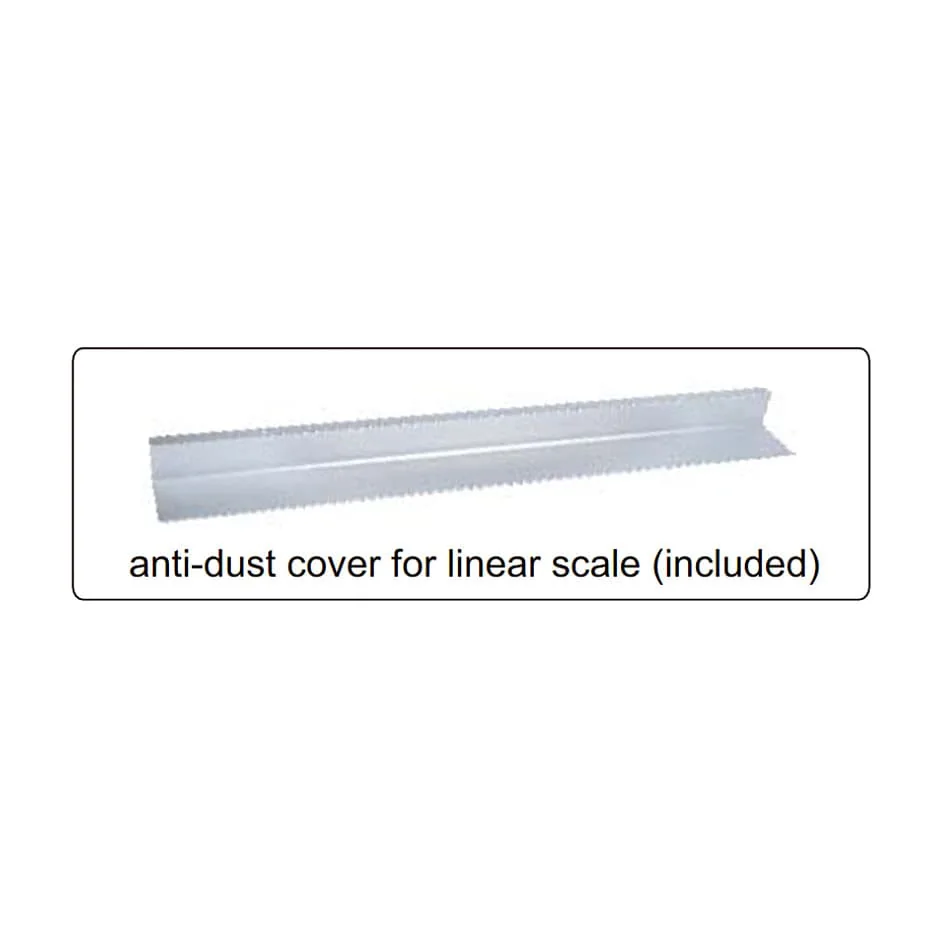

| Anti-dust cover for linear scale | 1 Pc |
| Mounting accessories for linear scale | 1 Package |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Application | Two-Axis |
|---|---|
| Scale input ports | 2 |
| Resolution | 1 um |
| Power supply | 110/220V, 50/60Hz |
| Dimensions | 295 x 85 x 45 mm |
