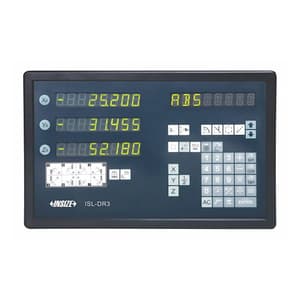

Insize 3-Axis Digital Readout System, ISL-DR3
Roll over the image to zoom in
Key Features
- Product Type: Digital Readout System
- Weight: 1.45 kg
- Application: Three-Axis
- Scale input ports: 3
- Power Supply: 110/220V, 50/60Hz
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹26,001 (Incl. of all taxes)
₹22,035 + ₹3,966 GST (18%)
MRP was MRP ₹31,478
Save 30%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- For ISL-A1, ISL-A5, ISL-B1, ISL-B5, ISL-C1, ISL-C5 series linear scales.

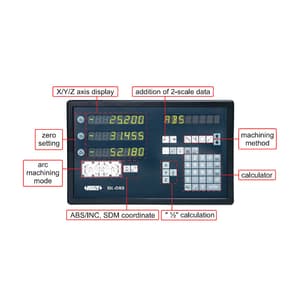

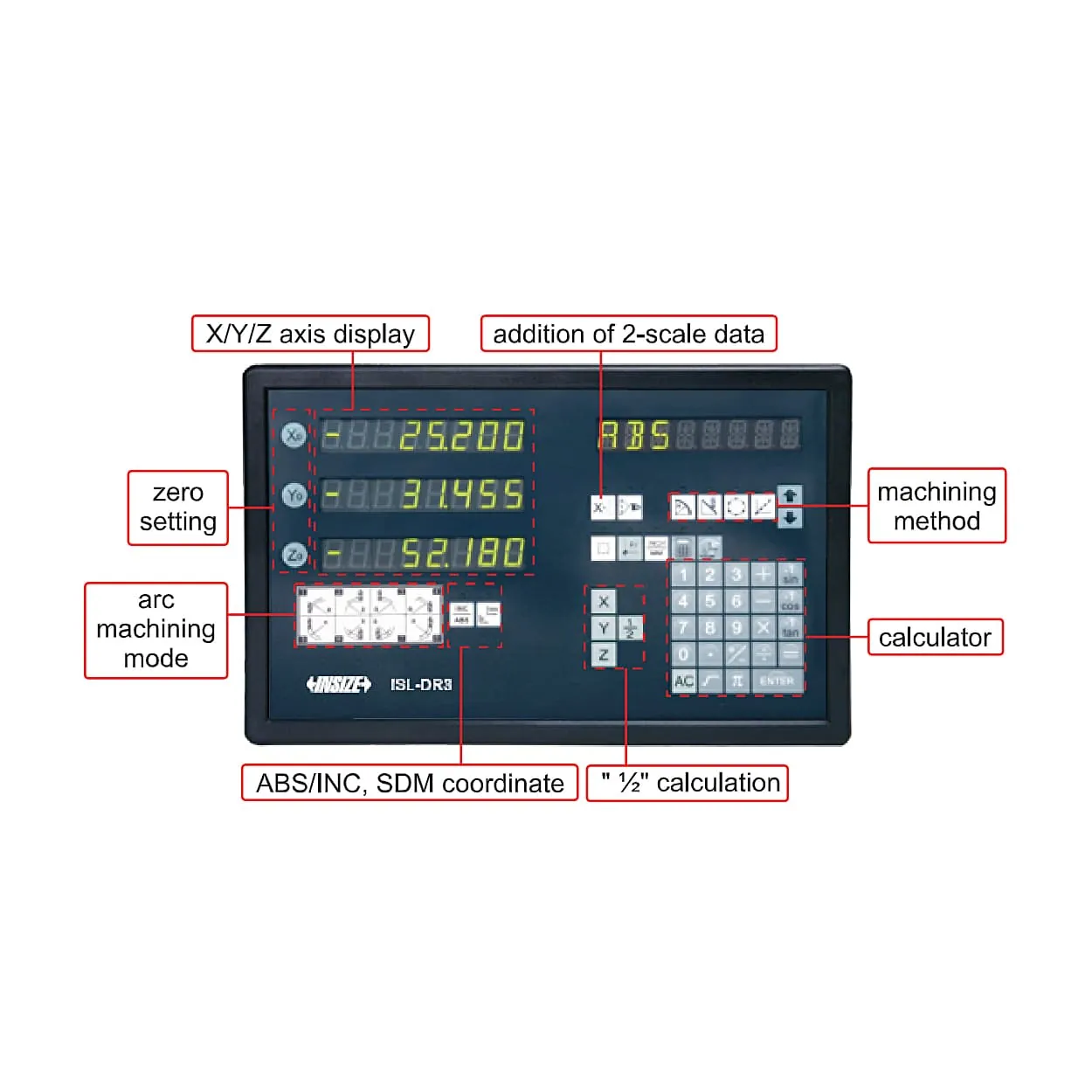

- Functions: Addition of 2-scale data, linearity error compensation, smoothing, RS232C interface unit, BCD code out, zero setting, preset, resolution setting, counting direction setting, inch/mm conversion, ABS/INC conversion, expansion/contraction coefficient setting, "½" calculation, detecting RI, bolt-hole circle machining, ramp circle machining.
What's Included in this Package:
| Main Unit | 1 pc |
| Mounting Bracket | 1 pc |
| Ground Cable | 1 pc |
| RS232C Cable | 1 pc |
| Software Flash Disk for RS232C | 1 pc |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Application | Three-Axis |
|---|---|
| Scale input ports | 3 |
| Resolution | 0.05μm, 0.1μm, 0.2μm, 0.5μm, 1μm, 2μm, 5μm, 10μm, 20μm, 50μm |
| Power Supply | 110/220V, 50/60Hz |
| Dimensions | 295 x 185 x 45 mm |
