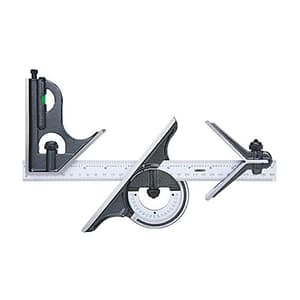

Insize 300 mm Combination Square Set, 2278-180
Roll over the image to zoom in
Key Features
- Product Type: Combination Square Sets
- Remark: 4-piece set
- Blade Length: 300 mm / 12 Inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹6,967 (Incl. of all taxes)
₹5,904 + ₹1,063 GST (18%)
MRP was MRP ₹8,812
Save 33%
3 Business Days
1
84799090
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights

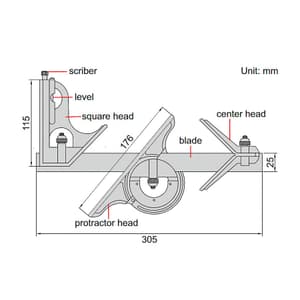

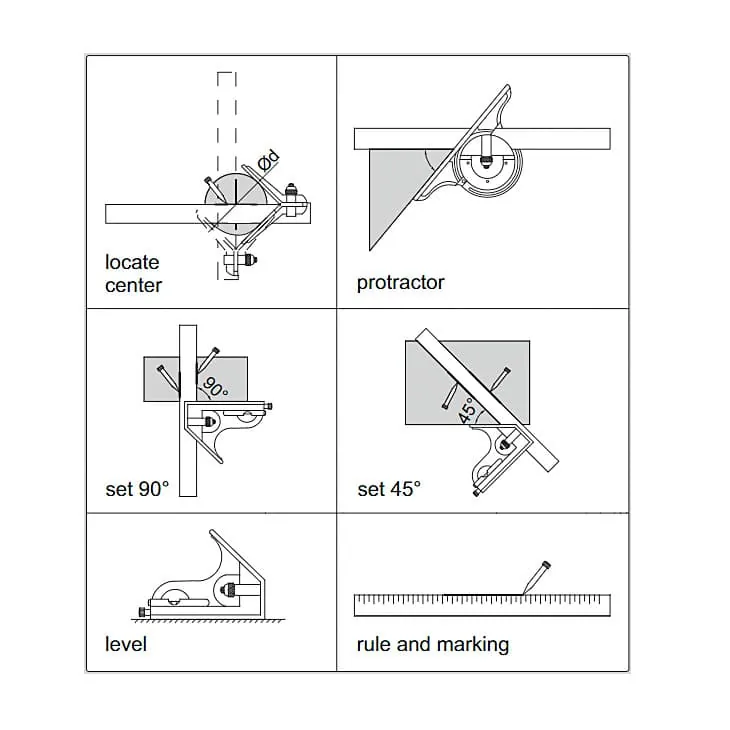

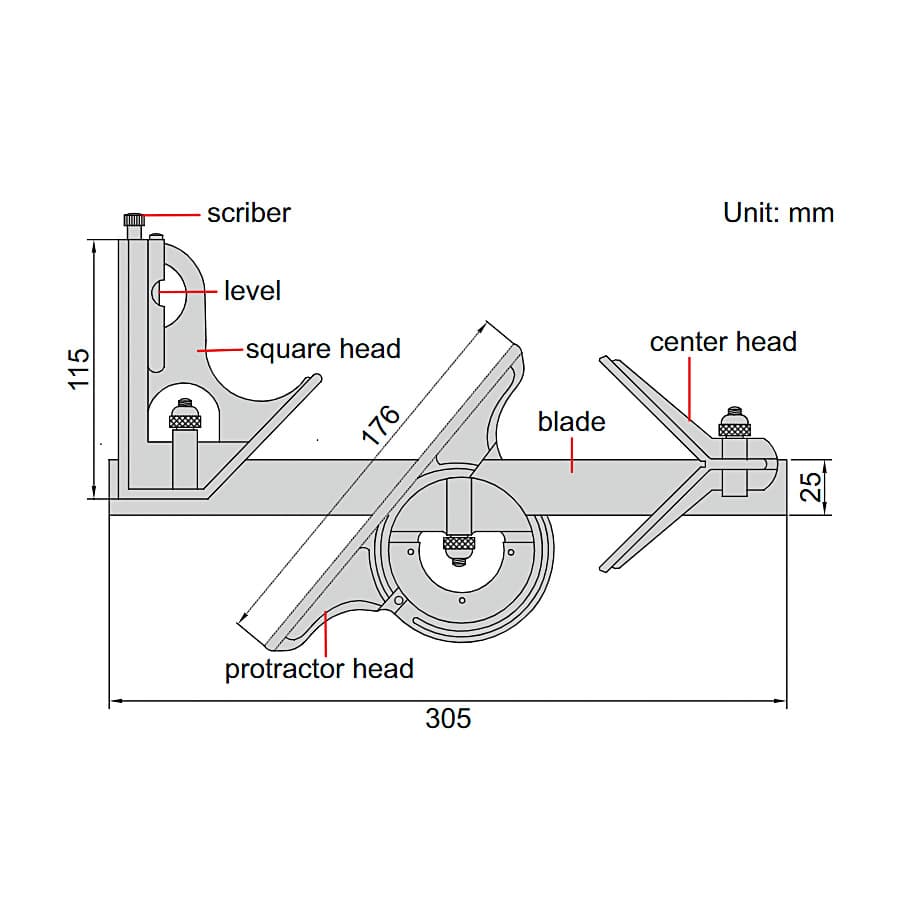

- Center head (made of cast iron): to locate the center of cylinders with the diameter (Ød): 30-100mm accuracy: ±0.15mm
- Protractor head (made of cast iron): set the blade at the desired angle to an edge of a workpiece, and can be used to measure angles range: 0-180° accuracy: ±20min.
- Squarehead (made of cast iron): set the blade at 90° or 45° to an edge of a workpiece
- accuracy: +8min for 90° square,
- +10min for 45° square
- Blade (made of stainless steel): range: 300mm/12", graduation:
- 0.5mm and 1/32" on the front face, 1mm and 1/64" on the back face
- Optional accessory: rigid rule (code 7113)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Material | Stainless Steel |
|---|---|
| Remark | 4-piece set |
| Blade Length | 300 mm / 12 Inch |
