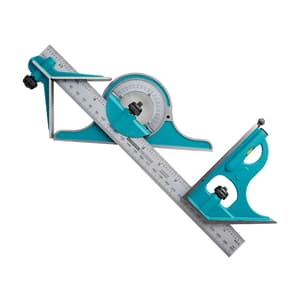

Kristeel 4 Pcs Precision Combination Try & Meter Square Set In Chrome Finish, 1516 KP
Roll over the image to zoom in
Key Features
- Product Type: Combination Square Sets
- Range: 0-12" & 0-180°
- Width (mm): 25 mm
- Thickness (mm): 2 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,653 (Incl. of all taxes)
₹4,791 + ₹862 GST (18%)
MRP was MRP ₹6,844
Save 30%
3 Business Days
1
90173010
Download Product LeafletNot available
Download Kristeel Shinwa CatalogueNot available
Download Kristeel Shinwa CatalogueNot available
Highlights
Its is made from Steel Precision Investment Casting with smooth finish of casting heads all over. All measuring scales are fine machined. All casting heads are fine powder coated.
- Accuracy maintained within 3 minutes in angles.
- Chrome plated hardened engraved blade 12″length.
- Graduation Types: – Metric and Inches.
- Linear Least count – 0.5 mm & angular – 1 degree.
- Rule of 150, 300, 600 mm can be manufactured on request
Uses:
- To check and mark 90° and 45° angles. To check surface level by spirit level. To check length / depth in mm/inches.
- To check different angles from 0° to 180°,
- To check surface level by spirit level.
- Finding and marking center point of round discs and shafts.
Graduation:
- Top side: 0.5 mm & 1/32 Inch
- Backside: 1 mm & 1/64 Inch
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range | 0-12" & 0-180° |
|---|---|
| Length (mm) | 304.8 mm |
| Width (mm) | 25 mm |
| Thickness (mm) | 2 mm |
| Type | Rigid |
| Standard | EEC-I |
| Graduation Types | Metric & Inches |
| Finish | Satin Chrome |
| Least Count | 0.2 mm & Angular 1° |
| Accuracy (±mm) | 0.2mm & 3 min / Pro head 15 min |
| Material | Stainless Steel Hardened Tempered & Steel casting |
