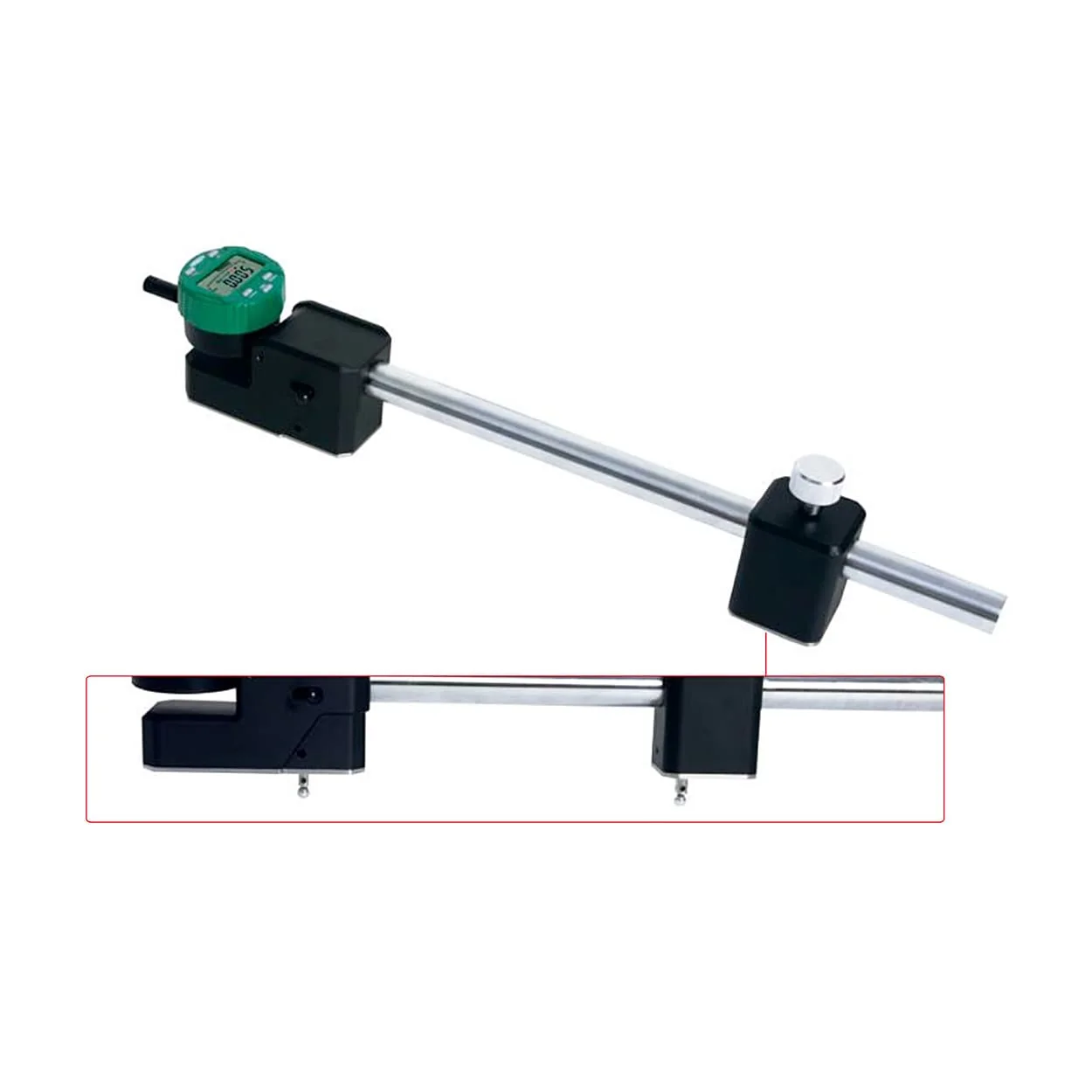

Insize 35 - 320 mm / 1.4 - 12.6 inch Digital External Measuring Gauge (Large Range), 2935-320
Roll over the image to zoom in
Key Features
- Product Type: Measuring Gauges
- Range (mm): 35 - 320 mm
- Range (Inches): 1.4 - 12.6 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹80,116 (Incl. of all taxes)
₹67,895 + ₹12,221 GST (18%)
MRP was MRP ₹98,399
Save 31%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Measure External dimensions
- Point height is adjustable, h=2-25mm
- CR2032 battery, automatic power off (time is adjustable)
- Data output
- Button function: on/off, inch/mm, zero, data preset, change measuring direction, absolute/incremental measurement
- Data Output Cable (Optional): 7350-51 (Need Receiver), 7302-40M
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (mm) | 35 - 320 mm |
|---|---|
| Range (Inches) | 1.4 - 12.6 inch |
| Resolution | 0.001 mm / 0.00005 inch |
| Accuracy | 5μm |
| Repeatability | 1μm |
| Movable Point Stroke | 5 mm / 0.02 inch |
