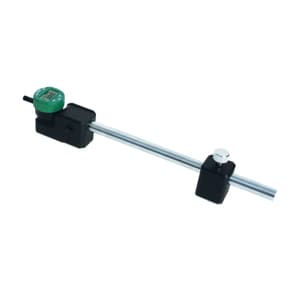

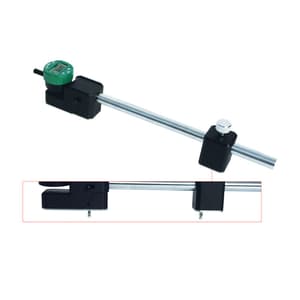

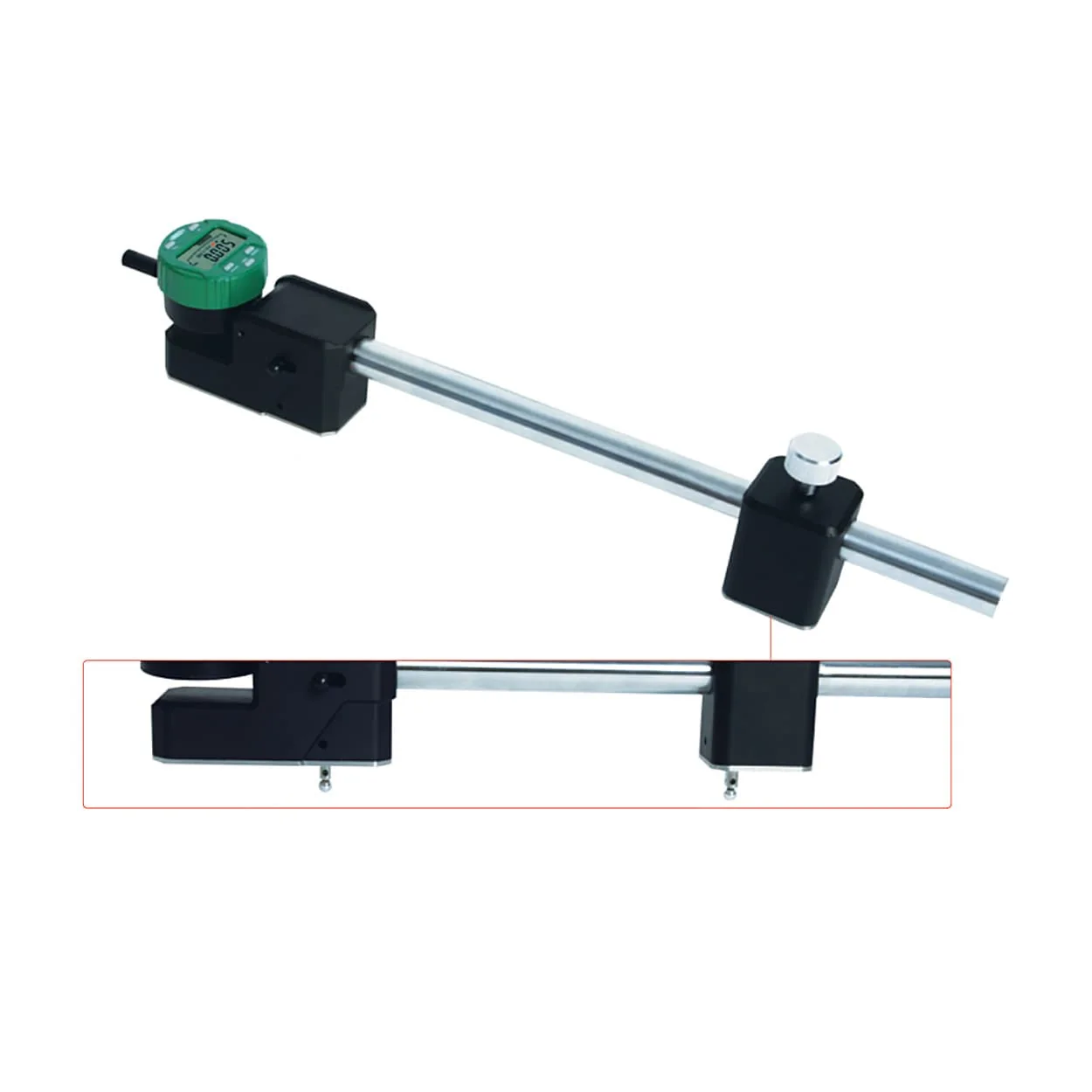

Insize 48 - 330 mm / 1.89 - 13 inch Digital Internal Measuring Gauge (Large Range), 2933-331
Roll over the image to zoom in
Key Features
- Product Type: Measuring Gauges
- Range (mm): 48 - 330 mm
- Range (Inches): 1.89 - 13 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹74,366 (Incl. of all taxes)
₹63,022 + ₹11,344 GST (18%)
MRP was MRP ₹90,032
Save 30%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Measure internal dimensions
- Point height is adjustable, h=2-25mm
- CR2032 battery, automatic power off (time is adjustable)
- Data output
- With transmission button and signal light reading in digital and analog display can be rotated by 320°
- Button function: on/off, inch/mm, zero, data preset, change measuring direction, absolute/incremental measurement, max./min./TIR measurement, tolerance Go and No-Go display
- Data Output Cable (Optional): 7315-51 (Need Receiver), 7302-40M
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (mm) | 48 - 330 mm |
|---|---|
| Range (Inches) | 1.89 - 13 inch |
| Resolution | 0.001 mm / 0.00005 inch |
| Accuracy | 5μm |
| Repeatability | 1μm |
| Movable Point Stroke | 5 mm / 2 inch |
