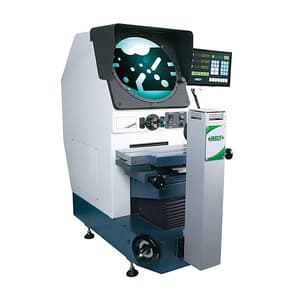

Insize 400 x 150 mm Horizontal Profile Projector with Edge Detector, ISP-A3000E
Roll over the image to zoom in
Key Features
- Product Type: Projector
- Weight: 160 kg
- Metal Stage Size: 400 x 150 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹11,72,035 (Incl. of all taxes)
₹9,93,250 + ₹1,78,785 GST (18%)
Out of Stock
15 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Contour illumination: 24V/150W halogen lamp, brightness is adjustable
- Surface illumination: 24V/150W halogen lamp (with 2 fibers), Position is Adjustable
Technical Data:
| Projector Screen | Diameter: Ø300mm | ||||
| Rotation Range: 0 - 360°, Resolution: 1 inch or 0.01° | |||||
| Reference Lines: Cross-hairs | |||||
| Lens | Magnification | 10X (included) | 20X (Optional) | 50X (Optional) | 100X (Optional) |
| View Field | Ø30 mm | Ø15 mm | Ø6 mm | Ø3 mm | |
| Working Distance | 77.7 mm | 44.3 mm | 38.4 mm | 25.3 mm | |
| Max. Workpiece Height | 90 mm | 90 mm | 90 mm | 90 mm |
Standard Delivery:
| Main unit | 1 Pc |
| 10 X lens | 1 Pc |
| Overlay chart clip | 4 Pc |
| Foot-switch | 1 Pc |
| Anti-dust cover | 1 Pc |
| Software (only for ISP-A3000E) and USB cable | 1 Pc |

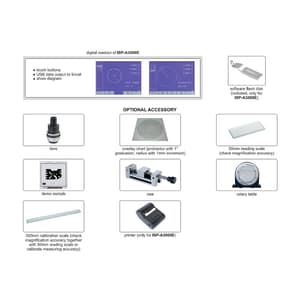

Optional Accessory:
- 20X lens (ISP-A3000-LENS20X)
- 50X lens (ISP-A3000-LENS50X)
- 100X lens (ISP-A3000-LENS100X)
- Overlay chart (ISP-A1000-CHART)
- 50 mm reading scale (ISP-A1000-SCALE50)
- 300 mm calibration scale (ISP-A1000-RULE)
- Swivel center support (ISP-A3000-SUPPORT)
- Demo sample (ISP-A1000-DEMO)
- V-block with clamp (ISP-A3000-VBLOCK)
- Rotary table (ISP-A3000-RTABLE)
- Vise (ISP-A3000-VlSE)
- Printer (only for ISP-A3000E) (ISP-A1000-PRINTER)
Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications

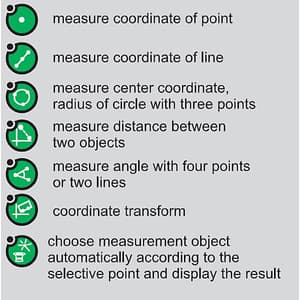

| Magnification Accuracy | ±0.08% |
|---|---|
| Metal Stage Size | 400 x 150 mm |
| Turning Range | ±15° |
| X-Y Stage Travel Range | 200 x 100 mm |
| X-Y Stage Travel Resolution | 0.5μm |
| X-Y Stage Travel Accuracy | (4+L/75)μm (L is the measuring length in mm) |
| Y (focus) Travel Range | 75 mm |
| Max. Load Capacity | 50 Kg |
| Display | X-Z stage travel, screen rotation |
| Output | RS232C, USB (Data Output to Excel) |
| Advanced Function | Programming for batch measurements |
| Power Supply | 220V, 50/60Hz |
| Dimensions (L x W x H) | 830 x 1090 x 1010 mm |
