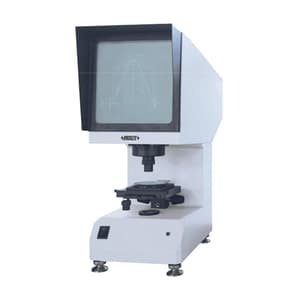

Insize 50X Magnification Impact Specimen Notch Projector, ISP-Z2
Roll over the image to zoom in
Key Features
- Product Type: Projector
- Weight: 20 kg
- Magnification: 50X
- Magnification of Lens: 2.5X
- Corresponding Standard: GB/T 229, ASTM E23, ISO 148, ISO 83 & EN10045
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,89,474 (Incl. of all taxes)
₹2,45,317 + ₹44,157 GST (18%)
MRP was MRP ₹3,55,532
Save 31%
7 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Suitable for inspecting the notching quality of impact specimens of Charpy V-notch (depth of 2mm) and U-notch (depth of 2mm)
- Standard sample drawings with tolerances, angle values and depth lines on the screen for intuitive and efficient comparison
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Magnification | 50X |
|---|---|
| Magnification of Lens | 2.5X |
| Magnification of Projector Lens | 20X |
| Diameter of Projector Screen | Ø200 mm |
| Size of Square Stage | 110 x 125 mm |
| Size of Round Stage | Ø90 mm |
| Diameter of Glass on Stage | Ø70 mm |
| Stroke of Stage (mm) | ±10 mm (X & Y axis) / ±12 mm (Z axis) |
| Range of Stage Rotation | 0 - 360° |
| Illumination (Tungsten halogen bulb) | 12V / 100W |
| Power Supply | AC 220V, 50Hz 150W |
| Dimensions (WxDxH) | 510 x 220 x 600 mm |
| Corresponding Standard | GB/T 229, ASTM E23, ISO 148, ISO 83 & EN10045 |
