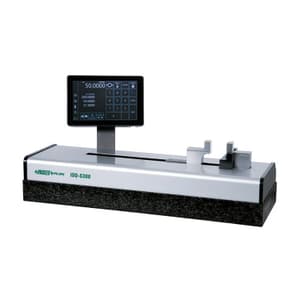

Insize-Plus 0.1 - 2000 mm Motorized Type Length Presetter, ISQ-S2000
Roll over the image to zoom in
Key Features
- Product Type: Presetter
- Weight: 650 kg
- Diameter Range (mm): 0.1 - 2000 mm (inter) / 40 - 2040 mm (Outer)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹74,46,021 (Incl. of all taxes)
₹63,10,187 + ₹11,35,834 GST (18%)
Out of Stock
15 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights

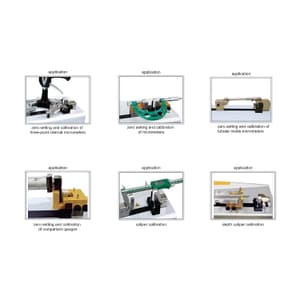

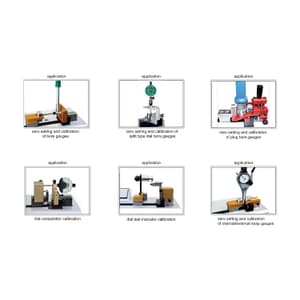

- Used to set and calibrate various measuring tools, such as bore gauges, multifunctional calipers, internal/external snap gauges, three-point internal micrometers, tubular inside micrometers, calipers, micrometers, etc
- Stores up to 100 positions (OD + ID)
- Can preset any position and save it
- Can set the step distance and move continuously
- The built-in steel strip grating ruler has the same temperature expansion coefficient as the steel workpiece, so length presetters can be used in workshops
- Connect to computers through Modbus protocol
Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Diameter Range (mm) | 0.1 - 2000 mm (inter) / 40 - 2040 mm (Outer) |
|---|---|
| Resolution | 0.5μm |
| Accuracy | (1.5+L/500)μm, (L is measuring length in mm) |
| Repeatability | 0.8μm |
| Zeroing Method | Motorized |
| Interface | Ethernet, USB |
| Environment Requirement | 10 - 35°C (Temperature) / 1°C/h (Temperature Change) |
| Power Supply | 100 - 240V |
