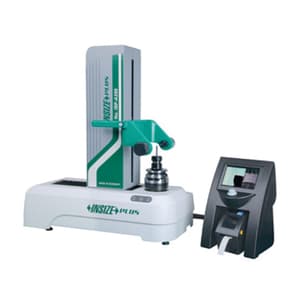

Insize-Plus 12X Magnification Tool Presetter, ISP-A350
Roll over the image to zoom in
Key Features
- Product Type: Presetter
- Weight: 80 kg
- Max. Tool Diameter (X axis): 320 mm
- Max. Tool Height (Z axis): 350 mm
- Magnification: 12X
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹28,04,561 (Incl. of all taxes)
₹23,76,747 + ₹4,27,814 GST (18%)
Out of Stock
15 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available

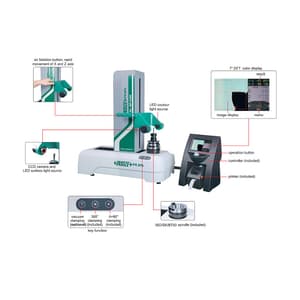

Highlights
- Check, preset and measure cutting tools
- Telecentric lens CCD camera system
- Use Bosch or Festo pneumatic components, THK guideways and HEIDENHAIN scales

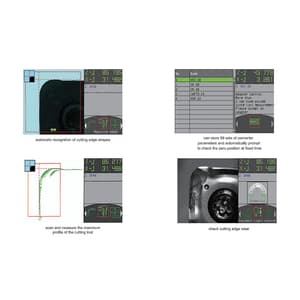

- Built-in 104 cutting edge shapes, automatic recognition
- Measuring modes: absolute, relative and incremental measurement
- Measuring radius, angle, concentricity, axial runout, etc
- Storage of 1000 tool parameters
- View, print and export measurement results
Package Content:
| Main unit | 1 pc |
| Controller | 1 pc |
| ISO/SK/BT50 Spindle (Including 360° Clamping & 4x90° clamping) | 1 pc |
| Printer | 1 pc |
| Priter Label Paper | 1 pc |
Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Max. Tool Diameter (X axis) | 320 mm |
|---|---|
| Max. Tool Height (Z axis) | 350 mm |
| Repeatability | 2μm (X & Z axis) |
| Resolution (X/Z axis) | 1μm |
| Camera | Color CCD |
| Image Proccessing Accuracy | 1μm |
| Magnification | 12X |
| View Field | 7 x 7 mm |
| Illumination | Adjustable LED Light |
| Spindle | ISO/SK/BT50 (Concentricity 2μm) |
| Data Output | USB, RS232 |
| Working Air Pressure | 0.6 - 0.8 MPa |
| Environmental Requirement | 5 - 35°C (Temperature) / 10 - 95% (Relative Humidity) |
| Power Supply | 100 - 240V, 50/60Hz |
| Dimension (LxWxH) | 1200 x 400 x 870 mm |
