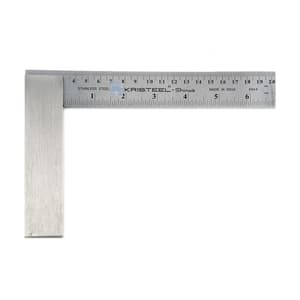

Kristeel 12 Inch / 300 x 175 mm Engineer Square (Graduated), ESG 12
Roll over the image to zoom in
Key Features
- Product Type: Engineer Square
- Length (mm): 300 mm
- Length (Inches): 12 inch
- Width (mm): 175 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,022 (Incl. of all taxes)
₹866 + ₹156 GST (18%)
MRP was MRP ₹1,237
Save 30%
3 Business Days
1
90173010
Download Product LeafletNot available
Download Kristeel Shinwa CatalogueNot available
Download Kristeel Shinwa CatalogueNot available
Highlights
These precision ground and hardened all steel engineer’s squares are ideal for setting up tools, aligning blades, and ensuring parts are set up properly. All surfaces are ground to ensure they are straight and parallel.
Unlike wooden and adjustable squares, the grinding process helps ensure the engineer’s square is always accurate. The beam is grooved at inside corner for clearance of sawdust or dirt. The blade length is measured from the inner edge to the tip. Squareness accuracy is 0.002″. As per DIN std.
Features:
- This square is made out of steel stock and a hardened blade.
- The blade is fixed to the stock by taper pins.
- All faces are precision ground.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Type of Product | Graduated Square |
|---|---|
| Length (mm) | 300 mm |
| Length (Inches) | 12 inch |
| Width (mm) | 175 mm |
| Thickness (mm) | Blade 1.5 & Stock-15 |
| Type | Rigid |
| Least Count | 1 mm |
| Accuracy | EEC-I (+/- 0.2mm) |
| Accuracy (±mm) | Perpendicularity 0.051 |
| Graduation | 1mm/1mm on Both Side |
| Standard | DIN875, GRADE II |
| Finish | Polished |
| Material | Blade: Stainless Steel / Stock: Tool Steel |
