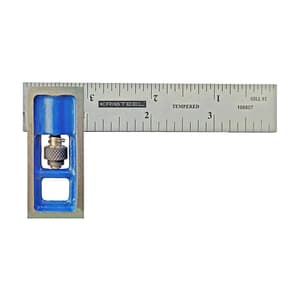

Kristeel 4 Inch / 100 x 19 mm Double Square, DS04
Roll over the image to zoom in
Key Features
- Product Type: Engineer Square
- Length (mm): 100 mm
- Length (Inches): 4 inch
- Width (mm): 19 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹772 (Incl. of all taxes)
₹654 + ₹118 GST (18%)
MRP was MRP ₹872
Save 25%
3 Business Days
1
90173010
Download Product LeafletNot available
Download Kristeel Shinwa CatalogueNot available
Download Kristeel Shinwa CatalogueNot available
Highlights
These precision ground and hardened all-steel Flat squares are ideal for setting up tools, aligning blades, and ensuring parts are set up properly. All Edges are ground to ensure they are straight and parallel.
Features:
- Graduations: Top side 1/32" &1/64" / Bottom side 1/8" & 1/16"
- Angular- Linear- EEC-Class-1. Squareness as per federal Std. 0.038mm
- Finish: Satin Chrome Plated / Base Painted
- Material: Blade in Stainless Steel / Base in CI Casting.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Type of Product | Graduated Square |
|---|---|
| Length (mm) | 100 mm |
| Length (Inches) | 4 inch |
| Width (mm) | 19 mm |
| Thickness (mm) | 2 mm |
| Type | Rigid |
| Least Count | 1/64 inch |
| Accuracy (±mm) | Grad. 0.2 & Angle 0.025 |
