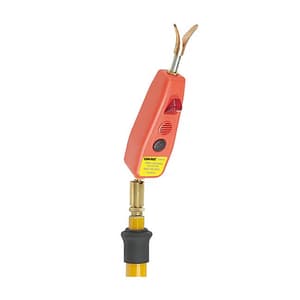

Kusam-Meco 6kV - 36.5kV Telescopic High Voltage Detector, 230 HD
Roll over the image to zoom in
Key Features
- Product Type: Detectors
- Weight: 485 g
- Voltage Range: 6kV - 36.5kV
- Operating Temperature: -10°C ~ 50°C
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹21,806 (Incl. of all taxes)
₹18,480 + ₹3,326 GST (18%)
MRP was MRP ₹23,100
Save 20%
3 Business Days
1
90318000
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
The detector detects high and extra high voltage in AC lines. An elongated insulated rod permits the checking of high-tension circuits at a safe distance for live voltage. Also, it is telescopic compact, light-weight, easy to use and handy.
Features:
- Telescopic, Compact, lightweight, and Easy to use.
- High-voltage detection in high-tension circuits.
- Easy to recognize indications Intermittent lighting in RED of a high-intensity light emitting diode and the intermittent audible sound of an electronic buzzer is easily recognizable in full daylight, noisy locations.
- Waterproof: The detecting head, being tightly enclosed, is free from any trouble due to dust, or water.
Distance & Voltage Chart:
| Distance | Voltage |
| 10 cm | 36 KV |
| 5 cm | 25 KV |
| 2 cm | 15 KV |
| Upto 11KV | By contact method |
Safety:
- IEC / EN61243-1, 60068-2-6, 60068-2-32, 60068-2-14
- Waterproof (detecting head impervious to water)
Package Content:
- Voltage Detector
- Instruction manual
- Carrying Case
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Voltage Range | 6kV - 36.5kV |
|---|---|
| Operating Temperature | -10°C ~ 50°C |
| Storage Temperature | -20°C ~ 60°C |
| Battery | 2 Button Cells Lr44 (1.5V) |
| Operating start Voltage | 2.7kV (To Ground) |
| Frequency | 50 - 60Hz |
| Withstand Voltage (On Insulating Rod) | 100kV / 300mm : 5 minutes |
| Display Light | Flashing Red Light |
| Display Sound | Intermittent Sound 50dB Apart 3m |
| Construction | Water Proof (Detecting Head Impervious To Water) |
| Insulation Resistance | 2000M Ohms min by 1kV / DC Megger At The Same Testing Location As Withstand Voltage |
| Overall Length | Retracted: 893 ± 50 mm / Extracted: 1520 ± 50 mm |
| Leakage Current | Less Than 100μA At Withstand Voltage Test |
