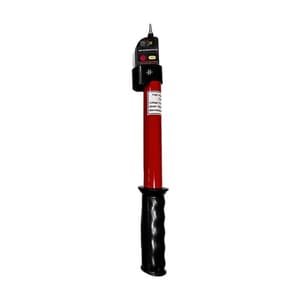

Kusam-Meco Contact High Voltage Detector, KM-CVD-33 KV
Roll over the image to zoom in
Key Features
- Product Type: Detectors
- Retracted Length: 1' 3.5"
- Extended Length: 5' 2"
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹4,177 (Incl. of all taxes)
₹3,540 + ₹637 GST (18%)
MRP was MRP ₹4,425
Save 20%
3 Business Days
1
90309090
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
• Using epoxy resin as material, it is ultra-light, ultra-high voltage, and high strength.
• Applications: Used for testing the power frequency voltage on alternating high-voltage lines and electrical equipment. Function of audible and visual alarm on the safe side.
• Expansion joint: According to the test distance, adjust the expansion rod.
• Insulated rubber handle: Makes it safe to use.
• Function of audible and visual alarm to enhance safety.
• Necessary security tools for electrical systems, and industrial and mining enterprise electricity work.
• Used for testing lines or equipment whether running with power frequency voltage & ensures the personal safety of lineman.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
• Applications: Used for testing the power frequency voltage on alternating high-voltage lines and electrical equipment. Function of audible and visual alarm on the safe side.
• Expansion joint: According to the test distance, adjust the expansion rod.
• Insulated rubber handle: Makes it safe to use.
• Function of audible and visual alarm to enhance safety.
• Necessary security tools for electrical systems, and industrial and mining enterprise electricity work.
• Used for testing lines or equipment whether running with power frequency voltage & ensures the personal safety of lineman.
Features:
- Safe and reliable
- High quality
- Ensure work safety
- Extension type, with full self-check function.
- Sound and light alarm, stable and reliable.
- Strong anti-interference ability.
- Easy to operate
- Ultra-light, high-strength
Technical Data:
| Test Items | Unit | Voltage Class Test |
| Trigger Voltage | kV | 5.25~14 |
| Leakage Current Test | μA | <500 |
| Sound Intensity | dΒ | >70 |
| Light Intensity | LX | 50000 |
| Voltage Test (DC kV) | kV | 35 |
| Temperature Test | °C | 30 |
| Moisture Test | % | 95% |
| Lifetime Test | times | 5000 |
| Arc-resistance Test | kV | 42 |
| Induced Voltage Test | kV | 5.25 |
| Curvature | mm | 140 |
| Quiescent Current | μA | <0.03 |
| Dynamic Current | μA | <15 |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Retracted Length | 1' 3.5" |
|---|---|
| Extended Length | 5' 2" |
| Handle Length | 5" |
| Sections of Telescopic Insulated Stick | 6 |
