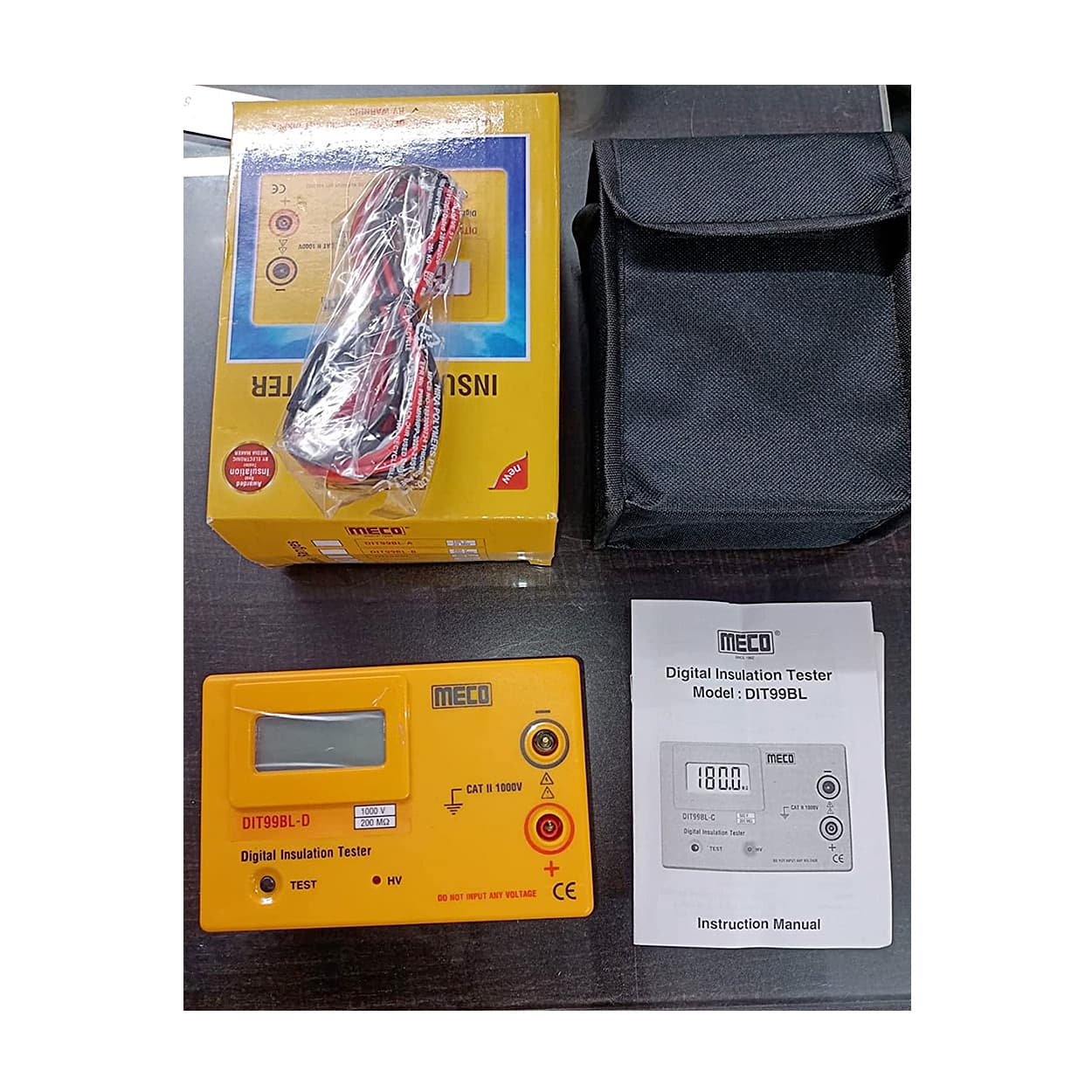

Meco 1000V - 2000M Ohms Digital Insulation Tester, DIT99BL - E
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 438.6 kg
- Test Voltage DC: 1000V
- Resistance: 0 - 2000 M Ohms
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,139 (Incl. of all taxes)
₹1,813 + ₹326 GST (18%)
MRP was MRP ₹2,133
Save 15%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights
- 3½ Digit 15mm LCD Display with Backlight
- High Voltage LED Indication
- Provision For Using Battery Adaptor
- High Accuracy ± 13% rdg+ 2 dgt)
- 5 Models with various Voltage & MOhm Ranges
- Single Person Push Button Operation
- Designed to Generally Confirm to IS 10656-1983
- Meets Requirement of IEC 61010, Installation Category II, 1000V Phase - Earth
- Terminal Voltage more than 85% of rated Voltage for Insulation Resistance Measurement from 10% to 100% of the Insulation Resistance Range
- Carrying Case
Applications
- Ideal for Insulation Resistance Measurement of
- Electrical Equipment [Motors, Transformers, Machines, etc.
- Electrical Cables for Distribution Networks
- Cables for Communication Networks
- House Hold Appliances (Washing Machines, Mixer, Toaster, etc.
- Industrial, Commercial & Residential Installations
Specifications:
| Display | 3% Digit LCD Display with Backlight, 15mm Digit Height, 1999 Count (Max.) |
| Accuracy: | ± (3% rdg + 2 dgt) at 27 Degree C +/-5 Degree C |
| Dielectric Strength: | 3.5 KV At 50 Hz For 1 Min Between Internal Terminal And Case |
| Insulation Resistance: | More than 50 M Ohm at 500V Between Circuit and Case |
| Conversion Rate | 2.5 sec |
| Over-Range Indication | "1" is Displayed |
| Power | 9V (6 x 1.5V AA) Battery |
| Operating temperature: | 0 Degree to 50 Degree C |
| Relative humidity: | 80 Percentage Maximum |
| Resistance: | 0 - 2000 M Ohms |
| Dimensions | 95 x 145 x 61.5 mm (approx.) |
| Low Battery: | When Battery Voltage Drops Below Operating Voltage, Pointer Cannot Reach Zero After Shorting The Output Terminals |
| Standards: | IS 10656 - 1983, IEC 61010, Installation Catagory II, 1000V Phase Earth |
| Standard Accessories | 1x Pair of Crocodile/Alligator Test Leads IRed & Black!1 x Carrying Case6x1.5V AA Batteries IFitted-Inl 1x Instruction Manual |
| Storage Temperature: | - 10 Degree C to 60 Degree C |
| Test Voltage DC: | 1000V |
| Ordering Information | Model, Battery Adapter (optional) |
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Test Voltage DC | 1000V |
|---|---|
| Conversion Rate | 2.5 sec |
| Power | 9V (6 x 1.5V AA) Battery |
| Resistance | 0 - 2000 M Ohms |
| Storage Temperature | - 10 Degree C to 60 Degree C |
| H.V. Warning | Red LED Indicator for High Voltage Warning (3% rdg 2 dgt) at 27°C 5°C |
