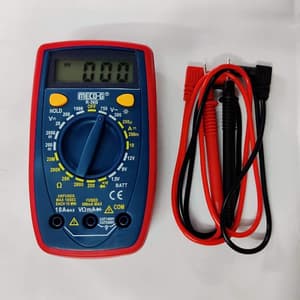

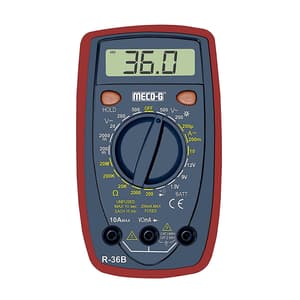

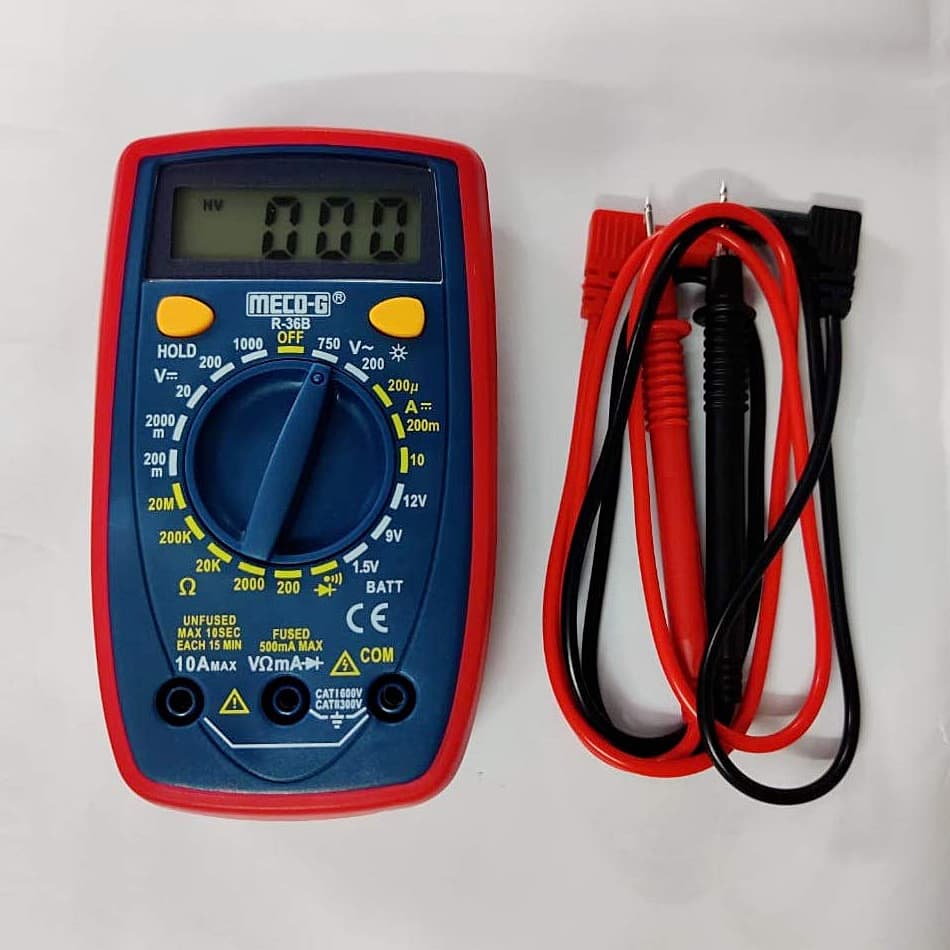

Meco-G 3-1/2 Digit / 2000 Counts Pocket Size Digital Multimeter, R-36B
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 156 g
- Voltage DC: 200mV/2000mV/20V/200V/500V
- Voltage AC: 200V/500V
- LCD Display size: 48 x 16mm
- Power: 9V Battery
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹788 (Incl. of all taxes)
₹668 + ₹120 GST (18%)
MRP was MRP ₹983
Save 32%
5 Business Days
1
–
Download Product LeafletNot available
Download Meco-G CatalogueNot available
Download Meco-G CatalogueNot available
Highlights
- MECO-G has introduced a new low cost series of 32 digit Digital Multimeters with backlight LCD display incorporating latest technology.
- These Digital Multimeters can measure DC Voltage, AC Voltage, DC Current, Resistance, Temperature and Battery Test Voltage.
- Additional Features include Diode Test, Transistor check, Continuity check, Data Hold and Back light.
- These Multi Meters can easily fit in the pocket and are used in various industries across various sectors for maintenance and manufacturing.

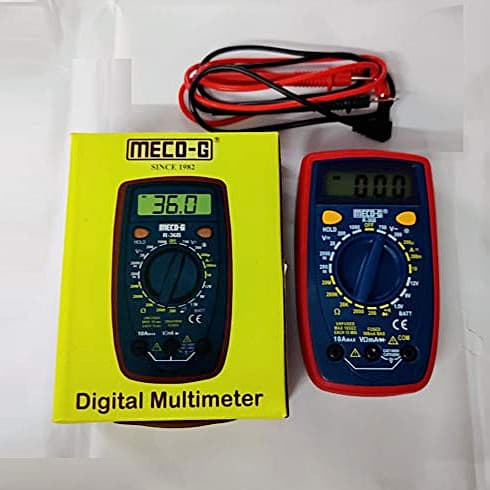

What's Included In This Package:
- 1x R-36B Pocket size Digital Multimeter
- 1x Instruction Manual
- 2x Test Leads
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Voltage DC | 200mV/2000mV/20V/200V/500V |
|---|---|
| Voltage DC (Accuracy) | ±(0.5%+3) |
| Voltage AC | 200V/500V |
| Voltage AC (Accuracy) | ±(1.2%+10) |
| Ampere DC | 200μA/200mA/10A |
| Ampere DC (Accuracy) | ±(1.0%+5) |
| Resistance | 200Ohms/2000Ohms/20KOhms/200KOhms/20KOhms |
| Resistance (Accuracy) | ±(0.8%+4) |
| Battery test | 1.5V/9V/12V |
| Continuity Buzzer | <300Ohms |
| LCD Display size | 48 x 16mm |
| Power | 9V Battery |
| Length x Width x Height (mm) | 130 x 73.5 x 35 mm |
