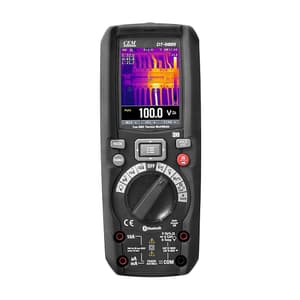

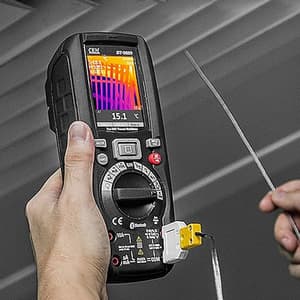

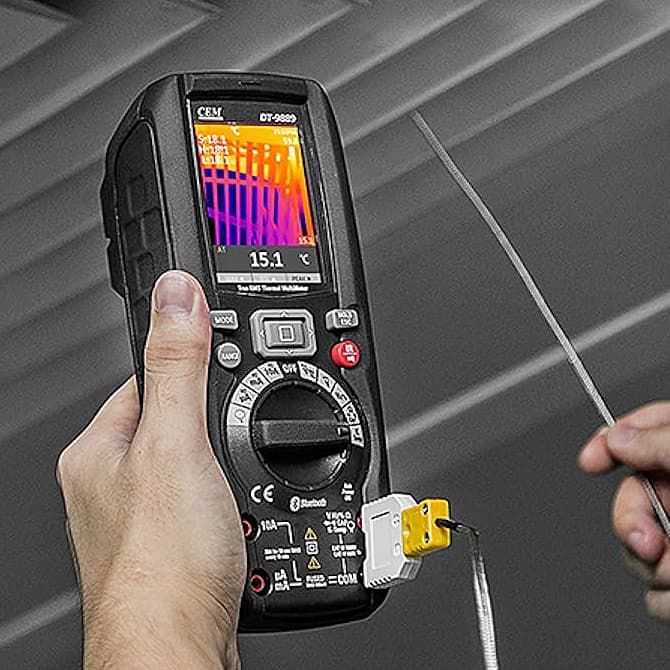

CEM 6000 Counts / 1000V Digital Multimeter With Built In Thermal Imager, DT-9889
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Temperature range: -20 to 260°C
- DC Voltage: 0 – 600m / 6 / 60 / 600 / 1000V
- DC Current: 0 – 600u / 6000u / 60m / 600m / 10A
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹79,943 (Incl. of all taxes)
₹67,748 + ₹12,195 GST (18%)
MRP was MRP ₹99,630
Save 32%
5 Business Days
1
90303100
Download CEM CatalogueNot available
Highlights
Get the advantage of two instruments in one. Introducing a full function Multimeter with an in-built full function thermal imager. Large 80x80 px thermal imaging sensor for crisp and clear thermal images, and professional grade Multimeter functions. Get comprehensive readout with the simultaneous display of all Multimeter readouts with live thermal images.
With the wireless freedom and ease of Bluetooth to connect with Smartphone and PC software for datalogging and in-depth analysis and single click report generation. Why carry two instruments when you get more with just one. With rechargeable battery which can be charged on the go. The ultimate smart instrument.
Features:
- Built-in Thermal Imager design quickly identifies hot spots without contact
- 240 x 320 2.8” TFT color LCD display
- Large LCD display 6000 counts
- Logging function with Trend Capture for easy review of logged data
- Long work time with li-ion battery
- Non contact Voltage Detection
- AC, AC+DC true-RMS measurements & 1kHz ACV, ACA bandwidth
- 3000A AC Current measurement with Flexible Clamp
- A/D convert fast sampling time: 10 Times/sec.
- Bargraph
- Peak capture (records transients as fast as 500μs)
- Min/Max/Average with Time stamp (records signal fluctuations)
- 80x80 Infrared resolution
- Bluetooth BLE instant share function
- Full featured smartphone App for Thermal image analysis and reporting with live Multimeter data
- Trend Capture and Data logging
- Free PC and Smartphone App
- Professional T-RMS Multimeter with built-in Thermal Imager
- 6000 Counts 2.8” TFT Color LCD Display
- Logging Function with Trend Capture
- 50Hz image frequency
- Flexible Current Clamp to measure up to 3000A AC

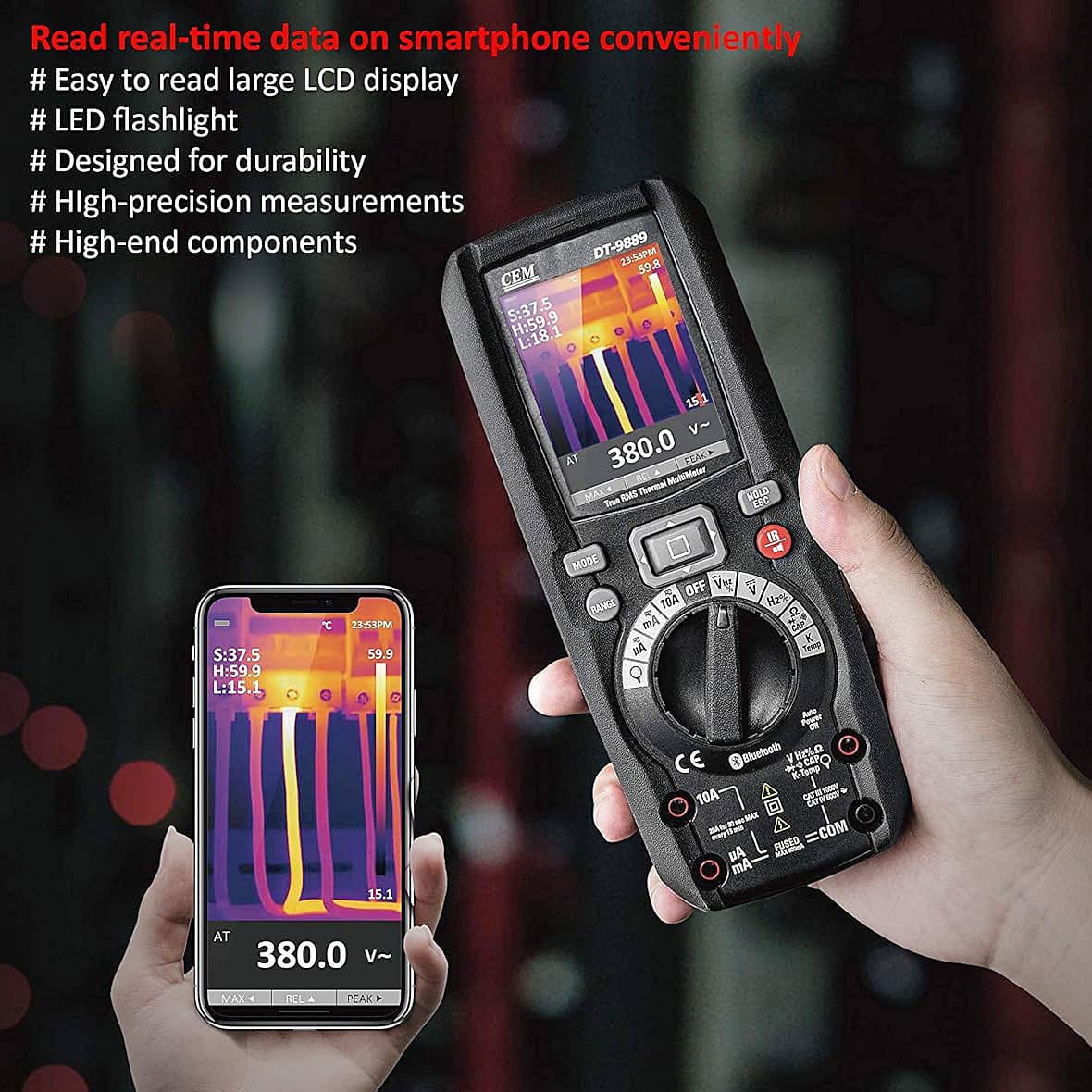

- Bluetooth connection for PC and Smartphone interface
- Free APP available on App-store and Google Play store

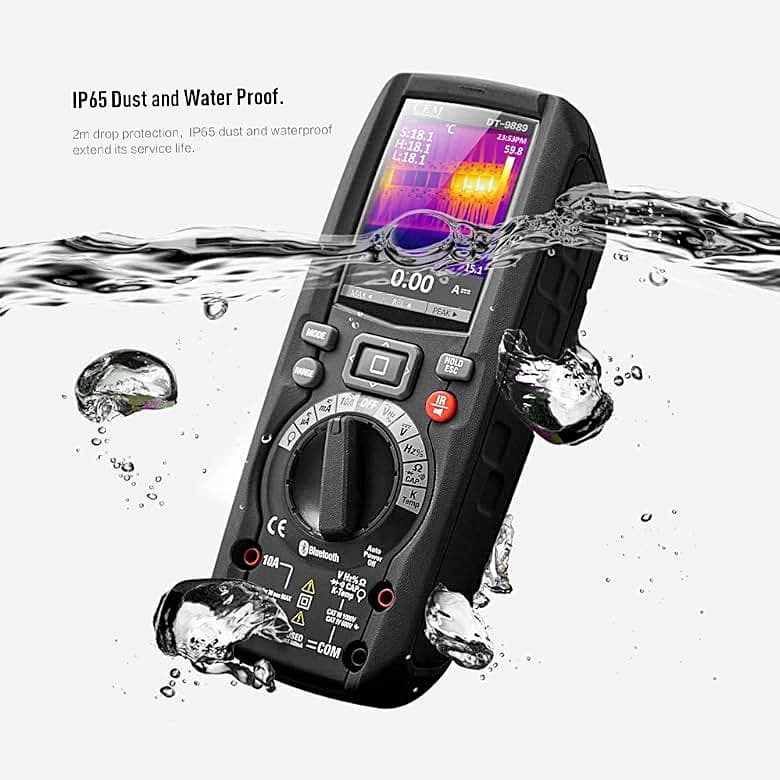

- Ingress Protection: IP65
- Waterproof and Dustproof
- Confirms to CAT-IV 600V, IEC 61010
- Re-chargeable battery and battery charger
- 80 x 80 pixel IR Resolution
- FOV: 21° X 21°
- IFOV 4.53mrad
- Focus Free
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

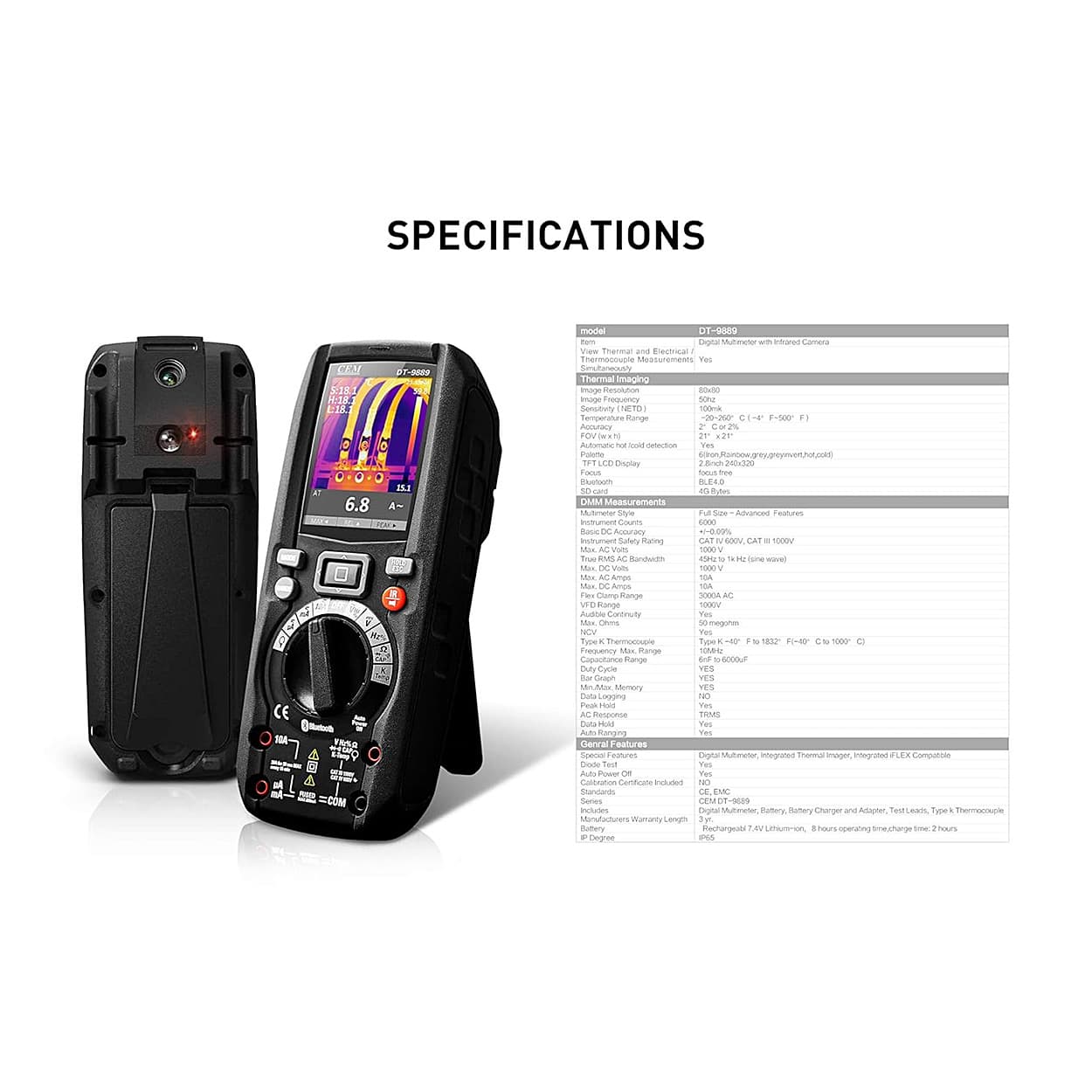

Specifications
| Temperature range | -20 to 260°C |
|---|---|
| Temperature Accuracy | ± 3°C |
| DC Voltage | 0 – 600m / 6 / 60 / 600 / 1000V |
| DC Voltage Accuracy | ±0.09% |
| AC Voltage T-RMS | 0 – 6 / 60 / 600 / 1000V |
| AC Voltage T-RMS Accuracy | ±0.8% |
| AC+ DC Voltage T-RMS | 0 – 6 / 60 / 600 / 1000V |
| AC+ DC Voltage T-RMS Accuracy | ±2.4% |
| DC Current | 0 – 600u / 6000u / 60m / 600m / 10A |
| DC Current Accuracy | ±0.9% |
| AC Current T-RMS | 0 – 600u / 6000u / 60m / 600m / 10A |
| AC Current T-RMS Accuracy | ±1.2% |
| AC Current through Flexible Clamp | 0 – 30 / 300 / 3000A |
| AC Current through Flexible Clamp Accuracy | ±0.8% |
| Resistance | 0 – 600 / 6k / 60k / 600k / 6M / 60M Ohms |
| Resistance Accuracy | ±0.5% |
| Frequency | 0 – 10MHz |
| Frequency Accuracy | ±0.09% |
| Capacitance | 0 – 60n / 600n / 6u / 60u / 600u / 6000uF |
| Capacitance Accuracy | ±1.5% |
| Low Pass Filter (VFD | 1000V |
| Temperature using K type sensor | -40 to 1000°C |
| Temperature using K type sensor Accuracy | ± 1.5% |
| Duty Cycle | 5% to 95% |
