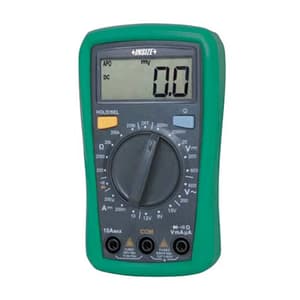

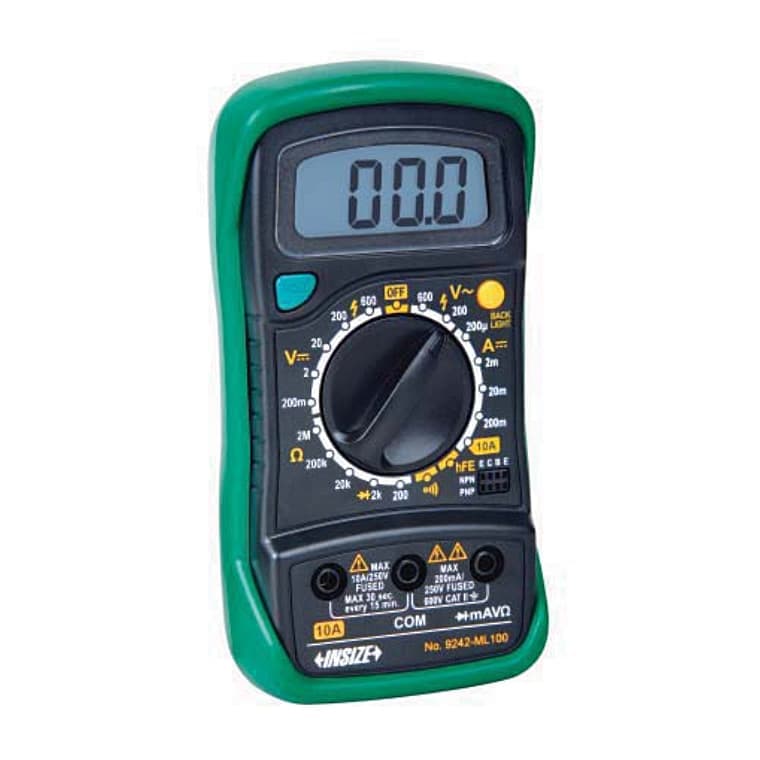

Insize 1999 Counts Mini Digital Multimeter (Basic Type), 9242-ML100A
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 206 g
- Display Counts: 1999 Counts
- Continuity Test: <50 ohm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,449 (Incl. of all taxes)
₹1,228 + ₹221 GST (18%)
MRP was MRP ₹2,082
Save 41%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Portable size with protective case
- Data hold
- Display with backlight
- Low battery indication
- Auto power-off
- Safety rating: CAT | 600V
Specification:
| Function | Range | Resolution | Accuracy ("d" is the least Reading) |
| DC Voltage | 200.0mV | 0.1mV | ±(0.7%+3d) |
| 2000mV | 1mV | ±(0.5%+2d) | |
| 20.00V / 200.0V / 600V | 0.01V / 0.1V / 1V | ±(0.7%+3d) | |
| AC Voltage (40 ~ 400Hz) | 200.0V / 600V | 0.1V / 1V | ±(1.2%+3d) |
| DC Current | 200.0µA / 200.0mA | 0.1µA / 0.1mA | ±(1.0%+2d) |
| 10.00A | 0.01A | ±(1.2%+5d) | |
| Resistance | 200.0 ohm | 0.1 ohm | ±(1.0%+2d) |
| 2000 ohm / 20.00K ohm / 200.0k ohm | 1 ohm/0.01k ohm/0.1k ohm | ±(0.8%+2d) | |
| 20.00M ohm | 0.01M ohm | ±(1.2%+3d) |
Standard Delivery:
| Main unit | 1 pc |

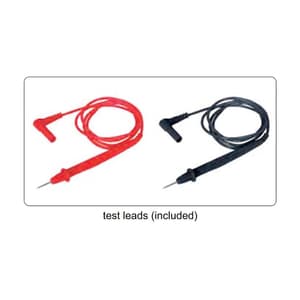

| Test Lead | 2 pcs |
| AAA battery | 2 pc |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Counts | 1999 Counts |
|---|---|
| Battery Test | 1.5V / 9V / 12V Battery Check |
| Diode Test | 2.1V DC (Open Circuit Voltage) |
| Continuity Test | <50 ohm |
| Power Supply | 2 x 1.5V AAA Batteries |
| Dimension (mm) | 134 x 77 x 47 mm |
