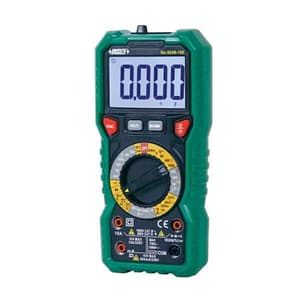

Insize 600 V - 1000 V Digital Multimeter With Jack Indicator Light, 9246-180
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 0.42 kg
- Continuity measurement: <30
- Power: 2 x 1.5V AA batteries
- Dimension: 188 x 88 x 50mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,258 (Incl. of all taxes)
₹4,456 + ₹802 GST (18%)
Out of Stock
3 Business Days
1
9030
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Jack indicator light: jacks flash green, to indicate the corresponding jacks for probes
- Non-connection AC voltage detection, and judge the strength through light and buzzer
- Self-calibration when power on to ensure accuracy
- LIVE firewire recognition
- Double color backlight (orange backlight prompts high voltage or current: the orange backlight automatically lights up whenvoltage is larger than 80V or the current is larger than 1A)
- Large range capacitance meter 100mF
- True RMS
- Battery test function
- Max/Min mode
- Data hold
- Low battery display
- Automatic power off
- Safety rating: CAT III 1000V, CAT IV 600V
Specification:
| Function | Range | Resolution | Accuracy |
| DC Voltage | 600mV/6V/60V/600V/1000V | 0.1mV/0.001V/0.01V/0.1V/1V | ±(0.5%+3) |
| AC Voltage | 6V/60V/600V/750V | 0.001V/0.01V/0.1V/1V | ±(0.8%+5) |
| DC Current | 60µA/60mA/600mA/10A | 0.01µA/0.01mA/0.1mA/0.01A | ±(1.2%+3) |
| AC Voltage | 60mA/600mA/10A | 0.01mA/0.1mA/0.01A | ±(1.5%+3) |
| Resistance | 600/6k/60k/600k | 0.1/0.001k/0.01k/0.1k | ±(1.0%+3) |
| 6M/60M | 0.001M/0.01M | ±(1.5%+3) | |
| Capacitance | 10nF/100nF/1000nF/10µF/100µF/1000µF | 0.001nF/0.01nF/0.1nF/0.001µF/0.01µF/0.1µF | ±(4.0%+5) |
| 10mF/100mF | 0.001mF/0.01mF | ±(5.0%+5) | |
| Frequency | 10Hz/100Hz/1000Hz/10kHz/100kHz/1000kHz | 0.001Hz/0.01Hz/0.1Hz/0.001kHz/0.01kHz/0.1kHz | ±(1.0%+3) |
| 10MHz | 0.001MHz | ±(3.0%+3) | |
| Duty | 1~99% | 0.1% | ±(3.0%+3) |
| Diode measurement | forward DC current 2.5mA, reverse DC voltage 3.0V |
Standard Delivery:
| Main unit | 1 pc |

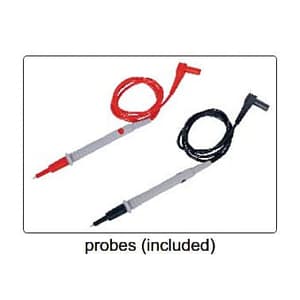

| Probe | 2 pcs |
| Battery (AA) | 2 pc |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Continuity measurement | <30 |
|---|---|
| Power | 2 x 1.5V AA batteries |
| Dimension | 188 x 88 x 50mm |
