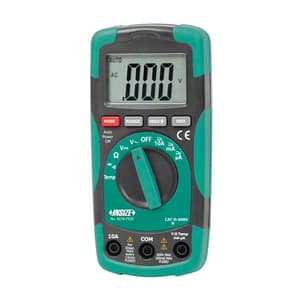

Insize 2000 Counts Digital MultiMeter, 9216-F520
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 255 g
- Display Counts: 2000 Counts
- Continuity Check: Less than 100 Ohm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,902 (Incl. of all taxes)
₹3,307 + ₹595 GST (18%)
MRP was MRP ₹4,593
Save 28%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- 2000 Counts digital display
- Auto-ranging (except 200mV AC)
- Data hold
- Max hold
- Display with backlight
- Low battery indication
- Auto power off
- Safety rating: CAT III 600V
Technical Data:
| Function | Range | Resolution | Accuracy ("d" is the least reading) |
| DC Voltage | 200mV | 0.1mV | ±(0.05%+2d) |
|
|
±(1.0%+2d) | |
| 600V | 1V | ±(1.2%+2d) | |
| AC Voltage (50 - 60Hz) | 200mV | 0.1mV | ±(1.5%+30d) |
| 2V | 0.001V | ±(1.2%+3d) | |
|
|
±(1.5%+3d) | |
| 600V | 1V | ±(2.0%+4d) | |
| DC Current | 200μA | 0.1μA | ±(1.0%+3d) |
|
|
±(1.5%+3d) | |
| 10A | 0.01A | ±(2.5%+5d) | |
| AC Current (50 - 60Hz) | 200μA | 0.1μA | ±(1.5%+5d) |
|
|
±(1.8%+5d) | |
| 10A | 0.01A | ±(3.0%+7d) | |
| Resistance | 200Ω | 0.1Ω | ±(1.2%+4d) |
| 2kΩ | 0.001kΩ | ±(1.0%+2d) | |
|
|
±(1.2%+2d) | |
| 20MΩ | 0.01MΩ | ±(2.0%+3d) | |
| Temperature (Type-K) | -50°C to 1000°C | 1°C | ±(3.0%+5°C) |
| -58°F to 1832°F | 1°F | ±(3.0%+8°F) |

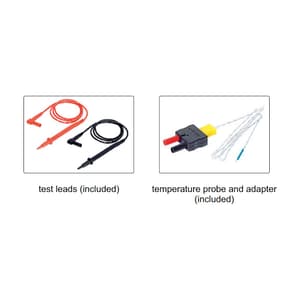

What's Included in this Package:
| Digital Multimeter | 1 pc |
| Thermocouple Adapter | 1 pc |
| Temperature Probe | 1 pc |
| 9V Battery | 1 pc |
| Test Lead | 2 Pcs |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Counts | 2000 Counts |
|---|---|
| Continuity Check | Less than 100 Ohm |
| Power Supply | 9V Battery |
| Dimension (L X W X H) | 150 x 70 x 48 mm |
