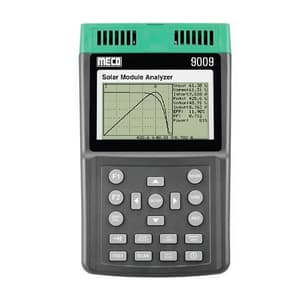

Meco Solar Module Analyzer (Photovoltaic I-V Curve Tester), 9009
Roll over the image to zoom in
Key Features
- Product Type: Solar Analyzers
- Weight: 1160 g
- Resolution: 1mV, 1mA
- Light Source: 10 W/m ~ 1000 W/m
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,70,511 (Incl. of all taxes)
₹1,44,501 + ₹26,010 GST (18%)
MRP was MRP ₹1,70,001
Save 15%
30 Business Days
1
90303390
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights
Solar Module Analyzer (Photovoltaic I-V Curve Tester): 60V, 12A (500W Capability), Measures: Vnow, Voc, Isc, Pmax, VmaxP, ImaxP, Efficency and Fill Factor With PC Connectivity, Memory Record and Backlight Display
Features:
- I-V Curve Test for Solar Panel / Module / Cell
- Max. Solar Cell/Module Power / Cell Power(Pmax) search by Auto-Scan
- Capability: 60V, 12A
- Best Resolution: 1mV , 1mA
- Manual Single Point I-V Test
- Max. Voltage (Vmaxp) at Pmax
- Max. Current (Imaxp) at Pmax
- Voltage at Open Circuit (Vopen)
- Current at Short Circuit (Ishort)
- I-V Curve with Cursor to Display each Data Point
- Efficiency (%) Calculation of Solar Panel
- Real Time data logging
- RS232C (to USB Bridge) Cable for PC
- Communicate with PC via USB Cable
- AC Adaptor and Rechargable Lithium Battery
- Memory Size : 100 Records
- Sampling Time of Data logging : 0 ~ 99 min
- Large LCD with Backlight
Application:
- Quality Control at Production Line
- Warehouse or Site of Installation
- Identify Requirements of Solar Power System
- Maintenance of Solar Panels
- Verify the Best Installation Angles of Solar Panels
- Research and Development
Accessory:
- User manual x 1
- Software Manual x 1
- Lithium battery 11.1V (Rechargeable) x 1
- RS232C (to USB Bridge) Cable x 1
- Software CD x 1, AC Adapter x 1
- Kelwin Clips(2 clips, banana plugs) x 1 set (10 max, 12A for 1 minute)
Specifications:
Rechargeable Lithium Battery, 3400mAh |
400 times of linear scan from 60V to 0V and 0A to 12A. |
100 records |
AC 110 ~ 240V Input, DC 15V / 1~3A Output |
EN 61326 - 1:2006 |
5ºC ~ 50ºC, <85% RH |
0.1% of full scale / ºC(<18ºC or > 28ºC) |
±1.2°(< 60°), Additional Temperature Induced Error±0.1°/°C from 23°C |
-20ºC ~ 60ºC, ≤ 75% RH |
257 x 155 x 57mm (approx.) |
Electrical Specifications:
(230 C±50 C, Four-Wire Measurement Maximum Power Limit is 500W)
DC Voltage Measurement
| Range | Resolution | Accuracy |
| 0 – 10V | 0.001V | ±1% ±(1% of Vopen ± 0.1V) |
| 10 – 60V | 0.01V | ±1% ±(1% of Vopen ± 0.1V) |
Vopen : Open Circuit Voltage of Solar Cell or Module
DC Current Measurement
| Range | Resolution | Accuracy |
| 0.01 – 10A | 1mA | ±1% ±(1% of Ishort ± 9mA) |
| 10 – 12A | 10mA | ±1% ±(1% of Ishort ± 0.09A) |
DC Current Simulation
| Range | Resolution | Accuracy |
| 0.01 – 10A | 1mA | ±1% ±9mA |
| 10 – 12A | 10mA | ±1% ±0.09A |
User Interface & Data Acquisition Software:
- Solar Module Analyzer is supplied with user friendly software for Data Storing and Analysis.
- Users can store Data (.CSV/.TAB) that can be read in MS EXCEL and Print Waveform / Graph via Printer
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Resolution | 1mV, 1mA |
|---|---|
| Light Source | 10 W/m ~ 1000 W/m |
| Data Logging | 0 ~ 99 min |
| Dimension | 257 x 155 x 57mm (approx.) |
| Battery Life | 400 times of linear scan from 60V to 0V and 0A to 12A |
