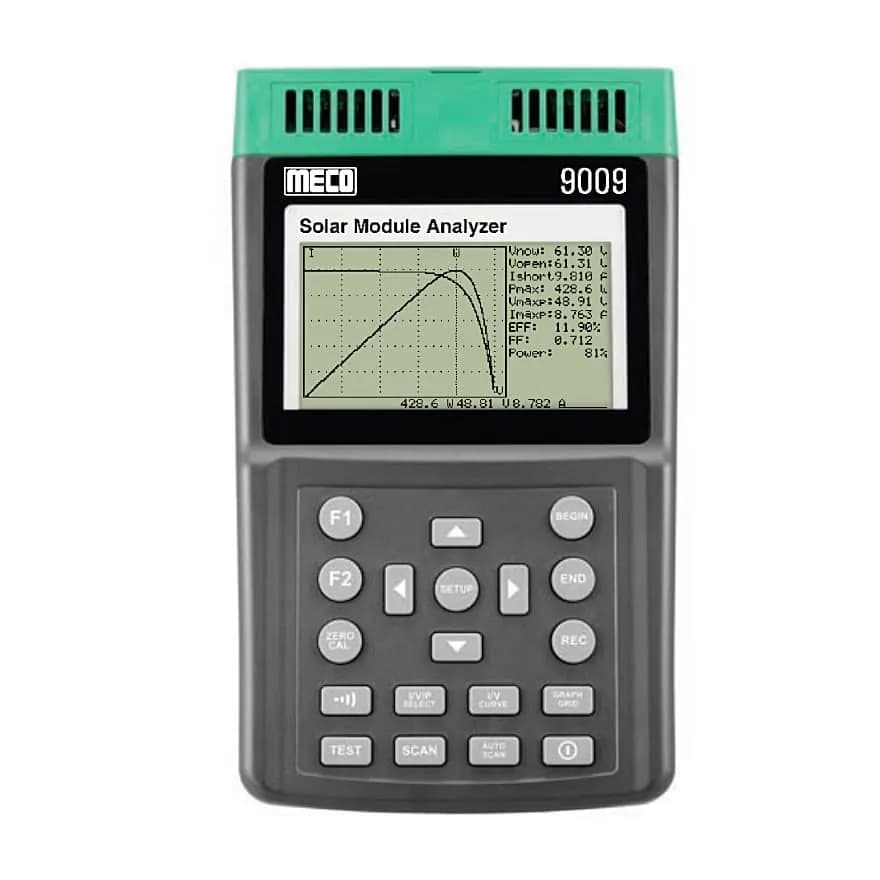

Meco Solar System Analyzer (Photovoltaic I-V Curve Tester) With DC Current Camp, AC Power Clamp, Thermo & Irradiance Meter, 9018BT + Solar15 + Solar21
Roll over the image to zoom in
Key Features
- Product Type: Solar Analyzers
- Weight: 1580 g
- Pmax: 1000V, 12A
- Memory Size: 512K Bytes
- Capability: 12000W
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,24,702 (Incl. of all taxes)
₹2,75,171 + ₹49,531 GST (18%)
MRP was MRP ₹3,23,730
Save 15%
Out of Stock
15 Business Days
1
90303390
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights
Solar Module Analyzer (Photovoltaic I-V Curve Tester) With DC Current Camp, AC Power Clamp, Thermo & Irradiance Meter with Bluetooth Connectivity: Max Power 1000V, 12A (12000W capability), Measures Single Panel and String OPC STC Data with Vnow, Voc, Isc, Pmax, VmaxP, ImaxP, Efficency and Fill Factor, Real Time Irradiation and Solar Panel Temperature, Inverter Efficency (DC to AC) With PC (USB) Connectivity, Memory Record and Backlight Display
Features:
- I-V curve test for solar system
- Max. solar system power (Pmax) search by Auto-scan: 1000V, 12A (12000W capability)
- The analyzer and the Remote Solar Detector is connected by Bluetooth wireless communication (Bluetooth 2.1 + EDR Class 1).
- The Remote Solar Detector is moisture-proof.
- Intelligent test logic with no personnel attendance required in the field.
- Solar system analyzer waits and tests the system until appropriate sunlight irradiance is detected.
- Max. voltage (Vpm) at Pmax, Max. current (Ipm) at Pmax
- Voltage at open circuit (Voc), Current at short circuit (Isc)
- Efficiency (%) calculation of solar system
- Temperature measurement of solar panels
- Irradiance measurement of sun light
- Series resistance (Rs) calculation of solar panels
- With data logging/open function, the I-V curves of solar system can be analysed / recorded for a period of time (e.g. 60 min.)
- Conversion of I-V curve under OPC to data under standard test condition (STC) based upon IEC standard
- Provide Operating Condition (OPC) and Standard Test Condition (STC) test reports for verification of solar panel performance (OK, or NO OK)
- Users can set up the parameters of solar panels
- Users can set up the series number of solar panels.
- Parameters of many solar panels can be measured in one measurement.
- The irradiances and temperatures of solar panels can be continuously measured, monitored and recorded.
- Continuously measure/monitor/record the DC power output of solar system and the AC power output of inverter (1 phase or balanced 3 phases)
- Calculate the efficiency of DC to AC power conversion and the efficiency of the max. output power
Application:
- Quality Control at Production Line
- Warehouse or Site of Installation
- Identify Requirements of Solar Power System
- Maintenance of Solar Panels
- Verify the Best Installation Angles of Solar Panels
- Research and Development
User Interface & Data Acquisition Software:
- Information, Parameter, Overall
- Tool bar: including File, Tools, Option, Help
Accessory:
- Solar Irradiance Meter (Remote Solar Detector) x 1
- Thermometer x 1
- USB power cord x 1
- User manual x 1
- AC adaptor x 1
- Optical USB cable x 1
- Rechargeable lithium battery x 1
- Software CD x 1
- Software manual x 1
- Carrying bag x 1
- Thermal conductive gel x 1
- Testing clips (1 black & 1 red) x 1
- 4-wire to 2-wire connecting cable x 1
- 4-wire testing cable x 1
- Solar 15: DC current probe x 1
- Solar 21: AC power clamp x 1
- Testing clips (1 black & 1 red) x 1
Specifications:
Rechargeable Lithium Battery, 3400mAh |
400 times of linear scan (1000V ~ 1V, 0.1A ~ 12A) 8 hours for standby mode. |
512K Bytes or 3980 Mod files or 320 REC files or 3980 PWR files or 3980 IRR files |
AC 100 ~ 240V input, DC 15V / 1~3A output |
5ºC ~ 50ºC, <85% RH |
0.1% of full scale / ºC(<18ºC or > 28ºC) |
-20ºC ~ 60ºC, ≤ 75% RH |
257(L) x 155(W) x 57(H) mm |
Electrical Specifications:
(23 C ± 5 C, 0 0 Irradiance >800W/m ,2 Four-Wire Measurement, Maximum Power Limit is 12000W)DC Voltage Measurement
| Range | Resolution | Accuracy |
| 1 ~ 1000 V | 0.01 V / 0.1 V / 1 V | ± 1 % ± (1 % of Voc ± 0.1 V) |
DC Current Measurement
| Range | Resolution | Accuracy |
| 0.1 ~ 12 A | 1 mA / 10mA | ± 1 % ± (1 % of Isc ± 9 mA) |
Irradiance Measurement
| Range | Resolution | Accuracy |
| 0 ~ 2000 W/m 2 | 1 W/m 2 | ± 3 % ± 20 dgts |
Temperature Measurement
| Range | Resolution | Accuracy |
| - 22 ~ 85ºC | 0.1ºC | ± 1 % ± 1ºC |
AC Voltage Measurement
| Range | Resolution | Accuracy (50/60Hz) | Accuracy (45-1KHz) |
| 5 V ~ 250 V | 0.1 V | ± 0.5 % ± 5 dgts | ± 1.5 % ± 5 dgts |
| 250 V ~ 600 V | 0.1 V | ± 0.5 % ± 5 dgts | ± 1.5 % ± 5 dgts |
Harmonics of AC Voltage in Percentage (1 – 99th order)
| Range | Resolution | Accuracy |
| 1 – 10th | 0.1% | ± 1 % of reading ± 1 % |
| 11 – 20th | 0.1% | ± 5 % of reading ± 1 % |
| 21 – 30th | 0.1% | ± 15 % of reading ± 1 % |
| 31 – 40th | 0.1% | ± 35 % of reading ± 1 % |
Harmonics of AC Current in Percentage (1 – 99th order)
| Range | Resolution | Accuracy |
| 1 – 10th | 0.1% | ± 1 % of reading ± 1 % |
| 11 – 20th | 0.1% | ± 5 % of reading ± 1 % |
| 21 – 30th | 0.1% | ± 15 % of reading ± 1 % |
| 31 – 40th | 0.1% | ± 35 % of reading ± 1 % |
Phase Angle (50 or 60Hz)
| Range | Resolution | Accuracy |
| - 180 to 180 | 0.1 | ± 2 |
| 0 to 360 | 0.1 | ± 2 |
Frequency (Hz)
| Range | Resolution | Accuracy (50/60Hz) | Allowed Input |
| mA( 45-65Hz ) | 0.1 | ± 2 | 20mA to 1.2A |
| A( 45-65Hz ) | 0.1 | ± 2 | 1A to 100A |
Total Harmonic Distortion (THD-F)
| Range | Resolution | Accuracy |
| 0.0 – 10.0 % | 0.1% | ± 2% |
| 10.0 – 40 % | 0.1% | ± 5% of reading ± 5% |
| 40 – 100 % | 0.1% | ± 10% of reading ± 10% |
| 100 – 999.9 % | 0.1% | ± 20% of reading |
Power Factor
| Range | Resolution | Accuracy |
| 0.000 – 1.000 | 0.001 | ± 0.04 |
Peak Value of AC Periodic Voltage
| Range | Resolution | Accuracy (50/60Hz) |
| 50Hz | 39us | ± 5% ± 30 dgts |
| 60Hz | 33us | ± 5% ± 30 dgts |
Crest Factor (C.F) of AC Voltage
| Range | Resolution | Accuracy |
| 1.00 – 99.99 | 0.01 | ± 5% ± 30 dgts |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Pmax | 1000V, 12A |
|---|---|
| Memory Size | 512K Bytes |
| Capability | 12000W |
| Dimension | 260 x 158 x 64mm |
| Battery Type | Rechargeable Lithium Battery (3400mAh) |
| Battery Life | 400 times of linear scan (1000V ~ 1V, 0.1A ~ 12A), 8 hours for standby mode |
