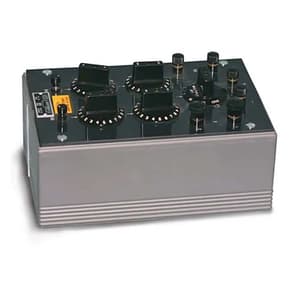

Metravi 0.001 - 11.1M.Ohms Low Resistance Range Wheatstone Bridge Tester, WSB

Wheatstone Bridge useful for measuring Low Resistance values in the range: 0.001 to 11.1M.Ohms

Switch: Special type of switches, giving remarkable precision low contact resistance and long life are incorporated in this instrument.

Coils: Best quality Manganin wire is used for coils which are non-inductively wound. Coils are carefully heat treated to eliminate stress and are suitably aged to provide stability. The temperature coefficient of the wire is about 0.00001 per °C over the range 15°C to 45°C.

Features:

• Useful for measuring Low Resistance values
• Range: 0.001 to 11.1M.Ohms
• Accuracy: ± 0.05%
• In-built 4.5V dry battery
• Best Quality Manganin Wire is used for coils
• In-built high sensitive galvanometer of 20uA/mm
• Suitable for Murray & Varlex Loop Test
• Optional Light Spot Galvanometer can also be supplied
• External Battery and Galvanometer arrangement is provided for using external battery and Galvanometer. Operating instrument are fixed inside the lid, to facilitate easy operation of the instrument.
• It has built-in sensitive Galvanometer of 20uA/mm.
• The instrument can be supplied with a Taut Suspension type Galvanometer of 0.5uA/mm at an extra cost.

What's Included In This Package:

• 1x Metravi WSB with Polished hard wood case, with carrying handle.
• 1x 4.5V battery
• 1x Light Spot Galvanometer Cat. 1701 for better accuracy (Optional)
