Metravi 0.125M - 4000M Ohms Digital Solar Insulation Tester, PRO DIT-960PV
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Insulation Resistance Test Range: 0.125M / 100.0 / 200.0 / 1000 / 2000 / 4000M Ohms; Accuracy: ±(1.5%+5)
- Output Voltage Ranges: 125V / 250V / 500V / 1000V; Accuracy: ±(0%~20%)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹34,664 (Incl. of all taxes)
₹29,376 + ₹5,288 GST (18%)
MRP was MRP ₹43,200
Save 32%
5 Business Days
1
90303900
Download Metravi CatalogueNot available
Highlights

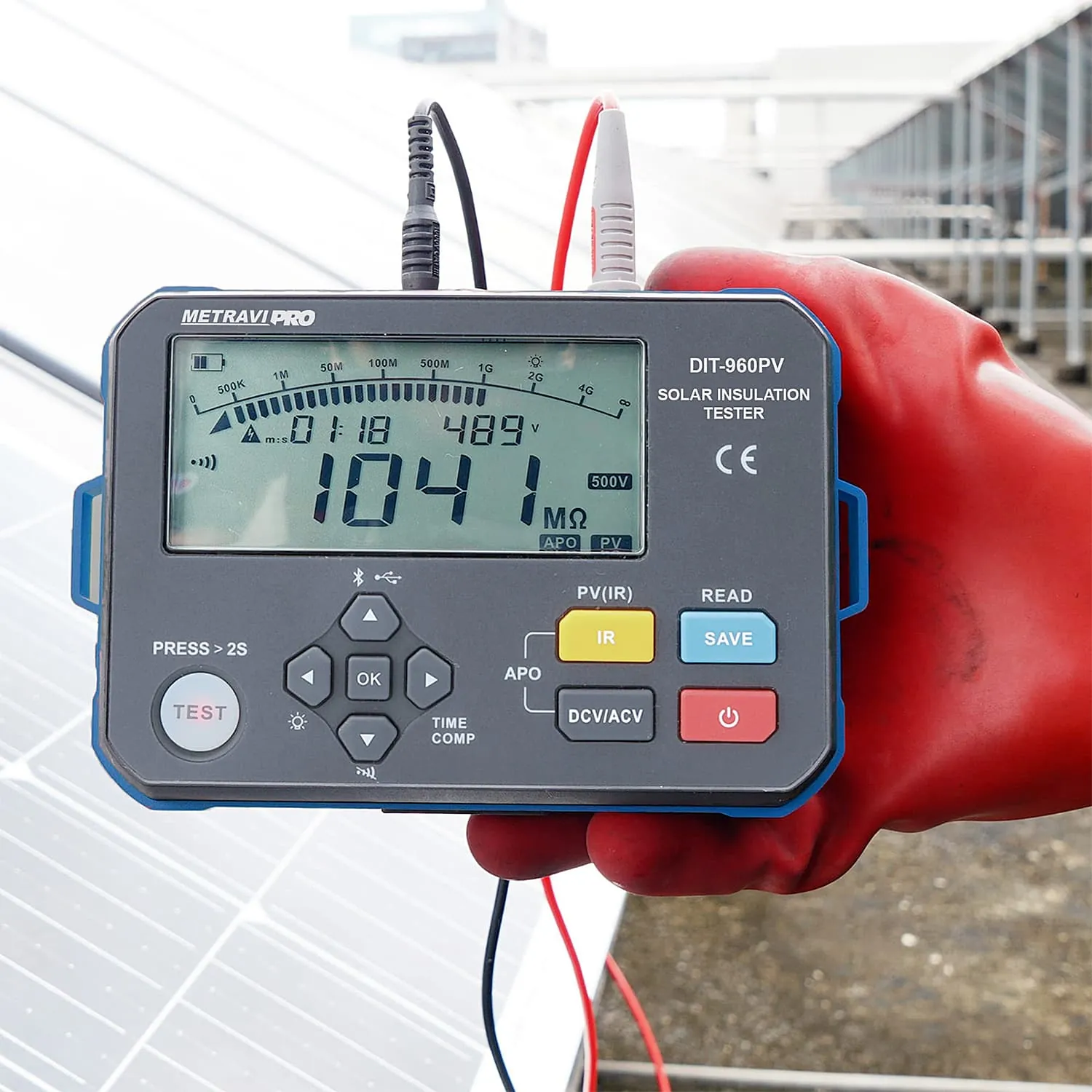

The Metravi PRO DIT-960PV Digital Solar Insulation Tester has the function of measuring Photovoltaic (PV) live insulation resistance, ordinary insulation resistance function (non-live), AC and DC voltage automatic recognition measurement and so on. The PRO DIT-960PV can be used to measure Photovoltaic energised (maximum: 1000V DC) Insulation Resistance and conventional Insulation Resistance (de-energised) and also automatically identify AC/DC Voltage.
It has multiple functions including: Photovoltaic Insulation Resistance measurement without solar panel in power outage/short circuit condition or at night, Voltage Stepping, Bluetooth transmission, Automatic Discharge, High Voltage warning, remote-controlled test lead operation, and more. The Metravi PRO DIT-960PV Digital Solar Insulation Tester is commonly applied to test insulation resistance for various equipment such as Photovoltaic/ solar panels, battery energy storage system, new energy vehicles, etc.
Features:
- Photovoltaic insulation resistance measurement (PV)

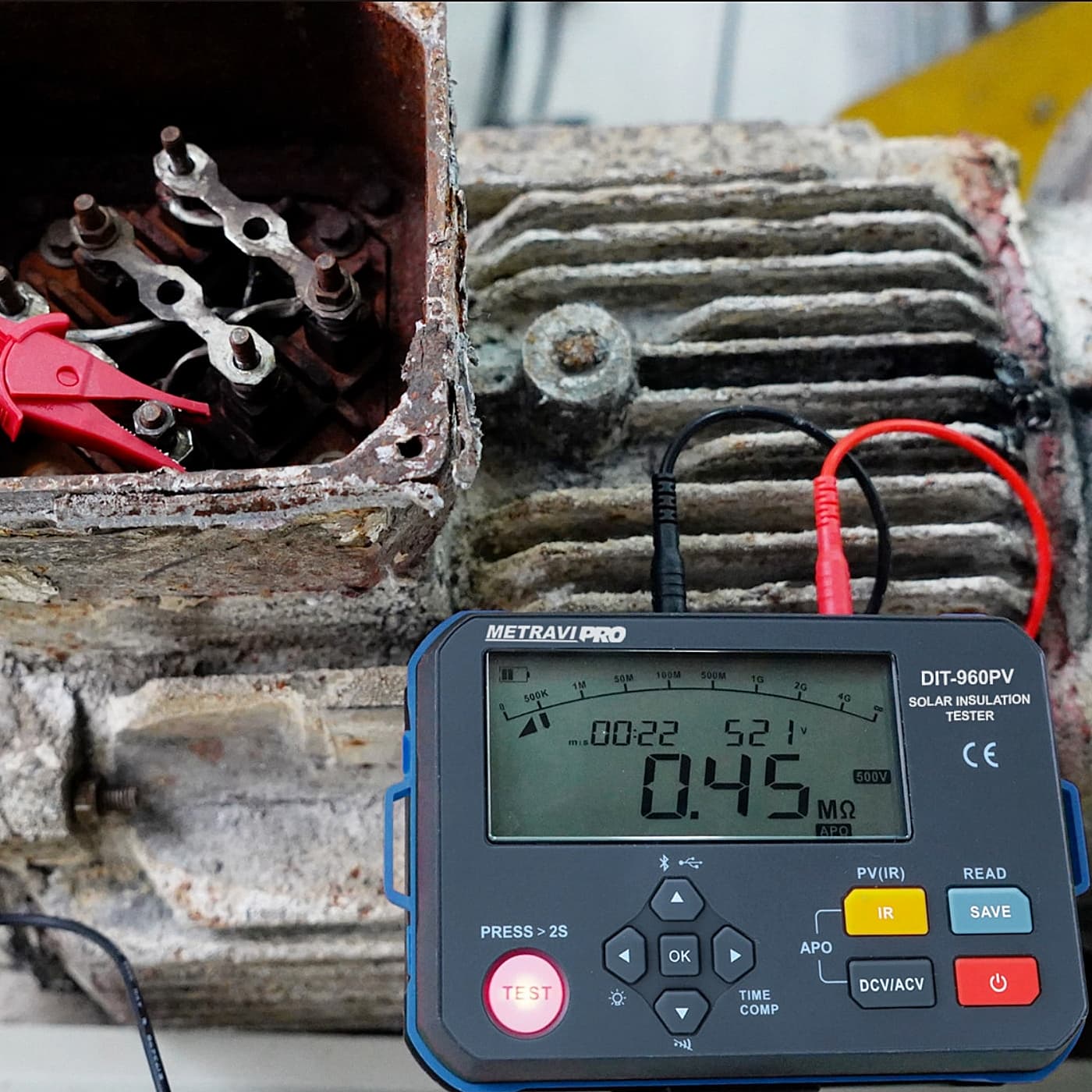

- Conventional insulation resistance measurement
- AC/DC voltage testing (VDC/VAC)
- Maximum insulation resistance range: 4000MΩ
- Rated voltage for conventional output (Conventional insulation resistance: 4 positions): 125V, 250V, 500V, 1000V
- Rated voltage for PV output (Photovoltaic insulation resistance: 2 positions): 500V, 1000V
- Short-circuit current: <1.5mA
- Step of each range: 10% of rated voltage
- Comparative measurement of insulation resistance (COMP)
- Time-set measurement of insulation resistance (TIME)
- External voltage detection function to enable monitoring energised voltage of measured object automatically
- Designed with timer to record testing time automatically
- Automatic discharge and high voltage warning
- Analogue bar graph to display the range of insulation resistance testing result
- Manual/Automatic power-off
- Data Logging for upto 1000 sets of data
- Data storage/deletion function
- Data upload function
- Bluetooth Interface and Smartphone App
- Manual/Automatic backlight
- Mute function
- LCD high-definition segmented display
- Modes of Measurement: Continuous, Comparative and Time-set
- High Voltage warning
- Automatic identification of AC/DC voltage
- Automatic Discharge

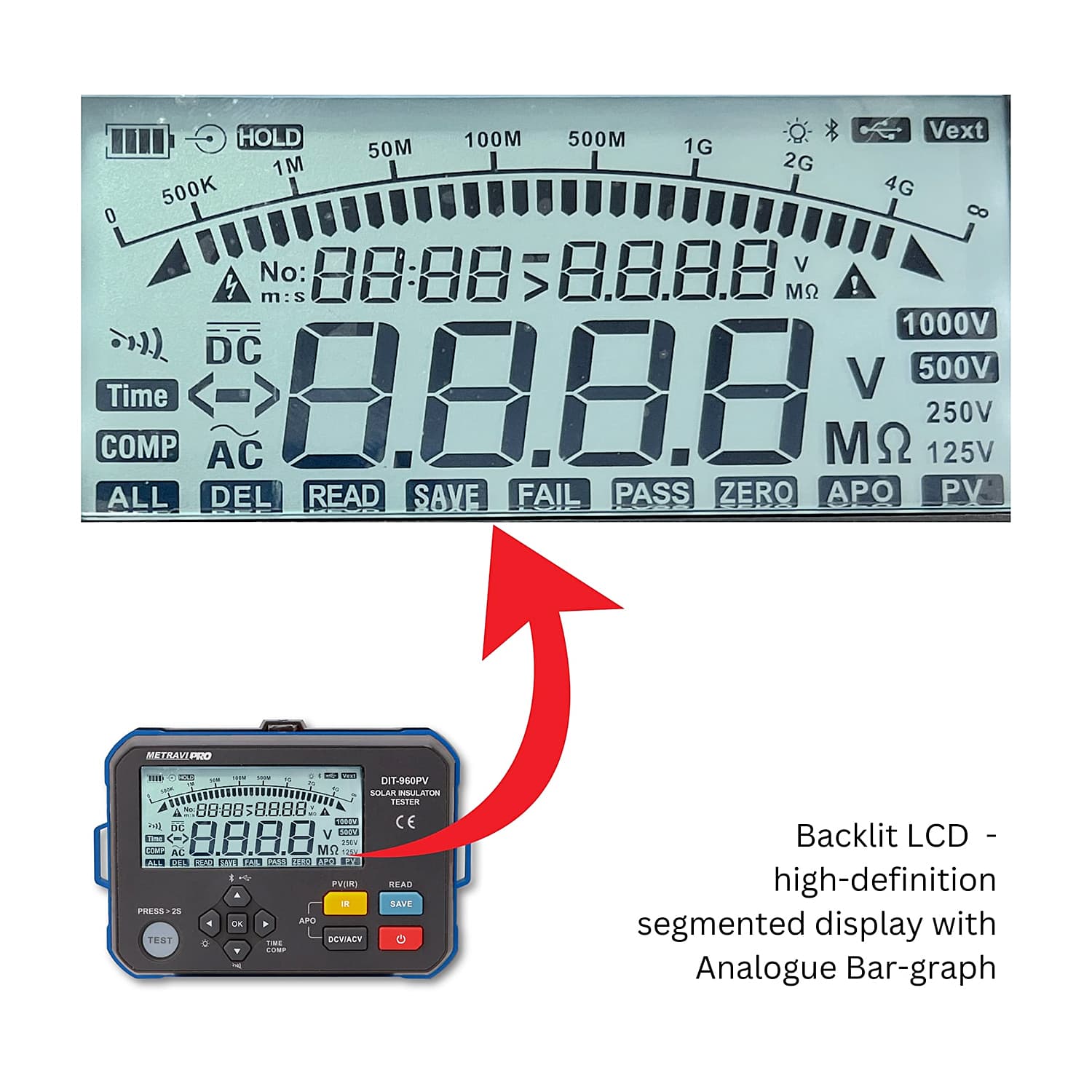

- Display: Backlit LCD high-definition segmented display with Analogue Bar-graph
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Insulation Resistance Test Range | 0.125M / 100.0 / 200.0 / 1000 / 2000 / 4000M Ohms; Accuracy: ±(1.5%+5) |
|---|---|
| Output Voltage Ranges | 125V / 250V / 500V / 1000V; Accuracy: ±(0%~20%) |
| Short Circuit Current | <1.5mA |
| Output Voltage Ranges for PV | 500V / 1000V; Accuracy: ±(0%~20%) |
| PV Insulation Test Voltage Ranges | 500V / 1000V |
| PV Insulation Resistance Test Range | 0.125M / 1000 / 2000 / 4000M Ohms; Accuracy: ±(1.5%+5) |
| Short Circuit Current (for PV) | <1.2mA |
| Power Supply | 6x 1.5V (LR6 AA Alkaline Batteries) |
| Record Test Timer | 0 Sec ~ 99 Min & 59 Sec |
| Data Logging | 1000 Sets of Testing Data |
| Interfaces | USB & Bluetooth |
