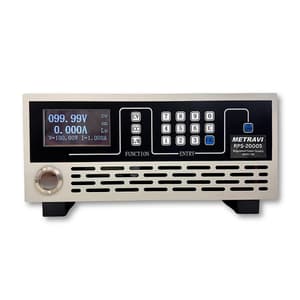

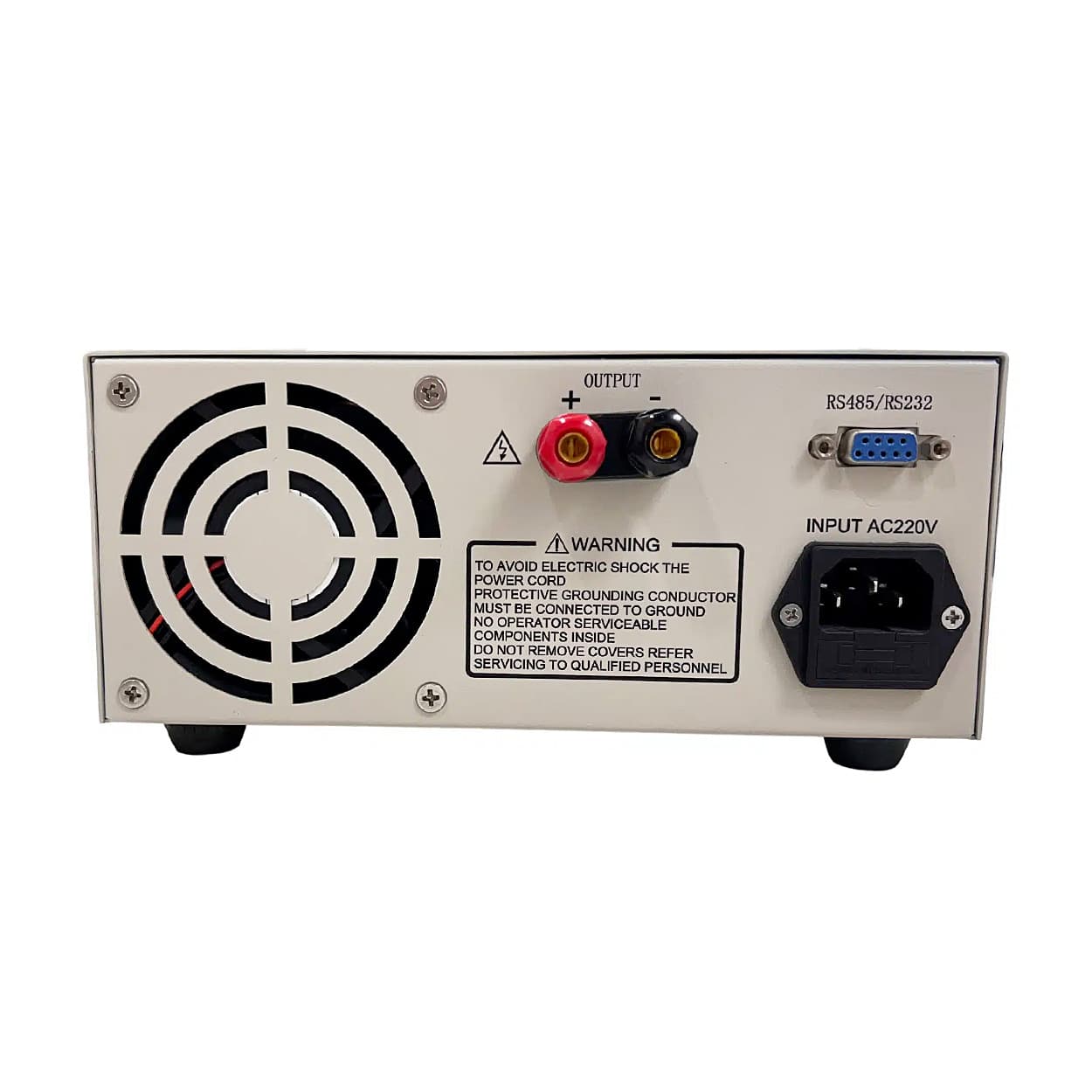

Metravi 0 - 200V / 0 - 5A DC Regulated Power Supply (Single Output), RPS-20005
Roll over the image to zoom in
Key Features
- Product Type: Power Supply
- Output Voltage: 0 - 200V
- Output Current: 0 - 5A
- Input Voltage: Single phase 220VAC + G
- Input Frequency: 50/60Hz
- Output Accuracy: ±0.2% of rated value
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹81,243 (Incl. of all taxes)
₹68,850 + ₹12,393 GST (18%)
MRP was MRP ₹1,01,250
Save 32%
5 Business Days
1
85042100
Download Product LeafletNot available
Download Metravi CatalogueNot available
Download Metravi CatalogueNot available
Highlights
The Metravi RPS-20005 Digital DC Power Supply is high-frequency switching DC power supply developed by our high-quality development team, with years of power products development experience and based on our field experience with extensive user equipment operation.
It is suitable for various high-frequency switching DC systems and related supporting equipment. It is are widely used for battery charging, power electronics driving, scientific research institutes, production and processing industries, electronic components aging, and other applications need stable DC output.
Features:
- Using PWM pulse width modulation technology based on world-famous brand IGBT or MOSFET power switching component.
- 3C3 coating level for main control board and soft magnetic core adopted.
- Low ripple, fast dynamic response rate, ripple and accuracy up to 0.2%.
- High efficiency, accurate precision, good and reliable performance.
- The output voltage and current can be continuously adjustable from 0 to 100% rated value.
- OVP & OCP values can be arbitrarily settable.
- Relative wide load adaptability.
- Complete protection functions, such as OVP, OCP & OTP.
- Working and protection status indication.
- Equipped with RS232 or RS485 interface. (Optional)
- 5-digit LED display for output voltage and current (measuring range: 1% ~ 100% rated value)
- Forced air cooling, power supply can withstand long-term continuously working with full load.
- Adopts 19-inch, standard 2U-3U rack mount chassis.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Type of Product | DC Power Supply |
|---|---|
| Output Voltage | 0 - 200V |
| Output Current | 0 - 5A |
| Display | 5 Digit LED |
| Colour | Beige |
| Input Voltage | Single phase 220VAC + G |
| Input Frequency | 50/60Hz |
| Input Scope | ±10% |
| Output Accuracy | ±0.2% of rated value |
| Output Error | RMS 0.2% |
| Efficiency | > 85% |
| Working Modes | CV & CC |
| Interface(Optional) | RS-232 Or RS-485 |
| Cooling | Forced air cooling |
| Voltage Resolution | 0.01V |
| Current Resolution | 0.001A |
| Load Regulation | <±0.05% |
| Line Regulation | <±0.05% |
| Dynamic Response | <2ms |
| Time Drift | < ±1% |
| Temperature Drift | <±1%/°C |
| Ripple Voltage | <0.5% |
| Insulation Strength | 20M: Class B |
| Working Temperature | -10°C ~ +45°C |
| Working Humidity | 5% ~ 90% |
| Protection | Over Current & Over Temperature, Over Voltage |
