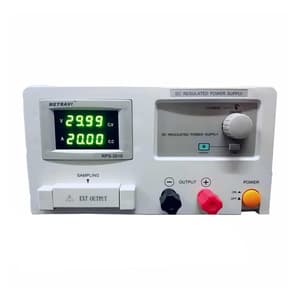

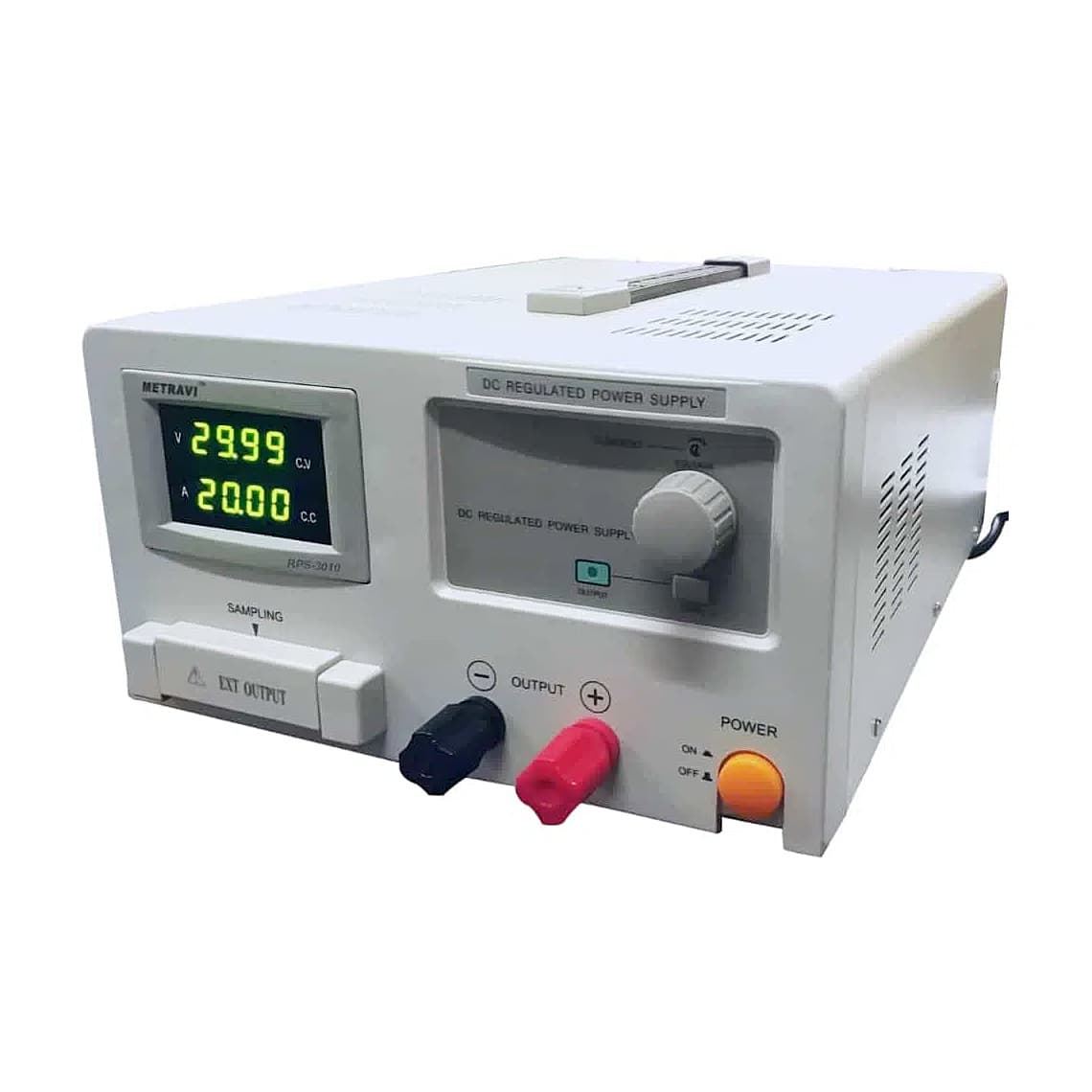

Metravi 0 - 30V / 0 - 10A DC Regulated Power Supply (Single Output), RPS-3010
Roll over the image to zoom in
Key Features
- Product Type: Power Supply
- Output Voltage: 0 - 30V
- Output Current: 0 - 10A
- Input Voltage: 230V AC 50Hz
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹25,456 (Incl. of all taxes)
₹21,573 + ₹3,883 GST (18%)
MRP was MRP ₹31,725
Save 32%
5 Business Days
1
85042100
Download Product LeafletNot available
Download Metravi CatalogueNot available
Download Metravi CatalogueNot available
Highlights
DC Regulated Power Supply with Single Output with LED Display of Variable 0 – 30V / 0 – 10A DC utilising SMT technology. Widely used in production line test, electrical maintenance, ageing products, battery charging, laboratories, scientific research and teaching and many other areas.
Features:
- Utilizes SMT Technology
- Attractive Digital Display showing Voltage and Current
- High Precision Voltage Regulation
- Progressive Current Regulation
- Dual Terminal System: Safety test style or expanded screw terminals.
- Overload and Short Circuit Protection
- Rugged Reinforced Metal Frame Construction.
- Output Polarity: Positive and Negative
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Type of Product | DC Power Supply |
|---|---|
| Output Voltage | 0 - 30V |
| Output Current | 0 - 10A |
| Display | LED |
| Colour | Cream |
| No of Channel | Single |
| Input Voltage | 230V AC 50Hz |
| Accuracy | ±10% / ±5% |
| Load Regulation Rate | CC <5*10^-4 + 5mA, CV <5*10^-4 + 2mV |
| Source Regulation | CC <5*10^-4 + 5mA, CV <5*10^-4 + 2mV |
| Ripple and Noise | CC <15mV, CV <1.5mV |
| Voltage Regulation | High Precision Voltage Regulation |
| Current Regulation | Progressive Current Regulation |
