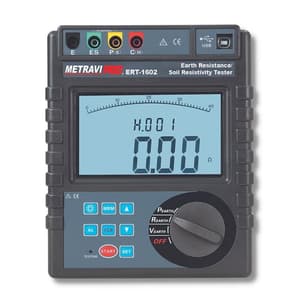

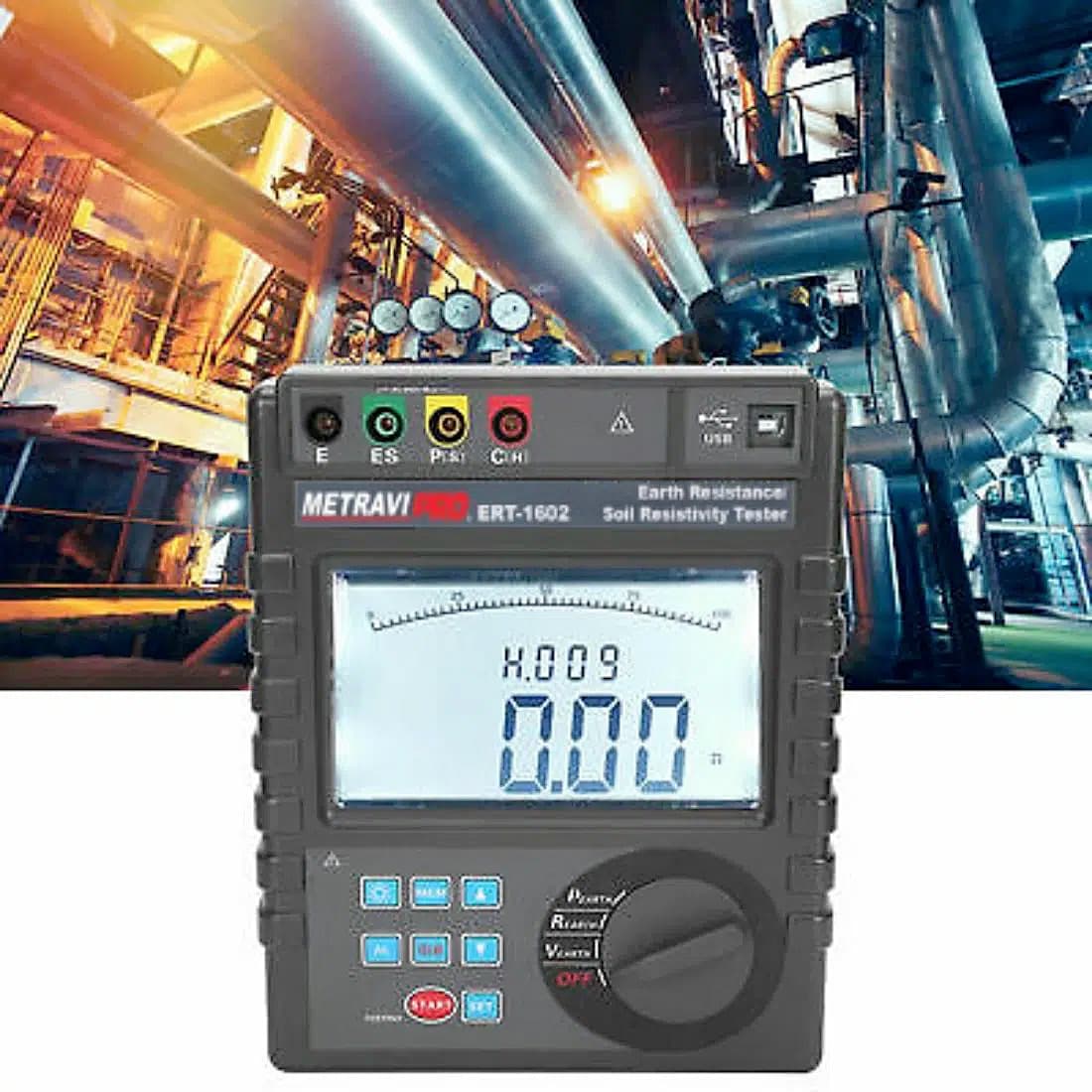

Metravi 0 - 30kOhm Earth Resistance Range Digital Earth Resistance and Soil Resistivity Tester, PRO ERT-1602

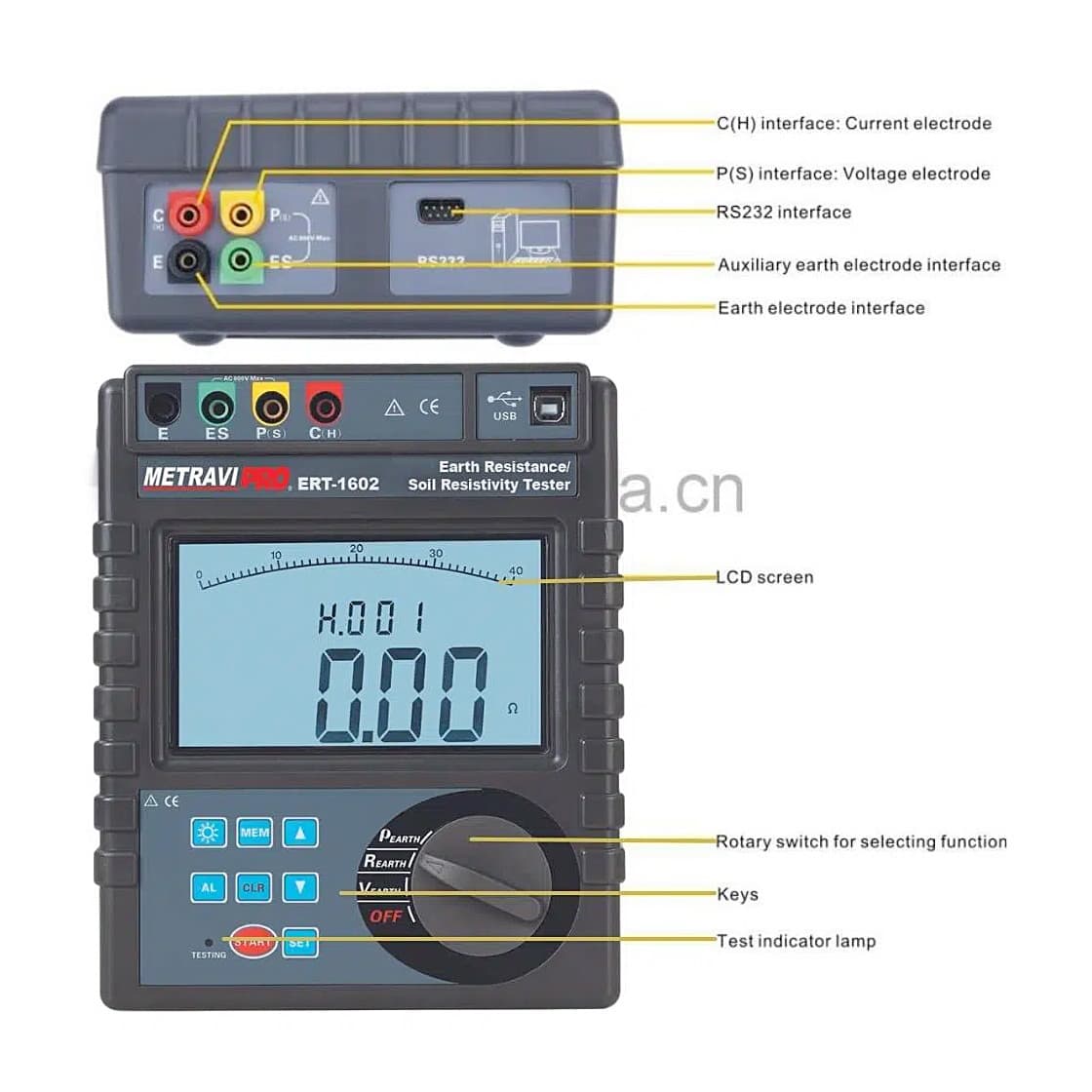

The Pro ERT-1602 features precision 4-wire, 3-wire and simple 2-wire measurement methods to measure Earth Resistance, Soil Resistivity, Earth Voltage and AC Voltage. Unlike other Earth Testers, you do not need to calculate Soil Resistivity as this instrument gives you the measurement directly. This Earth Resistance Soil Resistivity Tester comprises of host machine, monitoring software, test wires, auxiliary ground rod and communication cable.

It can store up to 300 sets of data simultaneously, through the monitoring software to document and analyse historical data. It also offers online real-time monitoring functions, dynamic display, alarm indication with historical data reading, accessing, saving, reporting, printing and other functions.

Features:

• Import FFT (fast Fourier transform) technology, AFC (automatic frequency control) technology, with unique anti-interference ability and environmental adaptability ensure high repeated test consistency.
• The large LCD display, white backlight and bar graph make the readings clear at a glance.
• Features USB interface with data upload function; storage data can be uploaded to the computer and can be saved and printed.
• Audio-visual Alarm and Overload Protection.
• Earth Resistance: Rated current change-pole method, measurement current 20mA Max
• Soil Resistivity: Wenner 4-pole measurement; Voltage to Earth: Average rectifier
• Earth Voltage: Average rectification (between P(S)-ES)
• Test Frequency: 128Hz / 111Hz / 105Hz / 94Hz (AFC)
• Short-circuit Test
• Open-circuit Test Voltage
• Interference Test
• Auxiliary Earth Test
• Line Voltage
• Data Hold
• Overflow Indication
• USB Interface
• Alarm function
• Auto Power-off
• Overload Protection
• Working Temperature & Humidity : -10°C-40°C, below 80%RH; -20°C-60°C, below 70%RH
• Safety Standards: IEC61010-1 (CAT III 300V, CAT IV 150V, Pollution 2), IEC61010-031, IEC61557-1 (Earth resistance), IEC61557-5 (Soil resistivity), JJG 366-2004
• PRO ERT-1602 Meter 950g, Test Wires 1560gms, Auxilliary Ground Rods (4 nos) 935g

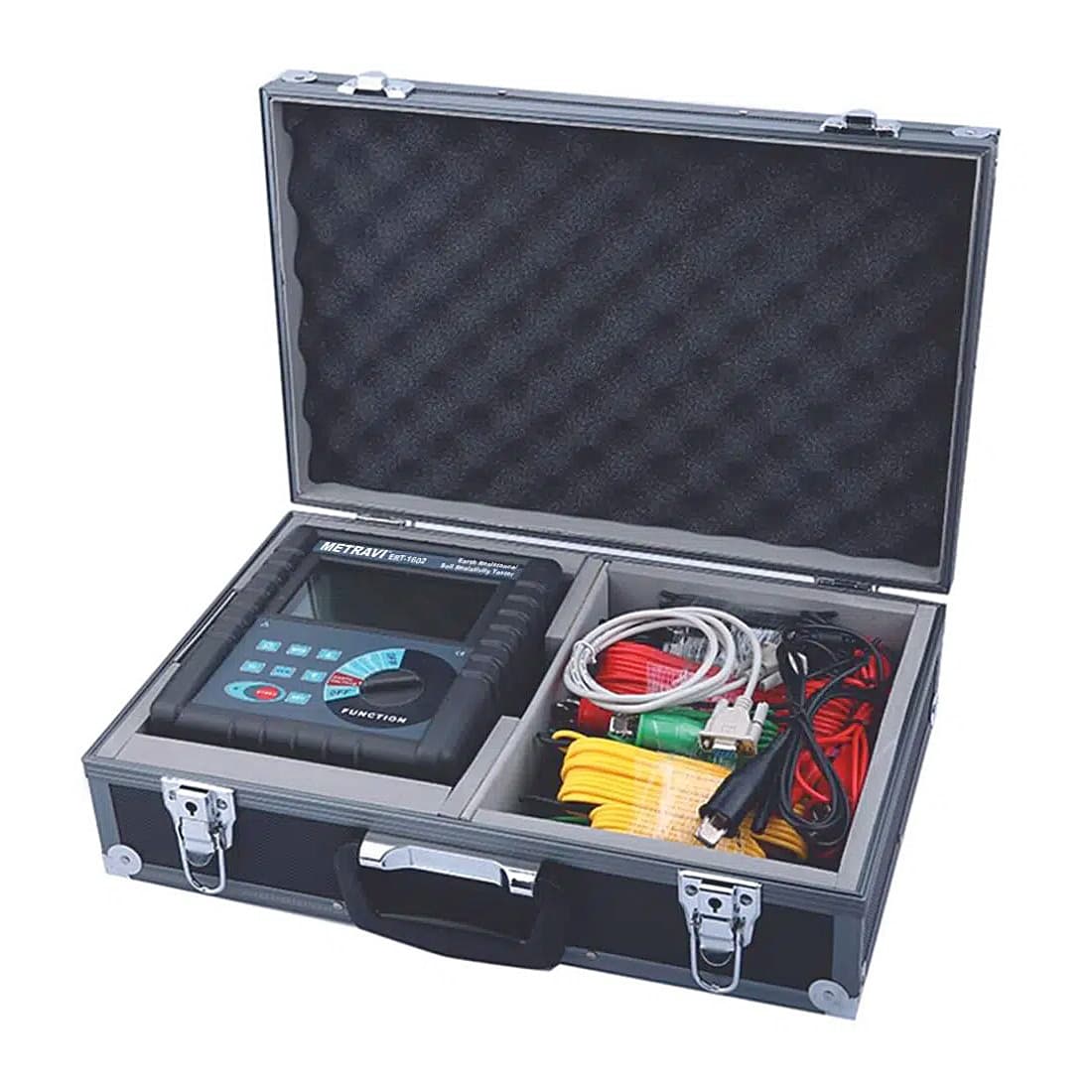

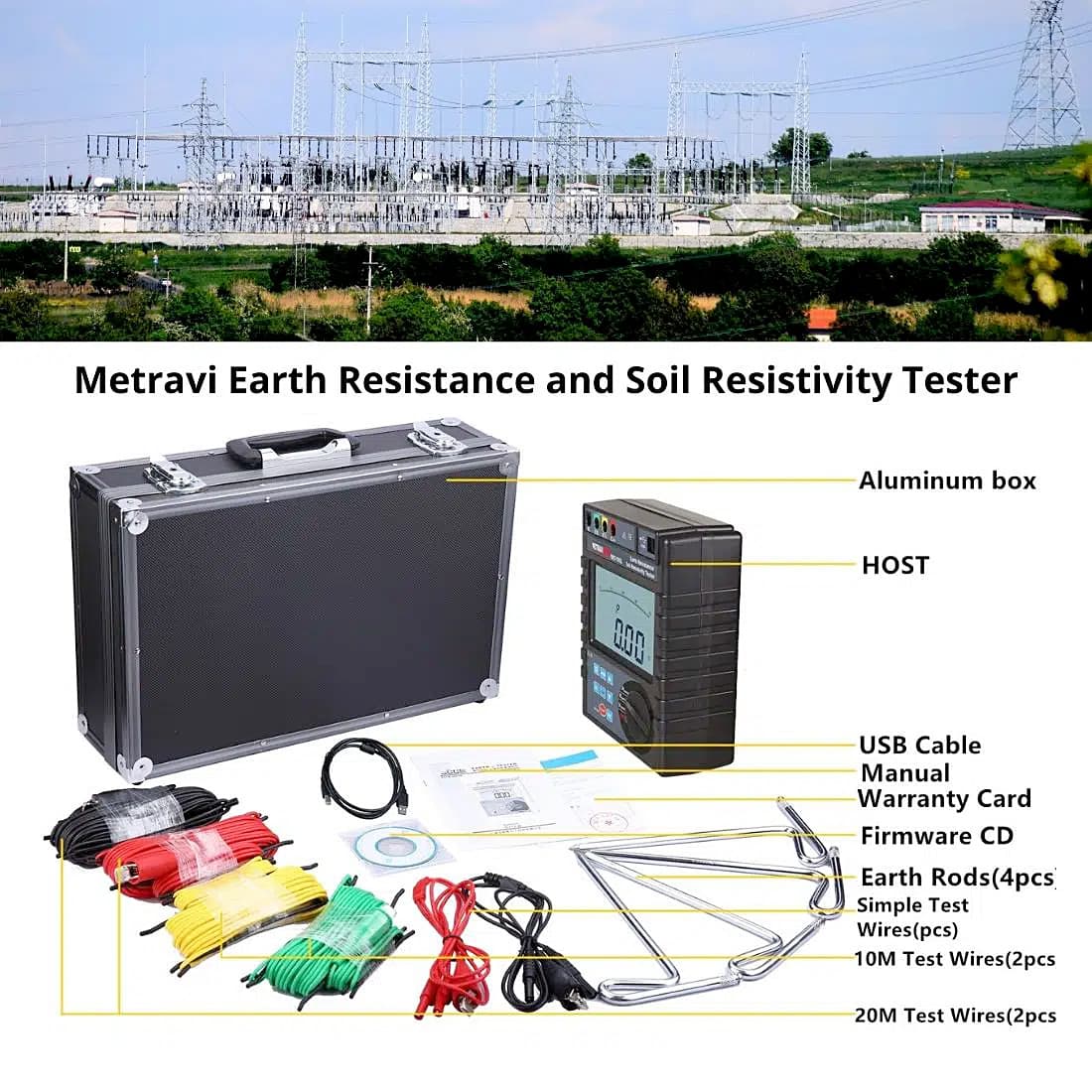

What's Included In This Package:

• 1x PRO ERT-1602 Tester
• 1x Special USB Communication Cable
• 1x Software CD
• 1x Hard Carrying Case
• 1x User Manual
• 2x Simple Test Wires (Red 1.6m; Black 1.6m)
• 4x Earth Rods
• 4x Standard Test Wires (Red 20m; Yellow: 10m; Green: 10m; Black: 20m)

Measurement Ranges:
