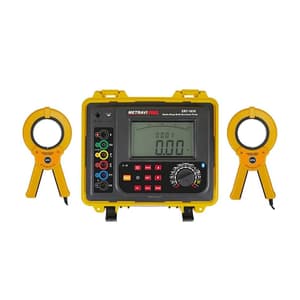

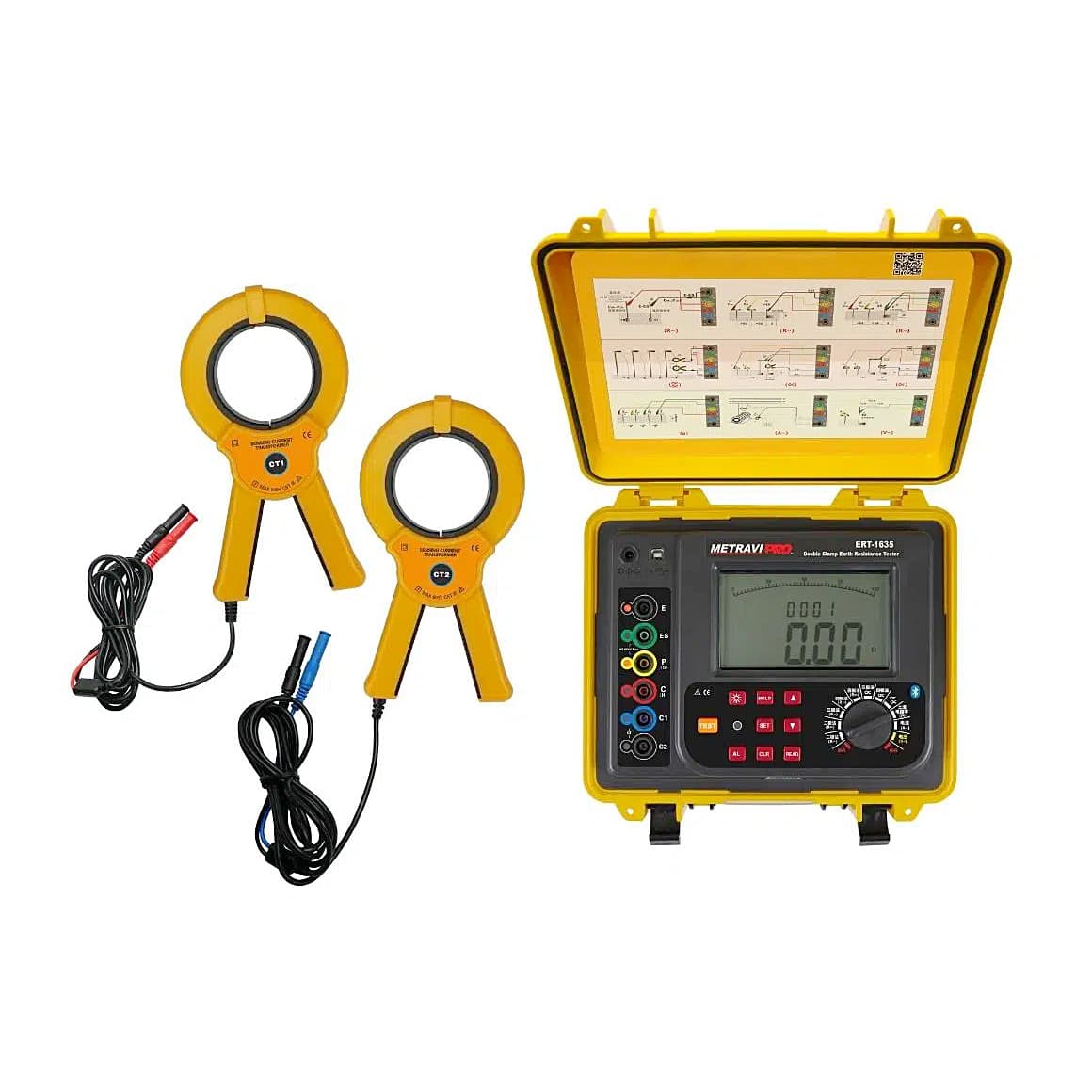

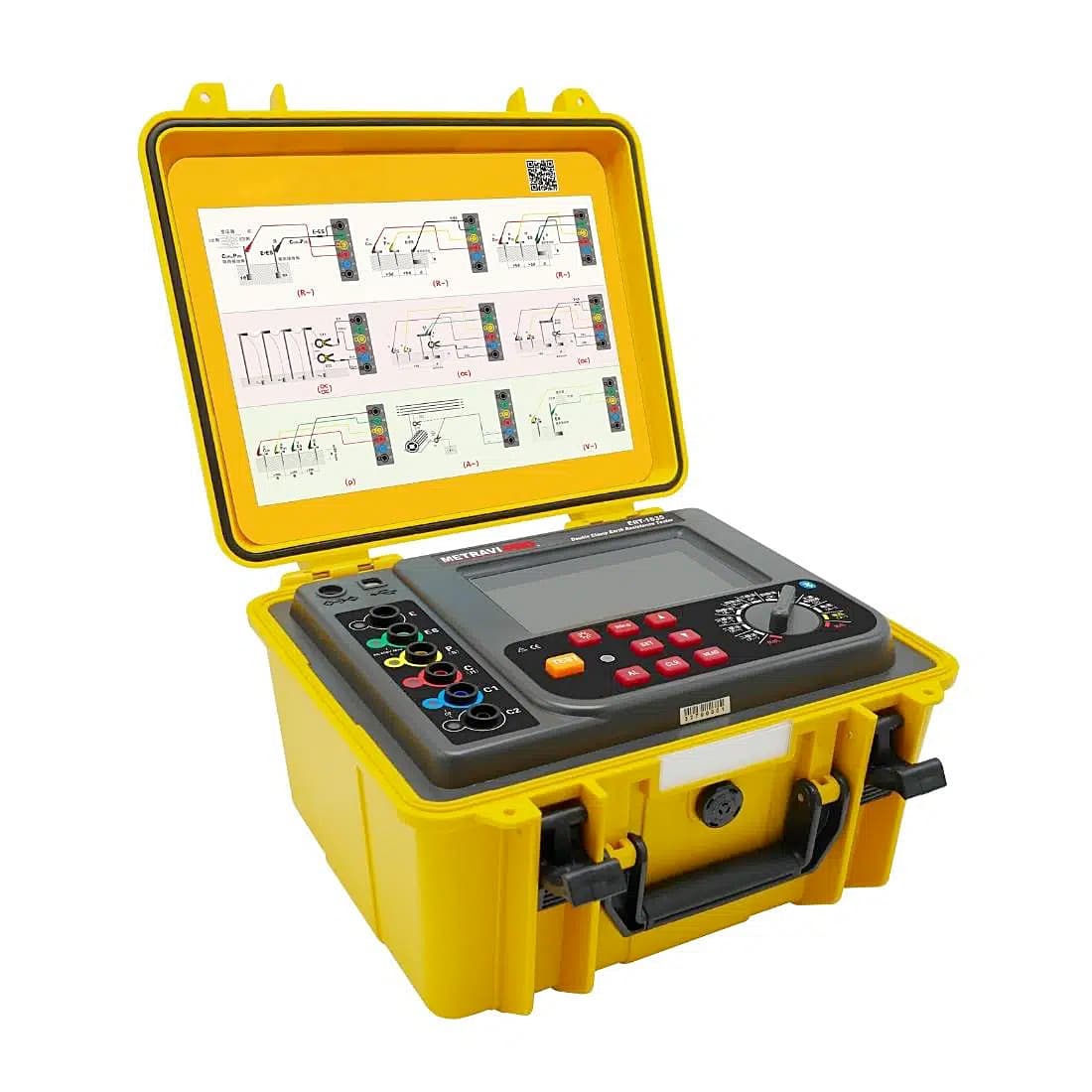

Metravi 0 - 600A Earth Current Range Digital Double Clamp Earth Resistance Tester, PRO ERT-1635

The Metravi ERT-1635 Double Clamp Multi-function Earth and Grounding Resistance Tester is specially designed and manufactured for on-site measurement of grounding resistance, soil resistivity, grounding voltage, grounding line leakage current, AC current and DC resistance. Applying digital processing technology, it offers precision 4-wire method, 3-wire method and simple 2-wire method, selection method, double-clamp method to measure grounding resistance.

The large caliber clamp design can measure the grounding system using large grounding down lead and can flexibly and accurately measure any grounding resistance value of various complex grounding conditions such as single point and mesh grounding. It is not required to disconnect any parallel grounding pole to do the measurements. Import FFT (Fast Fourier Transform) technology, AFC (Automatic Frequency Control) technology, with unique anti-interference ability and environmental adaptability, high repeated test consistency, ensures high precision, high stability and high reliability for long-term measurements.

Widely used in power, telecommunications, meteorology, oil fields, construction, lightning protection and industrial electrical equipment, such as grounding resistance, soil resistivity, grounding voltage, alternating current, leakage current measurement.

Features:

• Import FFT (Fast Fourier Transform Algorithm) and AFC (Automatic Frequency Control) technology
• Protection grade IP65 – waterproof, dust-proof, shockproof
• Large-capacity rechargeable lithium battery pack especially suitable for outdoor construction
• 2/3/4-wire Method Measure Earth Resistance:
  Range : 0.00Ω ~ 30KΩ
  Resolution : 0.01Ω
  Accuracy : ±2%rdg±3dgt
• Selection Method Measure Earth Resistance:
  Range : 0.00Ω ~ 3000Ω
  Resolution : 0.01Ω
  Accuracy : ±2%rdg±3dgt
• Double Clamp Method Measure Earth Resistance:
  Range : 0.00Ω ~ 100Ω
  Resolution : 0.01Ω
  Accuracy : ±10%rdg±5dgt
• Earth Voltage Measurement:
  Range : 0.0 ~ 100.0V AC
  Resolution : 0.1V
  Accuracy : ±2%rdg±3dgt
• Earth Current Measurement Range:
  Range : 0.0mA ~ 600.0A
  Resolution : 0.0mA
  Accuracy : ±2%rdg±3dgt
• Soil Resistivity Measurement (ρ):
  Range : 0.00Ωm ~ 9000KΩm
  Resolution : 0.01Ωm
• CT Size φ70mm
• Short-circuit Test Current AC 250mA max
• Open-circuit Test Current AC 40V max
• Test Frequency 128Hz / 111Hz / 105Hz / 94Hz (AFC)
• Automatic Shutdown 15 Minutes after power on, will automatic shut down without any operation
• Test Wires Included: Red 20m, black 20m, yellow 10m, green 10m, red 1.6m, black 1.6m (total 6 pcs wires)
• Auxiliary Ground Rod 4pcs : φ10mm × 150mm
• Data storage 2000 groups, data access and data upload via USB interface
• With USB interface, software monitoring, storage data can be uploaded to computer, saved and printed.
• Bluetooth Communication Support the bluetooth communication function of Android system, after installation the APP, mobile terminals can be used to testing operations and view test records.
• Alarm Function measurement value exceed alarm setting value, will “Toot-toot-toot” alarm indication
• While battery voltage decreases to around DC 7.2VÅ}0.1V, will display low battery voltage symbol “ ”, and remind to replace the battery.
• Weight is approx 6700g (include package)

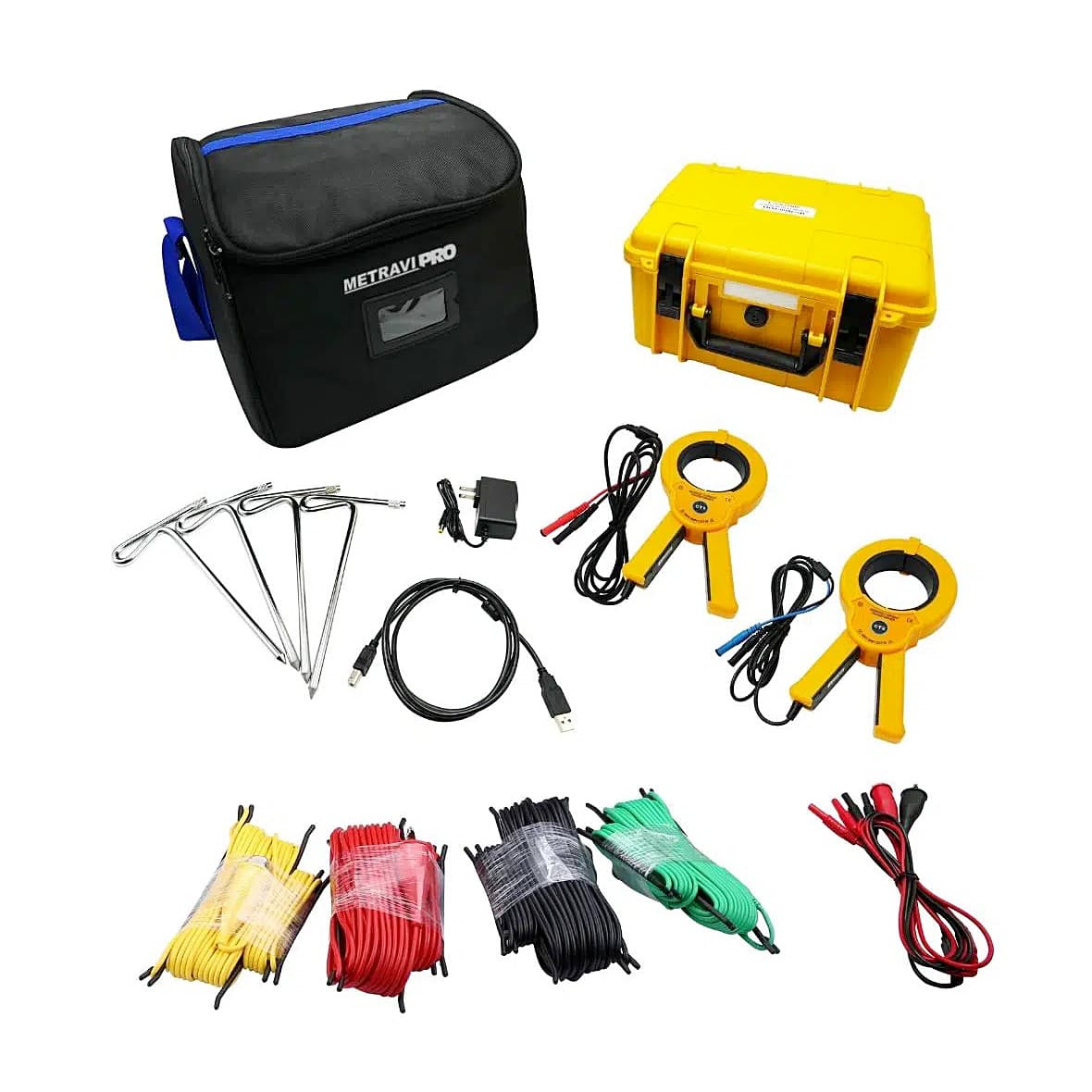

What's Included In This Package:

• 1x PRO ERT-1635 Tester
• 1x Special Charger

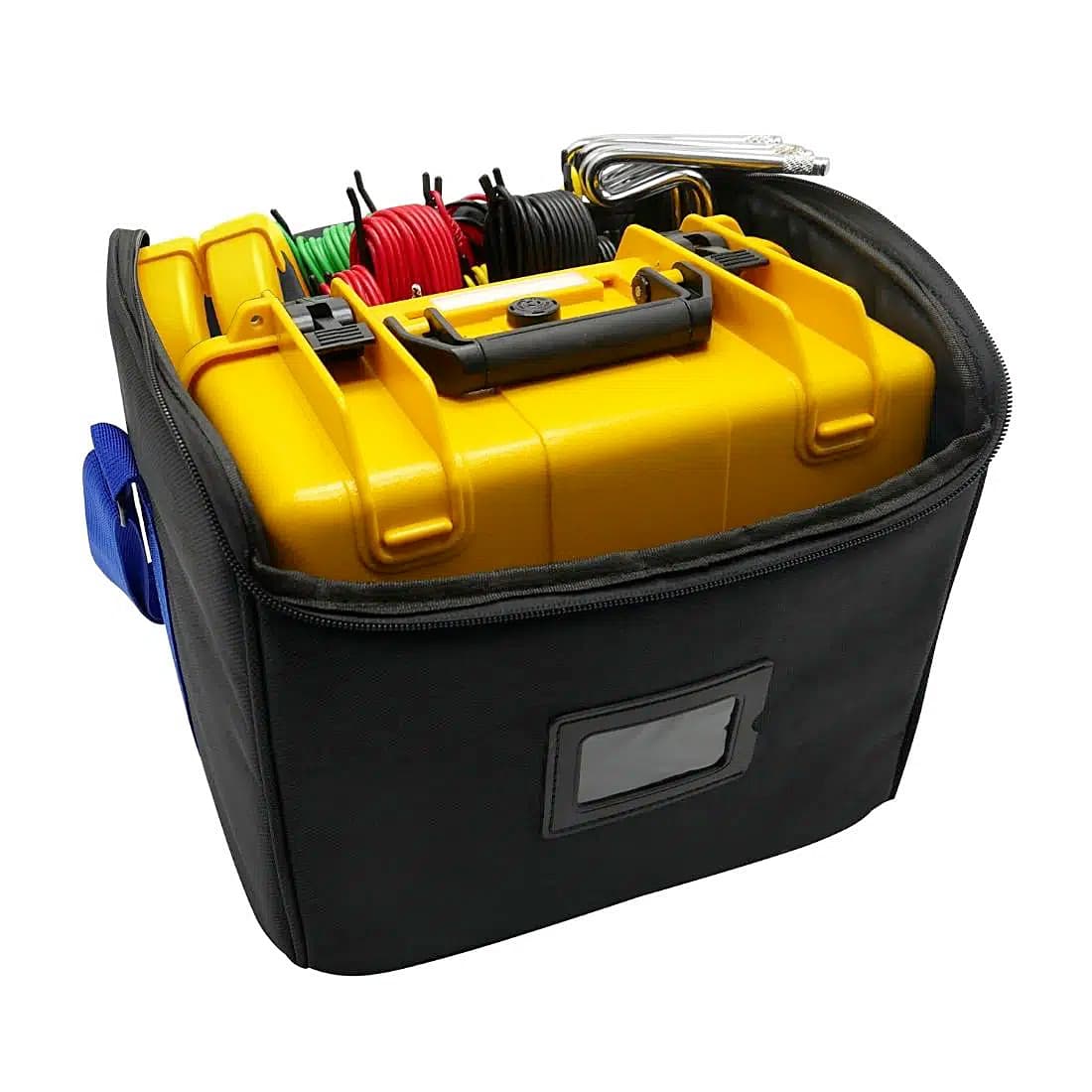

• 1x Tester Bag
• 1x USB Communication Cable
• 2x Current Clamp Sensor
• 4x Ground Rod
• 6x Testing wires



 Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
