Metravi 100MHz / 1GSa/Sec Dual Channel Digital Storage Oscilloscope with Arbitrary Waveform Generator, DSO-6100AWG
Roll over the image to zoom in
Key Features
- Product Type: Oscilloscopes
- Bandwidth: 100 MHz
- No. of Channels: Dual Channel
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹31,414 (Incl. of all taxes)
₹26,622 + ₹4,792 GST (18%)
MRP was MRP ₹39,150
Save 32%
5 Business Days
1
90302000
Download Metravi CatalogueNot available
Highlights
Experience the next level of precision and versatility with the new Metravi DSO-6100AWG Digital Storage Oscilloscope with Arbitrary Waveform Generator. Designed to meet the evolving needs of professionals and engineers, this dual-channel oscilloscope combines cutting-edge technology with user-friendly features. Equipped with a 25 MHz signal generator, this models offers bandwidth of 100 MHz, ensuring exceptional signal fidelity and performance for a wide range of applications.
With a dual-channel, independent, real-time sampling rate of 1 GS/s and a memory depth of 20M, the Metravi DSO-6100AWG Digital Storage Oscilloscope with Arbitrary Waveform Generator delivers unparalleled accuracy and data retention. This instrument is enhanced by 30 automatic waveform measurements, a 6-digit high-precision frequency counter, and powerful FFT spectrum analysis capabilities. Featuring a vibrant 7-inch TFT LCD display, the oscilloscope ensures crystal-clear visualisation, making waveform analysis more intuitive and efficient.
Features:
- Cursor Measurements: V, T, T&V between cursors, auto cursor
- Automatic Measurements: Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +PulseWidth, -PulseWidth, +Duty Cycle, -Duty Cycle, Delay A→B , Delay A→B , Cycle RMS, Cursor RMS, Screen Duty, Phase, +PulseCount, -PulseCount, RiseEdgeCnt, FallEdgeCnt, Area, and Cycle Area.
- Acquisition Mode: Normal, Peak detect, Averaging

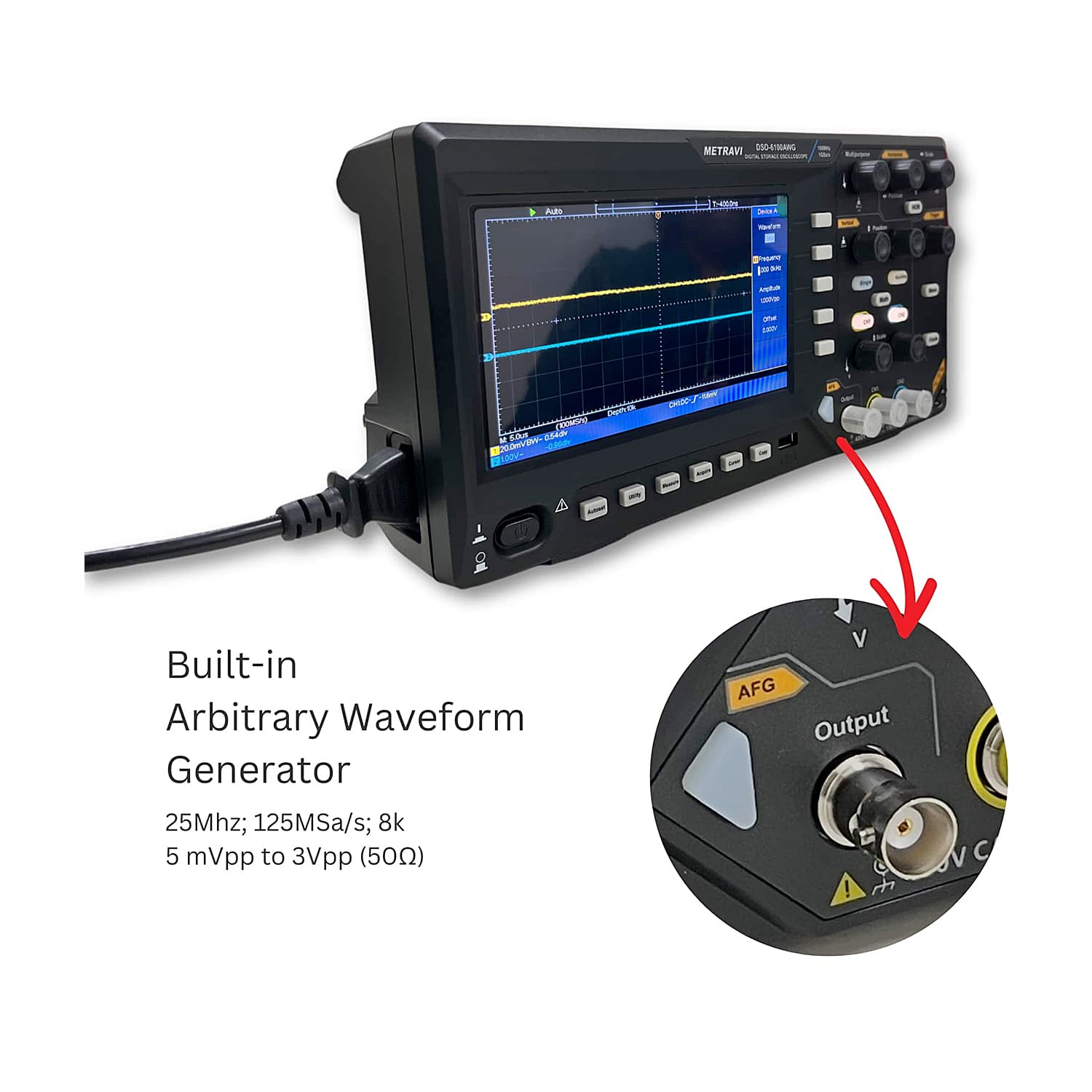

Arbitrary Waveform Generator:
- Standard Waveforms: Sine wave, square wave, ramp wave, pulse wave, arbitrary wave
- Arbitrary Waveforms: Sinc, exponential rise, exponential decline, Gaussian more than 160 kinds
- Bandwidth: 25MHz
- Real-time Sampling Rate: 125MSa/s
- Amplitude: 0.005Vpp ~ 3Vpp
- DC Offset: ±(3V – amplitude Vpp/2)
- Channel: 1
- Length: 8k
- Vertical Resolution: 14bit
- Output Impedance: 50Ω (typical)
What's Included In This Package:
- Oscilloscope
- Power Cord,
- USB Cable,
- Probes,
- Probe Adjuster,
- BNC Cable,
- User Manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Bandwidth | 100 MHz |
|---|---|
| No. of Channels | Dual Channel |
| Sampling Rate | 1GSa/Sec |
| Input Coupling | DC, AC , Ground |
| Input Impedance | 1 M Ohms±2%, in Parallel with 12 pF±5 pF |
| Probe Attenuation Factor | 1X, 10X, 100X & 1000X |
| Max. Input Voltage | 400V (DC+AC, PK – PK) |
| Waveform Storage | 16 Waveforms |
| Interface | USB 2.0 |
| Display | 7" TFT Colour LCD, 800 (Horizontal) × 480 (Vertical) Pixels |
| Probe Compensator Output | About 5 V, with the Peak-to-Peak voltage =1 M Ohms |
| Typical Frequency | Square Wave of 1 KHz |
| Power | 100 – 240 VACRMS, 50/60 Hz, CAT II |
