Metravi 100MHz Mixed Signal Oscilloscope With Logic Analyser, MSO-6102E
Roll over the image to zoom in
Key Features
- Product Type: Oscilloscopes
- Bandwidth: 100 MHz
- No. of Channels: Dual Channel
- Sampling Rate: 1GS/s half channel, 500MS/s each channel
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,02,908 (Incl. of all taxes)
₹87,210 + ₹15,698 GST (18%)
MRP was MRP ₹1,28,250
Save 32%
5 Business Days
1
90302000
Download Product LeafletNot available
Download Metravi CatalogueNot available
Download Metravi CatalogueNot available
Highlights
The Metravi MSO-6102E, a modern, new age Mixed Signal Oscilloscope, is a multi-functional instrument for your testing needs. Featuring 100MHz bandwidth, 1Gs/a high sampling rate, dual channels and a high resolution, high contrast, colour TFT LCD with adjustable backlight, the device comes with multiple functions and high specifications, making it reliable and accurate.

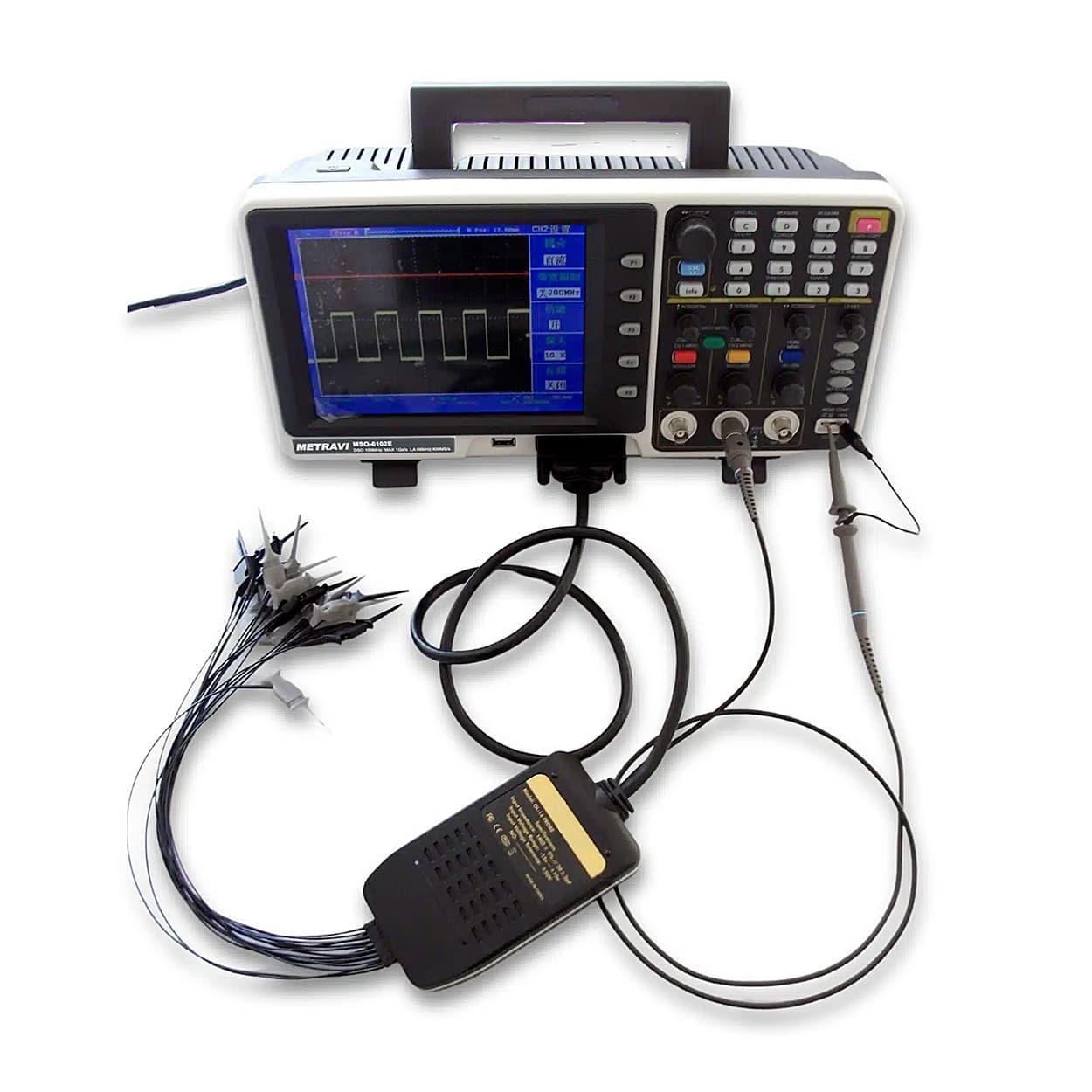

It has a built in Logic Analyzers with 16 input channels, 4M max storage for each channel, multiple trigger modes, convenient data measurement & data search, settings of all kinds of threshold levels.
Applications Include:
- Electronic circuits debugging
- Circuit testing
- Designing & Manufacturing
- Education & Training
- Automobile maintenance & designing
Features:
- Storage and call-out of waveforms
- An automatic setting function provided capable of fast setting
- Multiple-waveform calculation function
- Built-in FFT function
- Implementation of detecting the average and peak values of the waveform
- Digital real-time oscilloscope
- Edge, video, alternate, pulse, and slope triggering function
- Different continuous displaying time

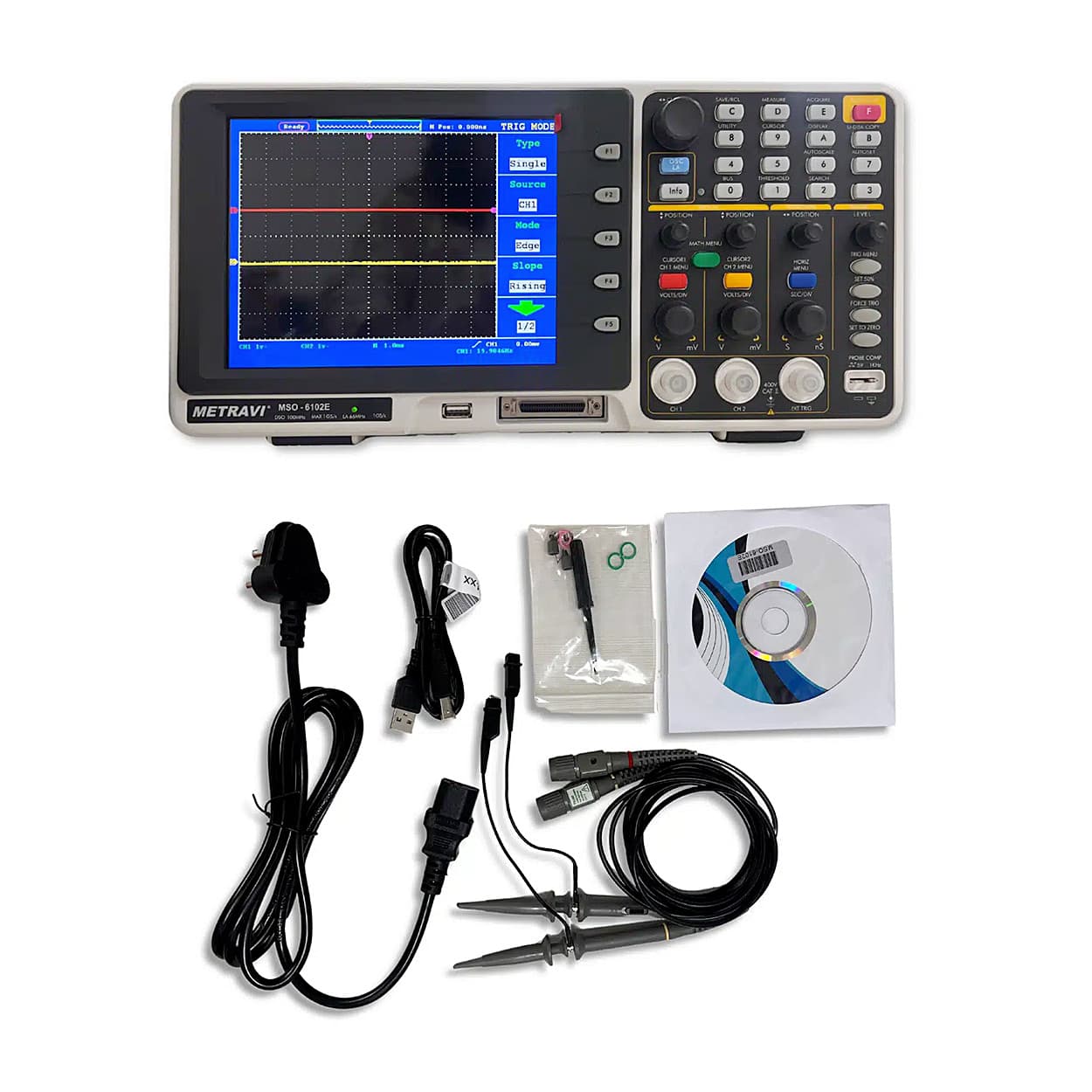

Package Content:
- Passive probe: 2, 1.2 m

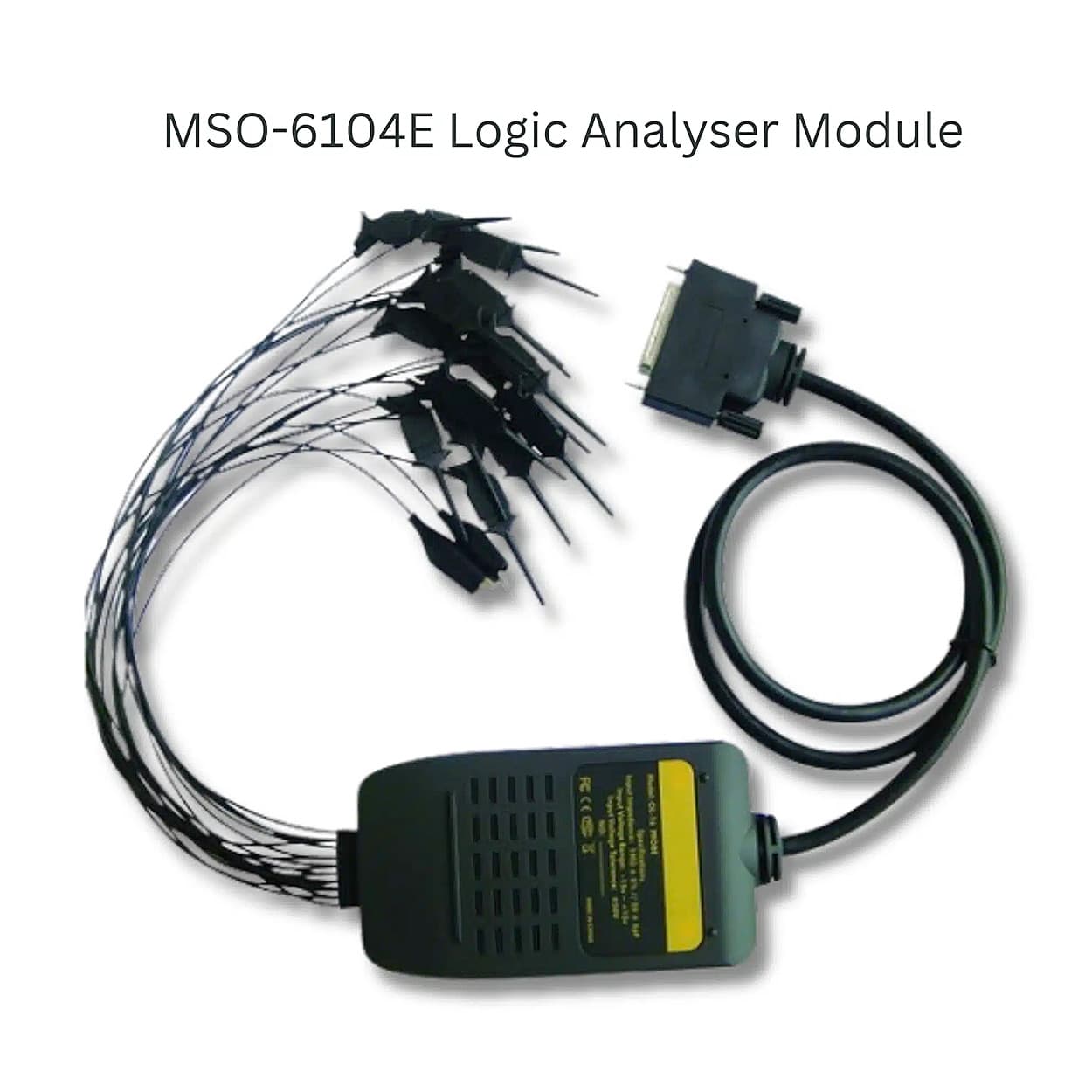

- 1:1 (10:1), OL-16 LA measurement module
- Software CD, USB Cable, Power Cable, User Manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Bandwidth | 100 MHz |
|---|---|
| No. of Channels | Dual Channel |
| Sampling Rate | 1GS/s half channel, 500MS/s each channel |
| Input Coupling System | AC, DC, GND |
| Input Impedance | 1MO±2%, in parallel with 15pF±5pF |
| Probe Attenuation Factor | 1000X, 100X, 10X, 1X |
| Display | 640 x 480 px, 8" Coloured LCD, full colour TFT |
| Power | 100~240 VAC RMS, 50/60Hz, CAT II, Mains Voltage |
| Fuse | 250V, 2A, T grade |
| Storage Environment | -20° to 60°C, less than 90%RH |
| Operating Environment | 0° to 40°C, less than 90%RH |
| Sample Rate | 20 S/s ~ 1GS/s |
| Trigger Position Setting | mid-trigger, Pre-trigger, re-trigger |
| Data System | Binary system, Decimal system, Hex |
| Digital Filter | 0/1/2 optional |
| Logic Analyser Input Signal Range | 30V~30V |
| Logic Analyser Threshold level | 6V~6V |
| Max. Storage | 16K(when only sampling rate is 250MS/s, 500 MS/s, 1GS/s), 4M/Channel |
| Trigger Mode | Bus trigger, Data width queue trigger, Distributed queue trigger, Edge trigger, Pattern trigger, Sequential queue data |
