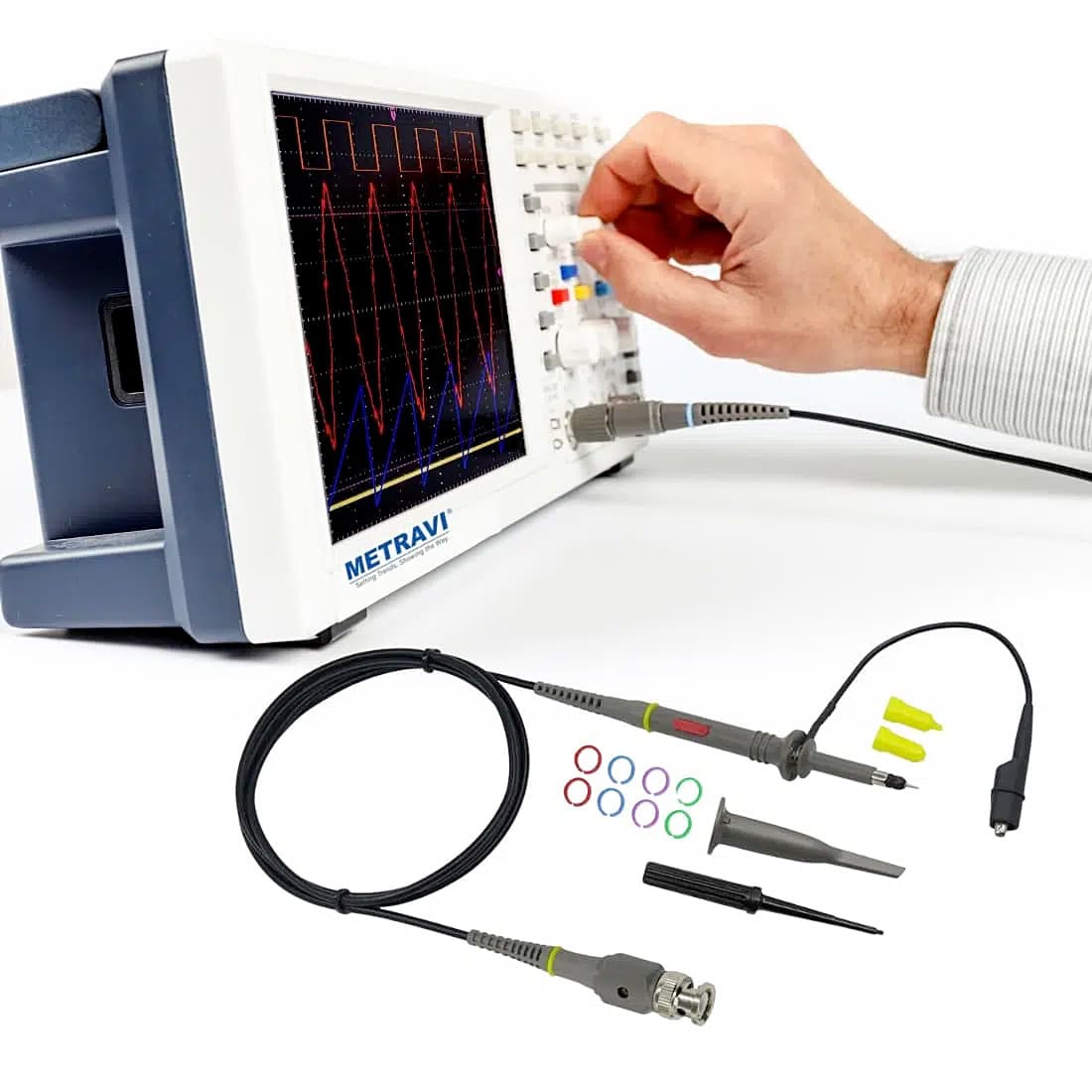

Metravi 250MHz Oscilloscope Probe, OP-250
Roll over the image to zoom in
Key Features
- Product Type: Probes & Accessories
- Weight: 55 g
- Bandwidth: 250MHz
- Rise Time: 1.4ns
- Attenuation Ratio: 100:1
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹7,041 (Incl. of all taxes)
₹5,967 + ₹1,074 GST (18%)
MRP was MRP ₹8,775
Save 32%
5 Business Days
1
90308990
Download Product LeafletNot available
Download Metravi CatalogueNot available
Download Metravi CatalogueNot available
Highlights
OP-250 is a x 100 attenuation modular probe designed to be used with 250MHz oscilloscopes with an input impedance of 100MΩ.
The Probe Consists of Separate Parts:- BNC Male Connector and compensation box
- Probe body tip with R. C. assemblies
- Approx. 1.2m cable
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Bandwidth | 250MHz |
|---|---|
| Rise Time | 1.4ns |
| Attenuation Ratio | 100:1 |
| Input Resistance | 100MW ±12% |
| Input Capacitance | 6pF |
| Max. input voltage | 2KV Working Voltage (VP.P) |
| Compensation Range | 10pF~35pF |
| Cable Length | 110±2cm |
| Safety Standards | IEC61010-031 |
